Summary of Contents for AXIOMTEK GOT107W-319

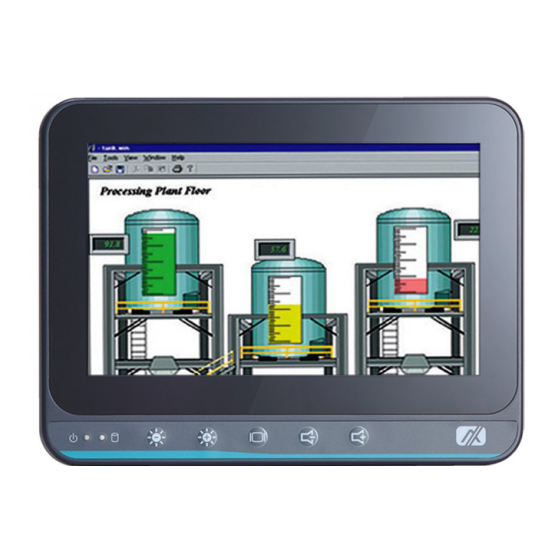

- Page 1 GOT107W-319 All-in-One 7” WSVGA TFT Fanless Touch Panel Computer with Intel® Celeron® Processor N3350 onboard or Intel® Pentium® Processor N4200 User’s Manual...
- Page 2 Disclaimers This manual has been carefully checked and believed to contain accurate information. Axiomtek Co., Ltd. assumes no responsibility for any infringements of patents or rights of any third party, and any liability arising from such use. Axiomtek does not warrant or assume any legal liability or responsibility for the accuracy, completeness or usefulness of any information in this document.
-
Page 3: Safety Precautions
Disconnect the power cords from the GOT107W-319 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the GOT107W-319 series is properly grounded. -
Page 4: Table Of Contents
Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 GOT107W-319 Specifications ............. 2 1.2.1 Main CPU Board ..................2 1.2.2 I/O System ....................2 1.2.3 System Specifications ................. 3 Dimensions ..................4 I/O Outlets .................... - Page 5 3.3.6 SATA Configuration ................... 31 3.3.7 USB Configuration..................32 Chipset Menu ..................33 3.4.1 North Bridge ....................34 3.4.2 South Bridge ....................35 Security Menu ..................36 Boot Menu ..................37 Save & Exit Menu ................38 Chapter 4 Drivers Installation ......39 System ....................
- Page 6 This page is intentionally left blank.
-
Page 7: Chapter 1 Introduction
Industrial-grade product design The GOT107W-319 was adaptively designed to be used in different industrial environments. The GOT107W-319 comes with an IP65-rated front panel and its whole enclosure meets the IPX1 standard. For connecting other devices, the GOT107W-319 also features several interfaces: USB, Ethernet, and RS-232/422/485. -
Page 8: Got107W-319 Specifications
Two RJ45 Giga Ethernet ports Expansion One M.2(E Key) slot for wireless module Storage One mSATA MicroSD Card slot Power connector GOT107W-319: 12 VDC with an external 36W AC adapter and a screw type connector. Introduction... -
Page 9: System Specifications
GOT107W-319 User’s Manual 1.2.3 System Specifications 7” WSVGA (1024 x 600) LCD with LED backlight Projected capacitive multi-touch Fanless heat dissipation design Disk drive housing mSATA MicroSD card slot Net weight 0.7 kg ... -
Page 10: Dimensions
GOT107W-319 User’s Manual Dimensions This diagram shows you dimensions and outlines of the GOT107W-319. This diagram shows you the dimensions of the GOT107W-319 cutout Introduction... -
Page 11: I/O Outlets
Please refer to Figures 1-1 and Table 1-1 for I/O locations at the bottom of the GOT107W-319. Figure 1-1 Front view of the GOT107W-319 Figure 1-1 Bottom view and back view of the GOT107W-319 Table 1-1 Descriptions of I/O functions at the bottom of the GOT107W-319 Function Function Power button... -
Page 12: Packing List
GOT107W-319 x 1 Driver disc x 1 Power adapter & power cord (GOT107W-319-J) AC to DC cable (GOT107W-319-DC) Please contact an Axiomtek distributor immediately if you cannot find the package or any of the above-mentioned items is missing. Introduction... -
Page 13: Hardware And Installation
GOT107W-319 User’s Manual Chapter 2 Hardware and Installation The GOT107W-319 provides rich I/O ports and flexible expansions for users to meet different demands. The section is describing hardware installation, including the following subsections: Jumper and Connector Settings Port Definitions ... -
Page 14: Jumper Settings
GOT107W-319 User’s Manual Diagram 2-2 Solder side of the board 2.1.1 Jumper Settings By making proper jumper settings, users can configure the board SBC87319 to suit the needs of their applications. Table 2-1 shows the default jumper settings for the SBC87319. -
Page 15: Connector Settings
GOT107W-319 User’s Manual 2.1.2 Connector Settings The connectors on the CPU Board allow the CPU Board to connect with other parts of the system. Ensure that all connectors are in place and firmly attached. Table 2-2 lists the function of each connector on the Board SBC87319. - Page 16 GOT107W-319 User’s Manual Speaker connector: CN4 Pin Description SPKOUT_L+ SPKOUT_L- SPKOUT_R+ SPKOUT_R- USB2.0 connector: CN11 Pin Description USB Power USB2.0 connector: CN15 Pin Description Pin Description USB2_PWR USB2_PWR USB_DN USB_DN USB_DP USB_DP Hardware and Installation...
- Page 17 GOT107W-319 User’s Manual DIO connector: CN17 Description Description GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 GPIO8 COM Port connector: COM1 RS232 RS422 RS485 DCD# 485- 485+ DTR# DSR# RTS# CTS# [**] [*]: Signals of COM1 can be RS-232/422/485 by selecting BIOS table.
- Page 18 GOT107W-319 User’s Manual COM Port connector: COM2 RS232 DCD# DTR# DSR# RTS# CTS# AT/ATX switch: SW2 Description Disable auto power on (Default) Enable auto power on Hardware and Installation...
-
Page 19: Mountings - Panel/Wall/Desktop/Vesa
GOT107W-319 User’s Manual Mountings – Panel/Wall/Desktop/VESA There are several mounting ways for the GOT107W-319: Wall, desktop, VESA and panel mountings. 2.2.1 Panel-Mounting (optional) The GOT107W-319 is designed for panel mount application. Step1 Sticks four sealing pads on the edges of the chassis. - Page 20 GOT107W-319 User’s Manual Panel Mount Dimension Hardware and Installation...
-
Page 21: Assembling The Wall-Mount Bracket
GOT107W-319 User’s Manual 2.2.2 Assembling the Wall-Mount Bracket The GOT107W-319 provides VESA mount: 75 x 75 mm. Screw four screws to fix the kit in the back chassis. Step 1 Find out the Screw holes to assemble the wall mount bracket on the back side... -
Page 22: Assembling The Stand
GOT107W-319 User’s Manual 2.2.3 Assembling the stand The GOT107W-319 provides VESA mount: 75 x 75 mm. Screw four screws to fix the stand kit in the back chassis. Find out the Screw holes to assemble the stand kit with 4 screws as red mark shown in... -
Page 23: Storage Installation
GOT107W-319 User’s Manual Storage Installation 2.3.1 mSATA Installation The GOT107W-319 provides a Mini Card slot for users to install mSATA. Please refer to the following instructions for installation: Step 1 Turn off the system, and unplug the power cord. Step 2 Remove the back cover. -
Page 24: Microsd Card Installation
The type of screws used for the Mini Card slot is M12. 2.3.2 MicroSD Card Installation The GOT107W-319 provides one MicroSD card slot for users to install a MicroSD card. Please choose slot 1 when installing an mSATA card and refer to the following instructions and illustrations. -
Page 25: Dram Installation
GOT107W-319 User’s Manual DRAM Installation The GOT107W-319 provides one 204-pin DDR3L SODIMM socket that supports system memory up to 8GB. Please follow steps below to install the memory modules: Step 1 Insert the DRAM into the DIMM socket, and then push it down firmly until it is clipped by the socket. -
Page 26: Wireless Card Installation
GOT107W-319 User’s Manual M.2 Wireless Card Installation The GOT107W-319 provides one Mini card slot for users to install mSATA. Please choose slot 1 when installing an mSATA card and refer to the following instructions and illustrations: Step 1 Open the back cover and locate the M.2 card slot on the main board in the marked area below. -
Page 27: Power Input (Ac To Dc Cable)
GOT107W-319 User’s Manual Power Input (AC to DC cable) Axiomtek provides an optional cable for the DC jack connector to connect to a DC source. It adopts 9~24VDC. Please follow the signs on the power connector to connect to a DC power source. - Page 28 GOT107W-319 User’s Manual This page is intentionally left blank. Hardware and Installation...
-
Page 29: Ami Bios Setup Utility
GOT107W-319 User’s Manual Chapter 3 AMI BIOS Setup Utility This section provides users with detailed descriptions about how to set up basic system configuration through the AMI BIOS setup utility. Navigation Keys The BIOS setup/utility uses a key-based navigation system called hot keys. Most of the BIOS setup utility hot keys can be used at any time during the setup navigation process. -
Page 30: Main Menu
GOT107W-319 User’s Manual Main Menu Figure 3-1 Main menu System Time/Date Use this option to change the system time and date. Highlight System Time or System Date using the up/ down/ left and right arrow keys (see Figure 3-1). Enter new values through the keyboard. -
Page 31: Advanced Menu
GOT107W-319 User’s Manual Advanced Menu Figure 3-2 Advanced menu The Advanced menu allows users to set configurations of the CPU and other system devices. Select any item on the left to go to the sub-menus (as shown in Figure 3-2). -
Page 32: Serial Port Configuration
GOT107W-319 User’s Manual 3.3.1 Serial Port Configuration ► Serial Port 1 Configuration (COM1) ► Serial Port 2 Configuration (COM2) Serial port This option is used to enable or disable serial port COM1/COM2. Device Setting This item specifies the base I/O port address and Interrupt Request (IRQ) address of a serial port. -
Page 33: Hardware Monitor
GOT107W-319 User’s Manual 3.3.2 Hardware Monitor Figure 3-5 shows a screen reflecting the ‘PC Health Status’ of the hardware in real time. Figure 3-5 Entering ‘Hardware Monitor’ AMI BIOS Setup Utility... -
Page 34: Trusted Computing
GOT107W-319 User’s Manual 3.3.3 Trusted Computing This screen is used to select options of the TPM2.0 Configuration, and then change the value of the selected option. A description of the selected item appears on the right side of the screen. -
Page 35: Acpi Settings
GOT107W-319 User’s Manual 3.3.4 ACPI Settings This screen is used to select options of the ACPI Configuration, and then change the value of the selected option. A description of the selected item appears on the right side of the screen. -
Page 36: Cpu Configuration
GOT107W-319 User’s Manual 3.3.5 CPU Configuration Figure 3-7 shows a page of CPU configuration with the item Intel Virtualization Technology highlighted for [Enabled] or [Disabled]. Figure 3-7 Entering ‘CPU Configuration’ AMI BIOS Setup Utility... -
Page 37: Sata Configuration
GOT107W-319 User’s Manual 3.3.6 SATA Configuration This screen allows users to select options for SATA Configuration, and then change the value of the selected option (see Figure 3-8). SATA Controller Highlight this item to set up SATA Controller to be [Enable] or [Disable]. -
Page 38: Usb Configuration
GOT107W-319 User’s Manual 3.3.7 USB Configuration Please see Figure 3-9 to find out what items can be set up under the page of USB Configuration. Figure 3-9 Entering ‘USB Configuration’ AMI BIOS Setup Utility... -
Page 39: Chipset Menu
GOT107W-319 User’s Manual Chipset Menu The Chipset menu gives memory information about the North Bridge and South Bridge (see Figure 3-12). Figure 3-12 Chipset menu AMI BIOS Setup Utility... -
Page 40: North Bridge
GOT107W-319 User’s Manual 3.4.1 North Bridge North Bridge memory information is shown in Figure 3-13. Figure 3-13 Entering ‘North Bridge’ AMI BIOS Setup Utility... -
Page 41: South Bridge
GOT107W-319 User’s Manual 3.4.2 South Bridge South Bridge TXE information is shown in Figure 3-14. Figure 3-14 Entering ‘South Bridge’ AMI BIOS Setup Utility... -
Page 42: Security Menu
GOT107W-319 User’s Manual Security Menu You may set the administrator/user password for the system. Figure 3-15 Security Menu AMI BIOS Setup Utility... -
Page 43: Boot Menu
GOT107W-319 User’s Manual Boot Menu The Boot menu allows users to change boot options of the system. Users can highlight any of the items on the left frame of the screen to go to any particular sub menus (as shown in Figure 3-16). -
Page 44: Save & Exit Menu
GOT107W-319 User’s Manual Save & Exit Menu Figure 3-17 Save & Exit Menu AMI BIOS Setup Utility... -
Page 45: Chapter 4 Drivers Installation
GOT107W-319 User’s Manual Chapter 4 Drivers Installation System The GOT107W-319 supports Windows 10 pro and Windows 10 IoT Enterprise. To facilitate the installation of the system driver, please carefully read the instructions in this chapter before installation. 4.1.1 Windows 10 Insert the driver CD and select the files from step 1 to step 5. - Page 46 GOT107W-319 User’s Manual This page is intentionally left blank. Drivers Installation...
-
Page 47: Appendix A Watchdog Timer & Dio Programming
GOT107W-319 User’s Manual Appendix A Watchdog Timer & DIO Programming About Watchdog Timer Software stability is a major issue in most applications. Some embedded systems are not watched by humans for 24 hours. It is usually too slow to wait for someone to reboot when a computer hangs. - Page 48 GOT107W-319 User’s Manual Begin Begin Next Next Enable and Initialize Enable and Initialize Watchdog Timer Watchdog Timer Next Next Program “A” Program “A” Next Next Disable Watchdog Reset Watchdog Timer Timer Next Next Watchdog Timer & DIO Programming...
-
Page 49: Wdt Sample Program
GOT107W-319 User’s Manual WDT Sample Program Enable WDT 1.Enable configuration: -O 2E 87 -O 2E 87 2. Select Logic device: -O 2E 07 -O 2F 07 3. WDT device enable: -O 2E FA -O 2F 01 4. Set base timer: -O 2E F6 -O 2F 0A Set reset time (Ex.0A:10 Sec/Minute) - Page 50 GOT107W-319 User’s Manual Watchdog Timer & DIO Programming...
- Page 51 GOT107W-319 User’s Manual Watchdog Timer & DIO Programming...
