Sherman digitec Cutter 110 User Manual page 5

Inverter plasma cutting

Table of Contents

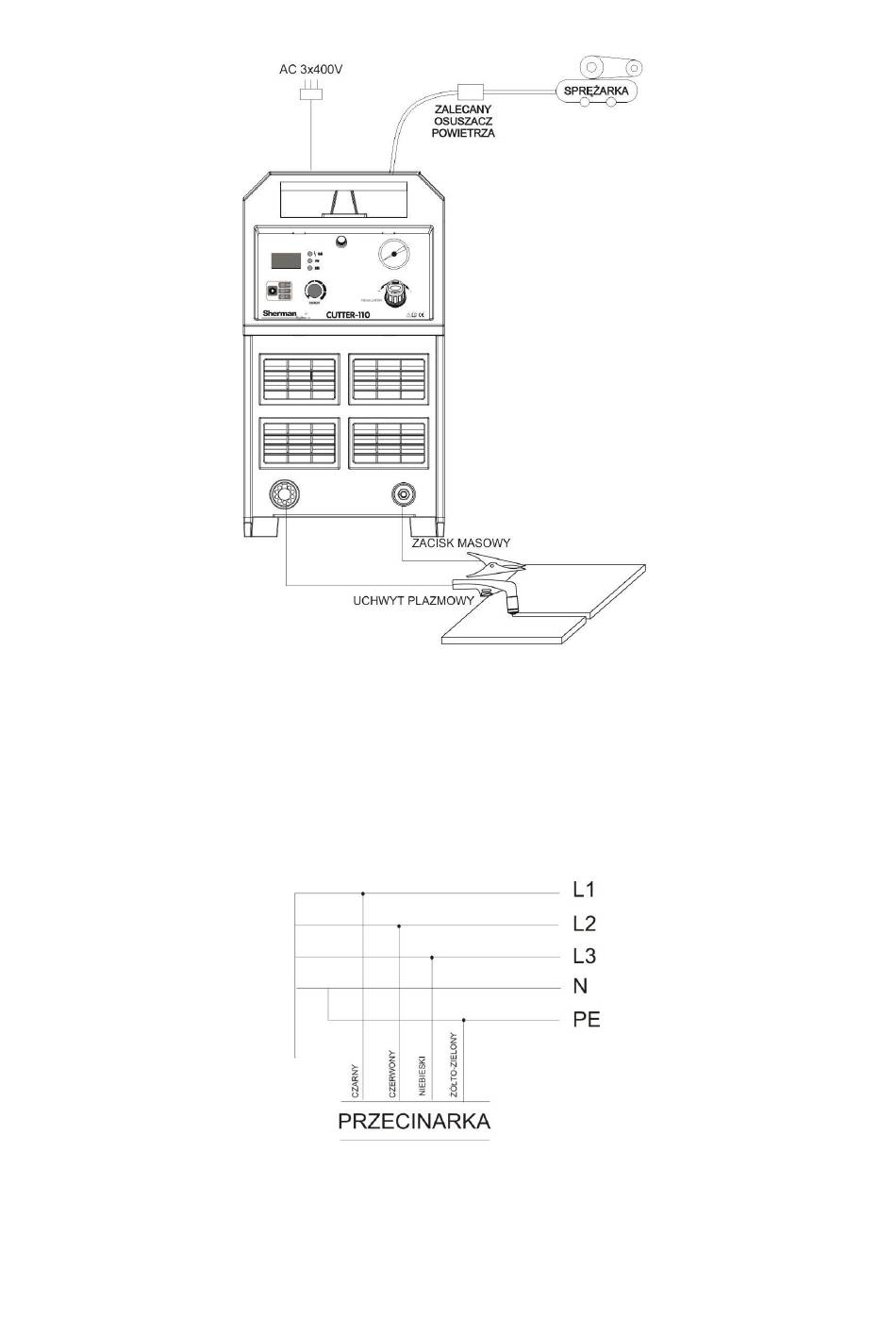

Fig. 1. Scheme of connecting devices

6.1 Connecting the power supply to the mains plug

Yellow-green wire (conductor) to be connected to the mains plug in position marked "PN" or "N".

Wires black, red, blue are power supply lines to the device (phase) and to be connected to the mains plug at the place indicated by symbols L1, L2,

L3 or R1, S2, T3. The sequence of the phase conductors to plug into the marked space is arbitrary and does not affect the operation.

7. CONNECTION TO THE INSTALLATION OF AIR

Inside the machine is a service unit with filter-dryer. Filter-dryer equipped with an automatic drain valve, whose outlet is located in the bottom of the

device. Draining the filter-dryer takes place automatically after being cut off (disconnected) from the pneumatic system and possible pressure drop to

"0". The device should be placed in such a way on the substrate allowed to free outflow of liquid. The appearance of the effluent
