Schmalz VacuMaster Multi Series Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
J. Schmalz GmbH

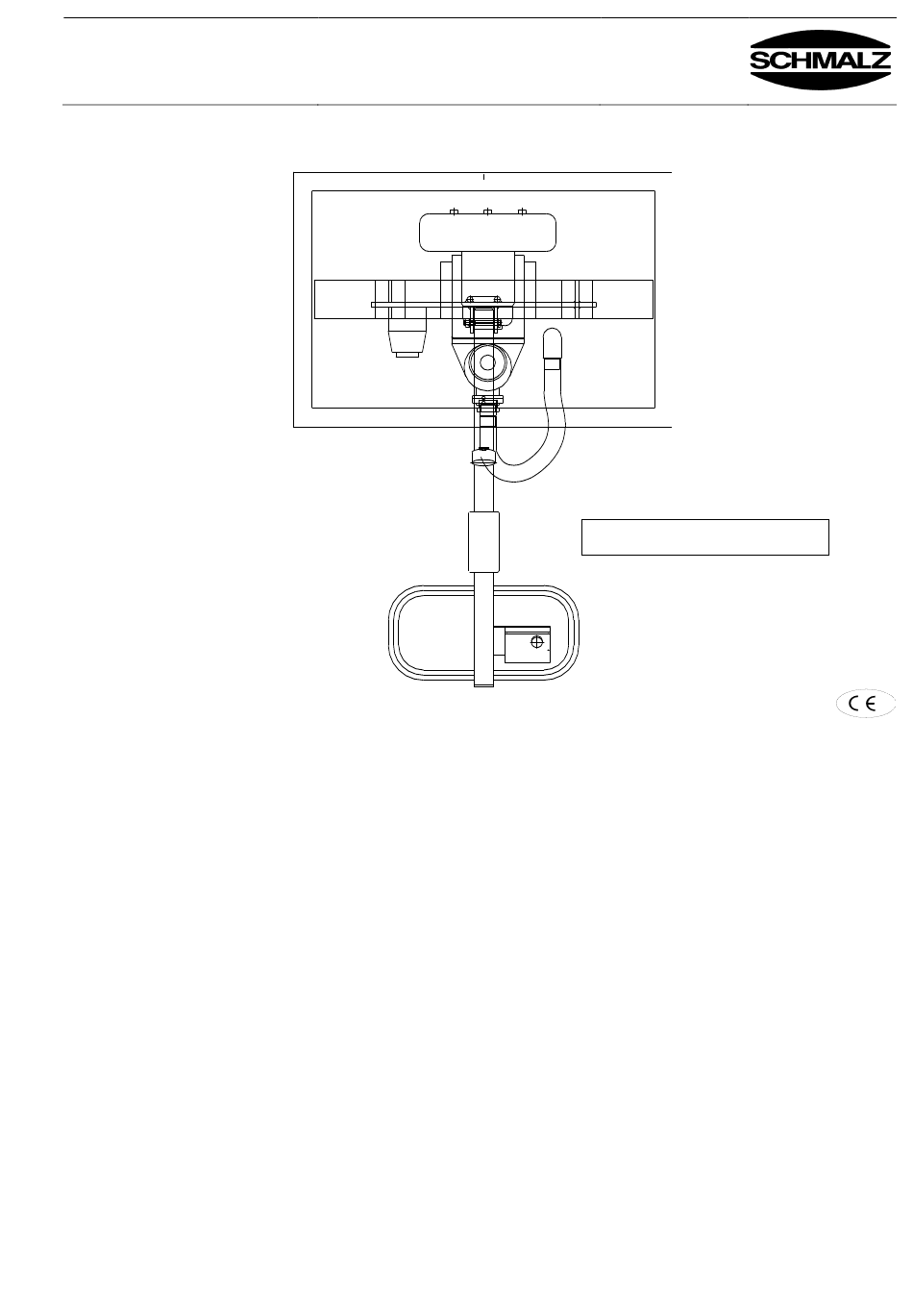

Operating Manual
Aacher Straße 29
BA 30.30.01.00221-00
D - 72293 Glatten
Tel +49 +7443 / 2403 - 0
Fax +49 +7443 / 2403 - 259
V
M
Multi-Serie
ACU
ASTER
http://www.schmalz.de
e-mail: schmalz@schmalz.de
V
M
M
400-1
ACU
ASTER
ULTI
Please keep this manual for future use
Status 03.2013
Page 1 / 18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VacuMaster Multi Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schmalz VacuMaster Multi Series

Summary of Contents for Schmalz VacuMaster Multi Series

  • Page 1 J. Schmalz GmbH Operating Manual Aacher Straße 29 BA 30.30.01.00221-00 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de 400-1 ASTER ULTI Please keep this manual for future use Status 03.2013...

  • Page 2: Table Of Contents

    J. Schmalz GmbH Operating Manual Aacher Straße 29 BA 30.30.01.00221-00 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de Table of Contents Safety Instructions for the Company...
  • Page 3 J. Schmalz GmbH Operating Manual Aacher Straße 29 BA 30.30.01.00221-00 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de Appendix Operating Manual Blower Gebl K10 DG 14...

  • Page 4: Safety

    J. Schmalz GmbH Operating Manual Chapter 1 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Safety Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de Safety 1.1 Instructions for the Lifting devices of the series V...

  • Page 5: Intended Use

    J. Schmalz GmbH Operating Manual Chapter 1 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Safety Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de 1.5 Intended Use Lifting devices series V...

  • Page 6: Checking The Safety Devices

    J. Schmalz GmbH Operating Manual Chapter 1 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Safety Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de 1.12 Checking the safety The lifting device is equipped with following guards: ...

  • Page 7: Technical Data

    J. Schmalz GmbH Operating Manual Chapter 2 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Technical Data Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de Technical Data Type VM M...

  • Page 8: Description

    J. Schmalz GmbH Operating Manual Chapter 3 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Description Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de Description 3.1 Components of the Lifting Device 400/300-90°-2...
  • Page 9 J. Schmalz GmbH Operating Manual Chapter 3 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Description Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de 400/300-90°-8 ULTI The parts with safety function appear in bold type Pos.

  • Page 10: Blower With Reversing Device

    J. Schmalz GmbH Operating Manual Chapter 3 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Description Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de 3.2 Blower with The blower produces the vacuum for the lifting device. It is fitted with a silencer Reversing Device each on the sucking an the exhaust side.

  • Page 11: Installation

    J. Schmalz GmbH Operating Manual Chapter 4 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Installation Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de Installation 4.1 General The device must be installed and maintained by qualified personnel, mechanics and electricians.

  • Page 12: Safety

    J. Schmalz GmbH Operating Manual Chapter 5 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Operation Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de Safety 5.1 Safety Instructions Local safety requirements are fully applicable. The following safety instructions are complimentary to the rules in force and do not supersede the latter: ...

  • Page 13: Releasing Loads

    J. Schmalz GmbH Operating Manual Chapter 5 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Operation Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de  5.4 Releasing Loads Lower the load to a safe and vacant, level surface. When placing the load vertically, make sure it is properly guided and cannot slip away or tip over.

  • Page 14: Troubleshooting

    J. Schmalz GmbH Operating Manual Chapter 6 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Trouble Shooting Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de Troubleshooting The device must be installed and maintained by qualified personnel, mechanics and electricians.

  • Page 15: General

    J. Schmalz GmbH Operating Manual Chapter 7 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Maintenance Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de Maintenance 7.1 General The device must be installed and maintained by qualified personnel, mechanics and electricians.

  • Page 16: Adjusting The Spring-Pressure Brake

    J. Schmalz GmbH Operating Manual Chapter 7 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Maintenance Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de  7.4 Adjusting the spring- Remove the actuator cover M14.

  • Page 17: Leak Test

    J. Schmalz GmbH Operating Manual Chapter 7 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Maintenance Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de e-mail: schmalz@schmalz.de 7.8 Leak Test Check the device for leaks once per month.

  • Page 18: Notes On The Nameplate

    J. Schmalz GmbH Operating Manual Chapter 8 / 9 Aacher Straße 29 D - 72293 Glatten Tel +49 +7443 / 2403 - 0 Nameplate / Spare and Fax +49 +7443 / 2403 - 259 Multi-Serie ASTER http://www.schmalz.de consumable parts e-mail: schmalz@schmalz.de 8 Notes on the On the nameplate the main data for the lifting device is indicated.
