Overview

The Extreme 4 makes users more efficient, filling bottles and buckets with ease and quickness. Some of
the great design features include:
A single dial for 8 different dilution points
Multi-point locking system for Extreme security
Integrated ASSE approved backflow prevention

Warnings

All installations must conform to
local plumbing codes and use
approved backflow prevention
devices. A pressure indicating tee is
to be installed with existing faucets
according to local plumbing codes in the state of
Wisconsin and any other state that requires the use
of a pressure indicating tee
Instruction Sheet Contents
Category
Package Contents / Required Tools
Operational Requirements
Installation / Preparation
Operation
Warranty Information
I-1091
Rev. C-40014

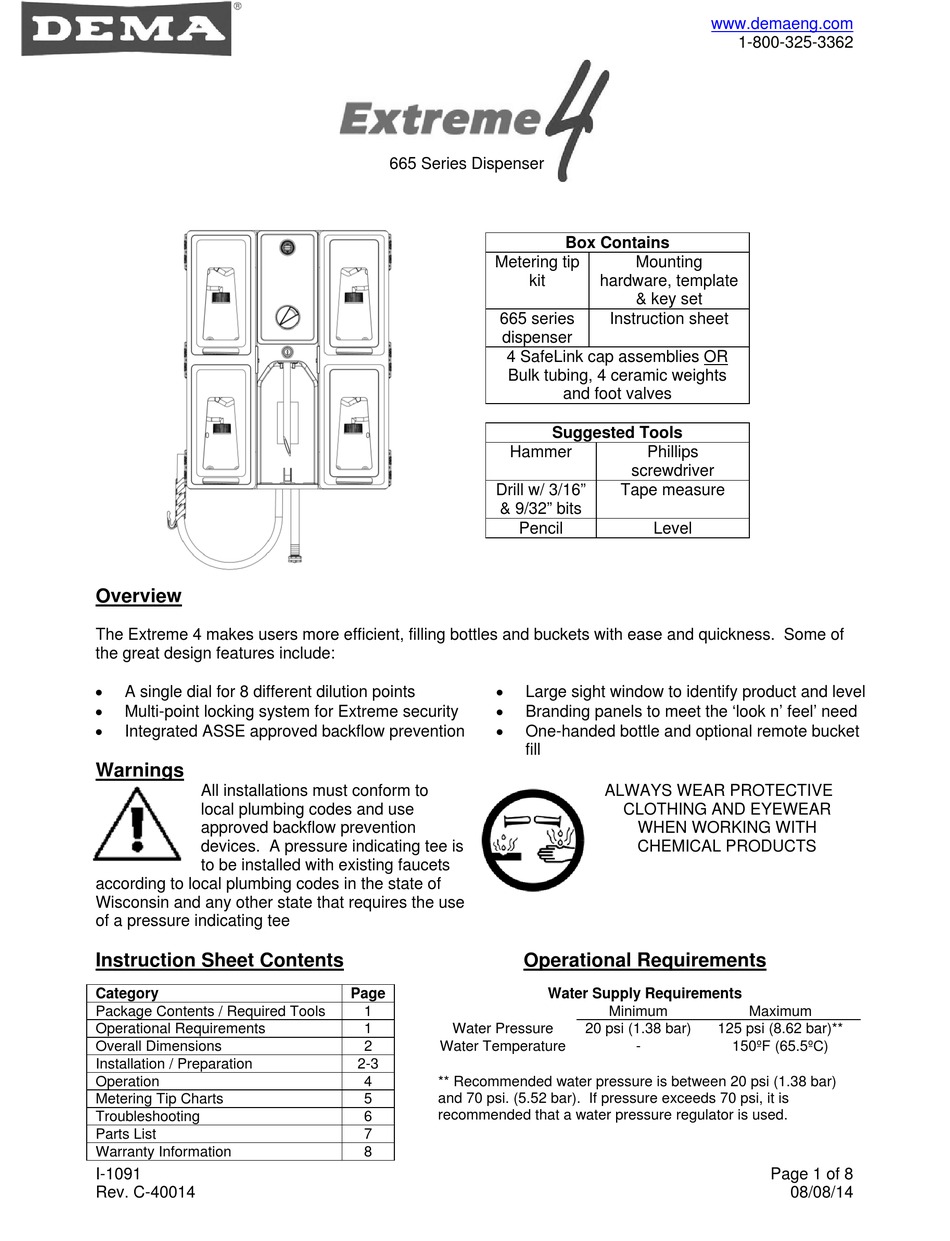

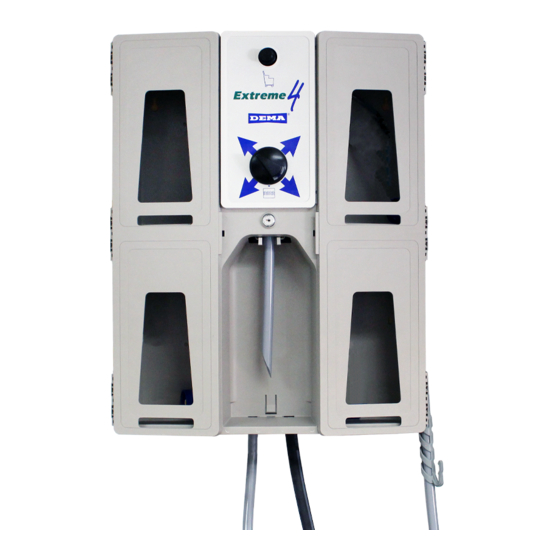

665 Series Dispenser
Metering tip
kit
665 series
dispenser
4 SafeLink cap assemblies OR
Bulk tubing, 4 ceramic weights
Hammer
Drill w/ 3/16"
& 9/32" bits
Pencil
Large sight window to identify product and level
Branding panels to meet the 'look n' feel' need
One-handed bottle and optional remote bucket
fill
Operational Requirements
Page
1
1
Water Pressure
2
Water Temperature
2-3
4
** Recommended water pressure is between 20 psi (1.38 bar)
and 70 psi. (5.52 bar). If pressure exceeds 70 psi, it is
5
recommended that a water pressure regulator is used.
6
7
8
www.demaeng.com
Box Contains
Mounting
hardware, template
& key set
Instruction sheet
and foot valves
Suggested Tools
Phillips
screwdriver
Tape measure
Level
ALWAYS WEAR PROTECTIVE
CLOTHING AND EYEWEAR
WHEN WORKING WITH
CHEMICAL PRODUCTS
Water Supply Requirements
Minimum
20 psi (1.38 bar)
125 psi (8.62 bar)**
-
1-800-325-3362
Maximum
150ºF (65.5ºC)
Page 1 of 8
08/08/14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 665 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for DEMA 665 Series

  • Page 1 1-800-325-3362 665 Series Dispenser Box Contains Metering tip Mounting hardware, template & key set 665 series Instruction sheet dispenser 4 SafeLink cap assemblies OR Bulk tubing, 4 ceramic weights and foot valves Suggested Tools Hammer Phillips screwdriver Drill w/ 3/16”...
  • Page 2 www.demaeng.com 1-800-325-3362 Overall Dimensions Installation & Preparation 1. Identify desired location of dispenser. Remove cardboard mounting template from packaging, place against wall and mark hole locations using the template as a guide. [For accuracy, use level with template to ensure the dispenser is level on the wall] 2.
  • Page 3 www.demaeng.com 1-800-325-3362 Installation & Preparation Cont’d Steps 5 through 7 explain how to install metering tips. Metering tips will be installed at the two check valves located in each compartment. Check valves to bucket fill have a plastic ring, and check valves for bottle fill do not.
  • Page 4 www.demaeng.com 1-800-325-3362 Operation Chemical Selector Dial (Figure 6) 1. Turn the chemical selector dial to the desired chemical position, indicated by the directional arrow 2. Dispense chemical by either activating the bottle fill lever or bucket fill button (or remote fill trigger) 3.
  • Page 5 www.demaeng.com 1-800-325-3362 Metering Tip Charts Table 1: Extreme 4 Metering Tips (Provided) 1 GPM Flow Rate Proportioner 4 GPM Flow Rate Proportioner Metering Tip Color Oz./gal ml/L Ratio : 1 Oz./gal ml/L Ratio : 1 1.25 9.80 0.30 2.34 Orange 1.70 13.33 0.40...
  • Page 6 www.demaeng.com 1-800-325-3362 Troubleshooting Symptom Probable Cause Remedy Proportioner 1. Insufficient water supply pressure. 1. 20 PSI is the minimum allowable fails to draw 2. Safelink cap has chemical build-up pressure. chemical (if installed). 2. Soak in hot water to clean. properly.
  • Page 7 www.demaeng.com 1-800-325-3362 Parts list Part No. Description Parts Not Shown 14-3-3 Cover plate (Button operated) Part No. Description Cover plate (Remote gun 14-3-2 66-21K Keyset operated) 14-2-3 Door – Left side 100-15K-EX4 Metering Tip Kit 14-2-4 Door – Right side 10-57-2 Drip Tray 10-47...
  • Page 8 “O”-rings, diaphragms, PVC tubing, and gaskets are considered expendable and are not covered under warranty. This warranty is extended only to the original buyer of DEMA products. If products are altered or repaired without prior approval of DEMA, this warranty is void.
