DEMA Engineering Company
Titan II Installation and
Programming Training
ENTER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Titan II and is the answer not in the manual?

Questions and answers

Related Manuals for DEMA Titan II

Summary of Contents for DEMA Titan II

  • Page 1 DEMA Engineering Company Titan II Installation and Programming Training ENTER...

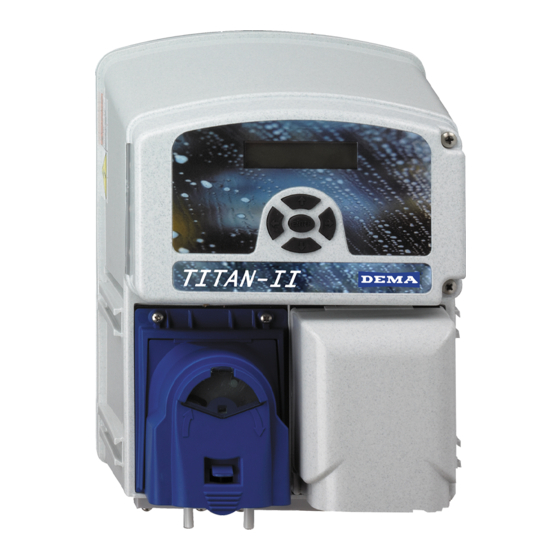

  • Page 2 Titan II Premium Warewash Dispenser • Unique auto switchover mode designed to reduce service calls  Automatically switches to probeless mode if the probe fails to function • Can be set up in 3 different modes - concentration, probeless or auto switchover •...
  • Page 3  Two product – liquid/liquid or liquid/dry  Three product –all liquid or liquid/liquid/dry • 100-260VAC 50/60Hz main power (constant power) • 24-480VAC trigger signals T.812.DL • DEMA solenoid for dry detergent control • Rinse pump output 0.5 oz./min ENTER (16ml / min) T.813.DLL...

  • Page 4: Wall Mounting

    Wall Mounting • Unpack the Titan • Remove mounting plate from Titan • Attach mounting plate to wall • Install Titan on the Remove screw and slide plate down mounting plate ENTER • Replace screw...
  • Page 5 Wall Mounting • Follow instructions on Mounting Bracket ENTER...

  • Page 6: Mounting Considerations

    Mounting Considerations • Choose a location for Titan that’s convenient for operation and chemical locations • Distance from electrical connections for Titan • Flat vertical surface away from splashing and steam originating from machine • Titan should be installed in an easily observed and serviceable location ENTER...

  • Page 7: Electrical Connection

    Electrical Connection • Connect main power and triggers to the dish machine following manufacturers recommendations • Constant main power should be supplied at 100 - 250VAC • Connect detergent and rinse triggers to dish machine 24 – 480VAC ENTER...

  • Page 8: Wiring Configuration

    Wiring Configuration BROWN – Wash Trigger (HOT) WHITE – Wash Trigger (RETURN) BLACK – Rinse Trigger (HOT) – Rinse Trigger (RETURN) GREEN – Earth Ground ENTER WARNING: For safety purposes disconnect main power to the dish machine. Connect power to the Titan per the dish machine manufacturer’s recommendations.
  • Page 9 Installation of Bulkhead Fitting • Install detergent bulkhead fitting to dish machine wash tank • Install above the water line in the tank • Bulkhead fitting should be directly above concentration Probe • Gasket should be installed externally to the wash tank ENTER...
  • Page 10 Detergent & Plumbing Connections • Install Viking detergent bowl (see separate instructions) • From water supply run ¼” OD copper tubing to inlet fitting of Titan detergent valve • From outlet fitting of Titan detergent valve run ¼” OD copper tubing to inlet of Viking bowl vacuum breaker •...
  • Page 11 Rinse & Sanitizer Connections • Locate injection points on rinse manifold of dish machine • Install supplied check valve for rinse and sanitizer  Stainless steel check valve for rinse  Kynar (plastic) check valve for sanitizer • Cut the ¼” OD vinyl tubing to length required to reach from the rinse /sanitizer chemicals to the Titan pumps...
  • Page 12 Installation of Conductive Probe • The Probe should be installed on lower half of the wash tank • The probe should be installed directly below chemical injection when possible • Remove electrical ring connectors from probe and crimp conductors of probe cable •...
  • Page 13 Typical Titan II Set Up ENTER...
  • Page 14 Titan II Button Functions ENTER button UP arrow accepts values increases entered value or moves cursor LEFT arrow RIGHT arrow moves cursor moves cursor to the left to the right ENTER DOWN arrow decreases value or moves cursor down...
  • Page 15 Titan II Programming • Separate sections for auto switchover, probeless, and concentration mode ENTER...

  • Page 16: Idle Screen

    Idle Screen • Idle / Default screen shown when unit is not being programmed • Press enter to advance to priming and programming functions • Unit will return to this screen during programming if long delays are taken during programming ENTER •...

  • Page 17: Language Screen

    Language Screen • Press ENTER to modify language • Use UP & DOWN arrows to select between 4 languages English, Spanish, Portuguese and French • Press ENTER to select desired language • Press DOWN arrow to ENTER advance to other screens...
  • Page 18 Detergent Prime • 1 screen seen after the language screen • Press enter to start & stop pump priming • Press DOWN arrow to advance to other screens ENTER...
  • Page 19 Rinse Prime • Press enter to start & stop pump priming • Press DOWN arrow to advance to other screens ENTER...
  • Page 20 Sanitizer Prime • Press enter to start & stop pump priming • Press DOWN arrow to advance to other screens ENTER...
  • Page 21 Detergent Information Screen •  P = Probeless mode  C = Concentration mode + = Active feeding - = Active trigger •  Detergent set point in concentration (probe) mode  Can be used as low level alarm for probeless mode ENTER •...
  • Page 22 Detergent Information Screen • DET Probeless Mode  = Initial charge  = Top off recharge  = Dwell cycle • DET Concentration Mode  = Received trigger & adding product  ENTER = Received trigger, not adding product...
  • Page 23 Rack Count • Displays number of rack counts registered • Rack counts are generated by rinse length in conveyor mode or machine operations in door mode • Can be reset in programming mode • Press DOWN arrow to advance to other screens ENTER...
  • Page 24 Descale • Allows for a dish machine de-scaling process • Press enter to disable function of Titan II • Detergent and rinse will not respond to trigger signals • Press enter to end de-scale mode (re-activate to full function) ENTER...

  • Page 25: New Program

    New Program • Press enter to begin new program ENTER...
  • Page 26 Auto Switchover Mode • Allows automatic switching from concentration to probeless and back due to typical probe issues • Proper set up of both concentration and probeless is required for Titan II to function correctly ENTER...
  • Page 27 Auto Switchover Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between auto switchover, concentration and probeless modes • Press ENTER when auto switchover is displayed • Press UP or DOWN arrow ENTER to advance to other screens...
  • Page 28 Auto Switchover Mode – Switchover Alarm • Press ENTER to modify setting • Use UP or DOWN arrows to change between inactive or active • Press ENTER when desired mode is displayed • Press UP or DOWN arrow to advance to other ENTER screens...
  • Page 29 Auto Switchover Mode – Switch Message • Press ENTER to modify message • Default message is service dispenser soon • Up to 16 characters per line and 2 lines • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between characters •...
  • Page 30 Auto Switchover Mode – Machine Type • Press ENTER to modify setting • Use UP or DOWN arrows to change between Conveyor and Door • Press ENTER when desired machine type is displayed • Press UP or DOWN arrow ENTER to advance to other screens...
  • Page 31 Auto Switchover Mode – Trigger Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between Detergent/Rinse, Detergent Only or Rinse Only • Press ENTER when desired mode is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 32 Auto Switchover Mode – Dirty H2O Alarm • Press ENTER to set to active or inactive • Sounds alarm to notify wash tank water needs to be changed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 33 Auto Switchover Mode – Dirty Water Time • Press ENTER to modify time (hrs. min.) until alarm sounds • Countdown starts with first wash trigger and does not stop or pause • Use LEFT & RIGHT arrows to move between characters •...
  • Page 34 Auto Switchover Mode – Company Name • Up to 16 characters • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between characters • Use UP & DOWN arrows to adjust each character • Press ENTER when desired name is displayed •...
  • Page 35 Auto Switchover Mode – Alarm Volume • Sets volume of audible detergent alarm • Press ENTER to modify setting • Use UP or DOWN arrows to adjust volume • Press ENTER when desired volume is reached • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 36 • Press ENTER to modify setting • Use UP & DOWN arrows to adjust concentration set point (DEMA units) • Press ENTER when desired setting is displayed ENTER • Press UP or DOWN arrow to advance to other screens...
  • Page 37 Auto Switchover Mode – Feed Rate • Controls how quickly set point is reached, high feed rate can lead to over shooting • Press ENTER to modify setting • Use UP & DOWN arrows to adjust feed rate • Press ENTER when desired setting is displayed •...
  • Page 38 Auto Switchover Mode – Alarm Delay • Amount of time before detergent alarm sounds • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes / seconds) • Press ENTER when desired setting is displayed •...
  • Page 39 Auto Switchover Mode – Feed Limit • Limits the amount of time that the detergent pump will run without reaching set point • Press ENTER to modify setting • Use UP & DOWN arrows to adjust feed limit in minutes and seconds •...
  • Page 40 Auto Switchover Mode – Recharge Time • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes & seconds) • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 41 Auto Switchover Mode – Dwell Time • For conveyor machine type only • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes / seconds) • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 42 Auto Switchover Mode – Dead Cycles • For door machine type only • Press ENTER to modify setting • Use UP & DOWN arrows to adjust number of cycles between recharges • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 43 Auto Switchover Mode – Initial Charge • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes / seconds) • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 44 Auto Switchover Mode – Charge Clock • Defines time between trigger signals for an initial charge • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (hours / minutes) • Press ENTER when desired setting is displayed •...
  • Page 45 Auto Switchover Mode – Rinse Speed • Adjust rinse pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 46 • For conveyor machine type only • Rinse length should match the amount of rinse time per rack • Allows Titan II to count racks on a conveyor machine • Use UP & DOWN arrows to adjust rinse length • Press ENTER when desired...
  • Page 47 Auto Switchover Mode – Rinse Delay • For door machine only  Adjust delay time to start rinse pump • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse delay • Press ENTER when desired rinse delay is displayed ENTER •...
  • Page 48 Auto Switchover Mode – Rinse Limit • For door machine only • Sets maximum rinse pump run time • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse limit (seconds) • Press ENTER when desired rinse limit is displayed •...
  • Page 49 Auto Switchover Mode – Sanitizer Speed • Adjust sanitizer pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust sanitizer speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 50 Auto Switchover Mode – Sanitizer Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between Run with Rinse or Run with Detergent • Press ENTER when desired mode is displayed • Press UP or DOWN arrow ENTER to advance to other screens...
  • Page 51 Auto Switchover Mode – Enter New Code • Sets programming password (4 numbers) • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between numbers • Use UP & DOWN arrows to at adjust each number •...
  • Page 52 Auto Switchover Mode – End Programming • Press enter to exit programming ENTER...
  • Page 53 Probeless Mode Programming • Start of probeless programming • Section for dedicated probeless dispenser set up ENTER...
  • Page 54 Probeless Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between modes • Press ENTER when auto switchover is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 55 Probeless Mode - Machine Type • Press ENTER to modify setting • Use UP or DOWN arrows to change between Conveyor and Door • Press ENTER when desired machine type is displayed • Press UP or DOWN arrow ENTER to advance to other screens...
  • Page 56 Probeless Mode – Trigger Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between Detergent/Rinse, Detergent Only or Rinse Only • Press ENTER when desired mode is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 57 Probeless Mode – Dirty H2O Alarm • Press ENTER to set to active or inactive • Sounds alarm to notify wash tank water needs to be changed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 58 Probeless Mode – Dirty Water Time • Press ENTER to modify time (hrs. min.) until alarm sounds • Countdown starts with first wash trigger and does not stop or pause • Use LEFT & RIGHT arrows to move between characters •...
  • Page 59 Probeless Mode – Company Name • Up to 16 characters • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between characters • Use UP & DOWN arrows to at adjust each character • Press ENTER when desired name is displayed •...
  • Page 60 Probeless Mode – Alarm Volume • Sets volume of audible detergent alarm • Press ENTER to modify setting • Use UP or DOWN arrows to adjust volume • Press ENTER when desired volume is reached • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 61 Probeless Mode – Recharge Time • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes & seconds) • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 62 Probeless Mode – Dwell Time • For conveyor machine type only • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes / seconds) • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 63 Probeless Mode – Dead Cycles • For door machine type only • Press ENTER to modify setting • Use UP & DOWN arrows to adjust number of cycles between recharges • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 64 Probeless Mode – Initial Charge • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes / seconds) • Press ENTER when desired setting is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 65 Probeless Mode – Charge Clock • Defines time between trigger signals for an initial charge • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (hours / minutes) • Press ENTER when desired setting is displayed •...
  • Page 66 Probeless Mode – Detergent Alarm • Press ENTER to set to active or inactive • Sounds alarm to notify out of detergent condition • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 67 Probeless Mode – Detergent Type • Use manual when alarm option with probe is used • Press ENTER to set to Manual • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 68 Probeless Mode – Alarm Set Point • Press ENTER to modify alarm set point • Alarm set point is a probe reading to alarm a low detergent condition • Alarm set point should be approx. half the difference between a clean and a properly titrated tank of water ...
  • Page 69 Probeless Mode – Rinse Speed • Adjust rinse pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 70 Probeless Mode – Rinse Delay • For door machine only • Adjust delay time to start rinse pump • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse delay • Press ENTER when desired rinse delay is displayed •...
  • Page 71 Probeless Mode – Rinse Length • Used to count racks in conveyor mode OR can be used to call for initial charge in door mode • Rinse length should match the amount of rinse time per rack • Use UP & DOWN arrows to adjust rinse length •...
  • Page 72 Probeless Mode – Rinse Limit • For door machine only • Sets maximum rinse pump run time • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse limit (seconds) • Press ENTER when desired rinse limit is displayed •...
  • Page 73 Probeless Mode – Sanitizer Speed • Adjust sanitizer pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust sanitizer speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 74 Probeless Mode – Sanitizer Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between Run with Rinse or Run with Detergent • Press ENTER when desired mode is displayed • Press UP or DOWN arrow ENTER to advance to other screens...
  • Page 75 Probeless Mode – Enter New Code • Sets programming password (4 numbers) • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between numbers • Use UP & DOWN arrows to at adjust each number • Press ENTER when desired code is displayed •...
  • Page 76 Probeless Mode – End Programming • Press enter to exit programming ENTER...
  • Page 77 Concentration Mode Programming • Start of concentration programming • Section for a dedicated concentration (probe) machine set up ENTER...
  • Page 78 Concentration Mode – Detergent Control Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between modes • Press ENTER when auto switchover is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 79 Concentration Mode - Machine Type • Press ENTER to modify setting • Use UP or DOWN arrows to change between Conveyor and Door • Press ENTER when desired machine type is displayed • Press UP or DOWN arrow ENTER to advance to other screens...
  • Page 80 Concentration Mode – Trigger Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between Detergent/Rinse, Detergent Only or Rinse Only • Press ENTER when desired mode is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 81 Concentration Mode – Dirty H2O Alarm • Press ENTER to set to active or inactive • Sounds alarm to notify wash tank water needs to be changed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 82 Concentration Mode – Dirty Water Time • Press ENTER to modify time (hrs. min) until alarm sounds • Countdown starts with first wash trigger and does not stop or pause • Use LEFT & RIGHT arrows to move between characters •...
  • Page 83 Concentration Mode – Company Name • Up to 16 characters • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between characters • Use UP & DOWN arrows to at adjust each character • Press ENTER when desired name is displayed •...
  • Page 84 Concentration Mode – Alarm Volume • Sets volume of audible detergent alarm • Press ENTER to modify setting • Use UP or DOWN arrows to adjust volume • Press ENTER when desired volume is reached • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 85 • Press ENTER to modify setting • Use UP & DOWN arrows to adjust concentration set point (DEMA units) • Press ENTER when desired setting is displayed ENTER • Press UP or DOWN arrow to advance to other screens...
  • Page 86 Concentration Mode – Feed Rate • Controls how quickly set point is reached, high feed rate can lead to over shooting • Press ENTER to modify setting • Use UP & DOWN arrows to adjust feed rate • Press ENTER when desired setting is displayed •...
  • Page 87 Concentration Mode – Alarm Delay • Amount of time before detergent alarm sounds • Press ENTER to modify setting • Use UP & DOWN arrows to adjust time setting (minutes / seconds) • Press ENTER when desired setting is displayed •...
  • Page 88 Concentration Mode – Feed Limit • Limits the amount of time that the detergent pump will run without reaching set point • Press ENTER to modify setting • Use UP & DOWN arrows to adjust feed limit in minutes and seconds •...
  • Page 89 Concentration Mode – Rinse Speed • Adjust rinse pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 90 • For conveyor machine type only • Rinse length should match the amount of rinse time per rack • Allows Titan II to count racks on a conveyor machine • Use UP & DOWN arrows to adjust rinse length • Press ENTER when desired...
  • Page 91 Concentration Mode – Rinse Delay • For door machine only • Adjust delay time to start rinse pump • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse delay • Press ENTER when desired rinse delay is displayed •...
  • Page 92 Concentration Mode – Rinse Limit • For door machine only • Sets maximum rinse pump run time • Press ENTER to modify setting • Use UP & DOWN arrows to adjust rinse limit (seconds) • Press ENTER when desired rinse limit is displayed •...
  • Page 93 Concentration Mode – Sanitizer Speed • Adjust sanitizer pump speed • Press ENTER to modify setting • Use UP & DOWN arrows to adjust sanitizer speed • Press ENTER when desired speed is displayed • Press UP or DOWN arrow to advance to other screens ENTER...
  • Page 94 Concentration Mode – Sanitizer Mode • Press ENTER to modify setting • Use UP or DOWN arrows to change between Run with Rinse or Run with Detergent • Press ENTER when desired mode is displayed • Press UP or DOWN arrow ENTER to advance to other screens...
  • Page 95 Concentration Mode – Enter New Code • Sets programming password (4 numbers) • Press ENTER to modify setting • Use LEFT & RIGHT arrows to move between numbers • Use UP & DOWN arrows to at adjust each number • Press ENTER when desired code is displayed •...
  • Page 96 Concentration Mode – End Programming • Press ENTER to exit programming ENTER...
  • Page 97 System Access - Editing Existing Programming • The following outlines the order of the programming features when changing an existing Titan II program • Order of programming screens changes from a new system but all screens/features are available to be changed...

  • Page 98: System Access

    System Access • Allows editing of existing programming • Press ENTER to begin editing ENTER...
  • Page 99 System Access • Allows editing of the following • Dispenser set up parameters - Concentration parameters - Probeless parameters - Rinse control parameters - Sanitizer set up parameters - Diagnostic mode • Press ENTER to gain access ENTER...
  • Page 100 Dispenser Set Up Parameters • Press ENTER to access set up parameters • Use the DOWN arrow to scroll through Rack count - Control mode Machine type - Trigger mode Dirty H20 alarm - Dirty water time - Company name - Alarm volume - Enter new code •...
  • Page 101 Rack Count and Reset • Displays number of rack counts registered • Rack counts are generated by rinse length in conveyor mode or machine operations in door mode • Press ENTER to reset and LEFT arrow to confirm ENTER...
  • Page 102 Concentration Parameters • Press ENTER to access concentration parameters • Use the DOWN arrow to scroll through Concentration set point – Feed rate – Alarm delay – Feed limit • Press ENTER when desired feature is displayed for editing • Use return to system access ENTER screen or LEFT arrow to return to master menu...
  • Page 103 Probeless Parameters • Press ENTER to access probeless parameters • Use the DOWN arrow to scroll through Recharge time - Dead cycles/Dwell time - Initial charge - Charge clock - Detergent alarm - Detergent type • Press ENTER when desired feature is displayed for editing •...
  • Page 104 Rinse Control Parameters • Press ENTER to access rinse control parameters • Use the DOWN arrow to scroll through Door: Rinse speed - Rinse delay - Rinse limit – Rinse length (Probeless only) Conveyor: Rinse speed -Rinse length • Press ENTER when desired feature is displayed for editing •...
  • Page 105 Sanitizer Set Up Parameters • Press ENTER to access sanitizer set up parameters • Use the DOWN arrow to scroll through Sanitizer speed - Sanitizer mode • Press ENTER when desired feature is displayed for editing • Use return to system access screen or LEFT arrow to return to master menu ENTER...

  • Page 106: Diagnostic Mode

    Diagnostic Mode • Press ENTER to gain access to diagnostic mode • Use the DOWN arrow to view the following screens Detergent mode and input screen The over feed switch screen The open and short screen • Use return to system access screen or LEFT arrow to return to master menu ENTER...
  • Page 107 Detergent Information Screen •  P = Probeless mode  C = Concentration mode + = Active feeding - = Active trigger •  Detergent set point in concentration (probe) mode  Can be used as low level alarm for probeless mode ENTER •...
  • Page 108 Detergent Information Screen • DET Probeless Mode  = Initial charge  = Top off recharge  = Dwell cycle • DET Concentration Mode  = Received trigger & adding product  ENTER = Received trigger, not adding product...
  • Page 109 Over Feed Switch • Displays the occurrence of auto switch overs to probeless due to concentration mode unable to climb to set point • Press ENTER to reset and LEFT arrow to confirm ENTER...
  • Page 110 Probe Open and Short • Displays the occurrence of both open and short probe conditions • Press ENTER to reset and LEFT arrow to confirm ENTER...

  • Page 111: End Programming

    End Programming • Press ENTER to exit programming ENTER...
