Majority Castle
Music System
CB3A-CDAB-BLK
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Castle and is the answer not in the manual?

Questions and answers

Related Manuals for MAJORITY Castle

Summary of Contents for MAJORITY Castle

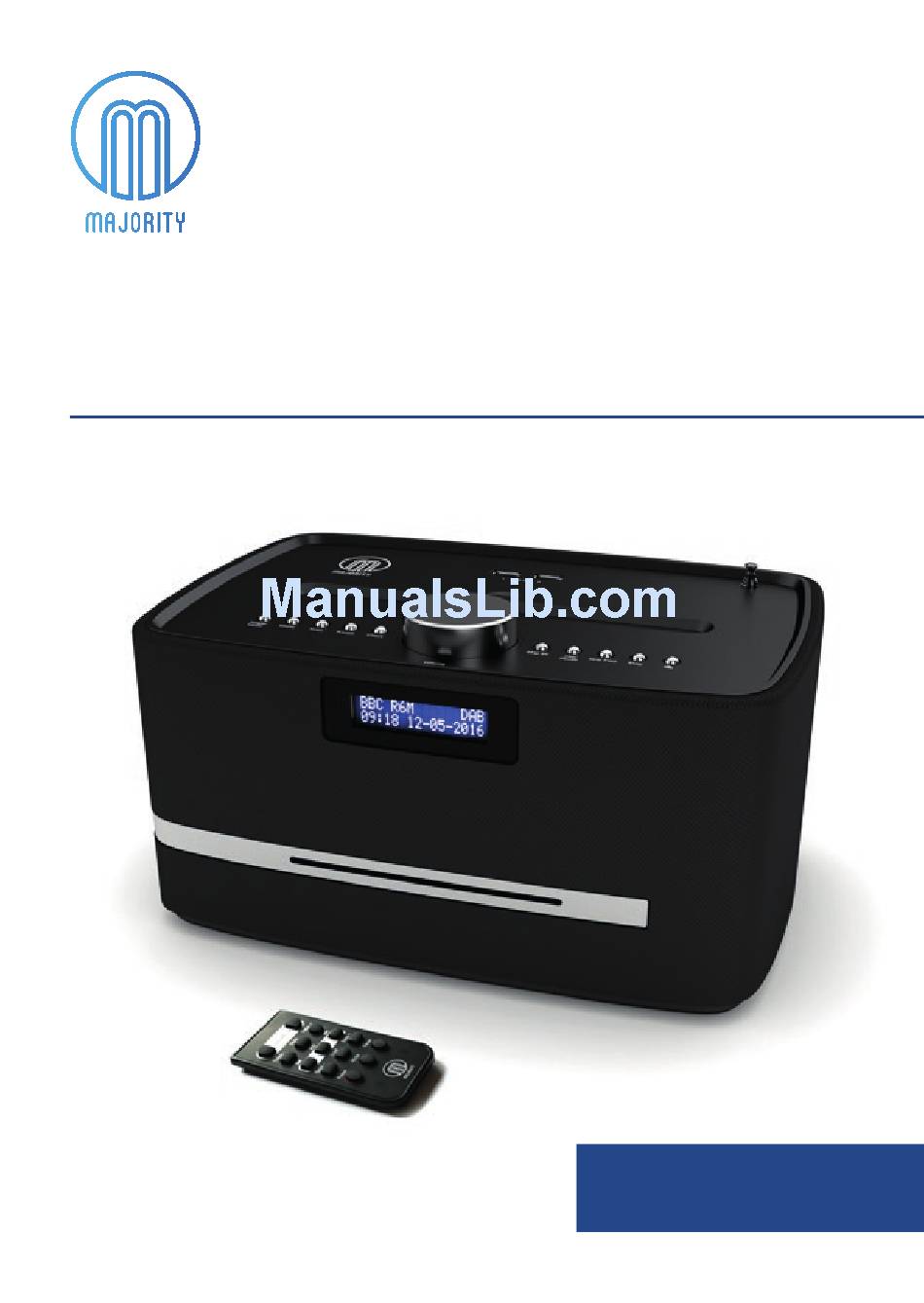

  • Page 1 Majority Castle Music System CB3A-CDAB-BLK User Guide...

  • Page 2: Table Of Contents

    Contents Controls and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Remote Controller .

  • Page 3: Controls And Functions

    Controls and Functions Instructions Guide Top View 1 . USB Out 1 6 . Scan 11 . Skip Back 2 . USB Out 2 7 . Preset 12 . Play/Pause Rear View 3 . Antenna 8 . Effect 13 . Skip Forward 4 .

  • Page 4: Rear View

    Instructions Guide Controls and Functions Rear View 16 . Aux-In jack 17 . Headphone jack 18 . DC 9v In jack – wall plug 1. Volume Control 2. Reduce Treble Effect 19 . On/Off switch 3. Mute 20 . Phone stand 4.

  • Page 5: Remote Controller

    Remote Controller Instructions Guide 1. Volume Control 2. Reduce Treble Effect 3. Mute 4. Increase Treble Effect 5. Previous Track 6. Play/Pause 7. Next Track 8. Reduce Bass Effect 9. Bass Loudness Compe 10. Increase Bass Effect 11. Power/Standby 12. Switch Mode 13.

  • Page 6: What's In The Box

    Instructions Guide What’s in the box? Majority Castle Music System ● Remote Control ● UK Standard Plug DC 9v Power Supply ● Phone Stand ● User Guide ●...

  • Page 7: Basic Operation

    Instructions Guide Instructions Guide Please note all (Ref.) refer to the Controls and Functions mapping guide on Pages 1-2 . Basic Operation Plug the 9v adapter connector into the back of the system labelled DC 9v (Ref .18) and the power supply into the mains . Power Supply ON/OFF at the back of the system (Ref .19) .

  • Page 8: Dab Radio And Set Up Preset For Dab Radio

    Instructions Guide Standby To place the music system back on standby, press and hold the ‘Power’ Button (Ref .4) . The front display will show “Goodbye” and then go into standby, showing the time and date . To turn off fully press the button on rear of the unit (Ref .19) and switch off at the mains .
  • Page 9 Instructions Guide How to store a preset radio station You can store a station using the preset button (Ref .7) and save up to 10 stations . First, tune to the station you want to store . Then press and hold the ‘Preset’...

  • Page 10: Fm Radio And Set Up Preset For Fm Radio

    Instructions Guide FM Radio To select FM Radio mode press the ‘Power Mode’ button (Ref .4) until “FM Mode” is displayed on the front screen (Ref .10) . Pull up the antenna (Ref .3) . Press and hold ‘Scan’ (Ref .6) and the music system will automatically preset the first 10 stations that have a good signal .
  • Page 11 Instructions Guide How to store a preset radio station You can store the station using the preset button (Ref .7) with up to 10 saved stations . First, tune to the station you want to store . Then press and hold the ‘Preset’...

  • Page 12: Cd Player

    Instructions Guide CD Mode To select CD mode press the ‘Power Mode’ button (Ref .4) until “CD MODE” is displayed on the front screen (Ref .10) . Insert the CD into the CD port at the front of the unit . The CD will read automatically and start playing .

  • Page 13: Bluetooth & Phone Connection

    (Ref .4) until “BT-AUX” is displayed on the front screen (Ref .10) . Turn on Bluetooth on your phone and “Majority Castle” will appear . Click on this to connect . If the unit displays “BT Mode CONNECT” on the front display screen, it has successfully connected .
  • Page 14 Instructions Guide Dual USB Ports – Charging your phone Both USB Ports output 5V/2A (Ref .1&2) . When connected via a USB lead into the USB port (Ref .1) the system will charge your phone but you can not play your music via the USB connection - it is purely a charging facility .

  • Page 15: Clock And Date Setting

    Instructions Guide Clock and Date Setting The date and time will automatically set after using DAB radio and will show when system is in Standby . The time will also automatically update when the time changes from BST to GMT and vice versa .

  • Page 16: Sleep Setting

    Instructions Guide Manually Setting the Date Press and hold the ‘Menu’ button (Ref .5) for 1 second to display options . Select your option using the ‘Skip Bk’ (Ref .11) and ‘Skip Fwd’ buttons (Ref .13) . Select “Date Setting” by pressing the ‘Volume/Select/Snooze’ button (Ref .9) on top of the system once .

  • Page 17: System Reset And Software Version Display

    Instructions Guide Select “Sleep Setting” by pressing the ‘Volume/Select/Snooze’ button (Ref .9) on top of the system once . Using the ‘Skip Bk’ and ‘Skip Fwd’ buttons select the number of minutes you would like the system to play before turning off, then press the large ‘Volume/Select/Snooze’...

  • Page 18: Brightness And Alarm Setting

    Instructions Guide Brightness & Alarm Setting Brightness Setting Press and hold the ‘Menu’ button (Ref .5) for 1 second to display options, then select your option using the ‘Skip Bk’ (Ref .11) and ‘Skip Fwd’ buttons (Ref .13) . Select “Brightness” by pressing the ‘Volume/Select/Snooze’ button (Ref .9) on top of the system once .
  • Page 19 Instructions Guide Alarm1/Alarm2 Setting Both alarms are set up in the same way: Press and hold the ‘Menu’ button (Ref .5) for 1 second to display options, then select your option using the ‘Skip Bk’ (Ref .11) and ‘Skip Fwd’ (Ref .13) buttons . Select “Alarm1 Setting/Alarm2 Setting”...

  • Page 20: Other Functions

    Instructions Guide Other Functions Erp Power Saving Feature If the unit can not receive signal after 10 minutes it will enter into Erp management mode and the unit will go into standby . NOTE: The unit won’t go into the Erp power saving mode if in FM .

  • Page 21: Technical Specification

    Technical Specifications and Warranty Technical Specifications Input 100 – 240V 50/60Hz, 1 .2A Output Power Consumption Power Consumption Total Power Consumption 2 x 8W RMS Radio DAB 174-240MHz FM 87 .5-108MHz Operating Position Horizontal Warranty All products come with a standard 12 month warranty . All items must be registered on www.majorityradios.co.uk for the warranty to be valid .

  • Page 22: Troubleshooting Guide

    Troubleshooting Guide Observation Potential cause/solution The unit does not Has the adaptor lead been correctly plugged into the work mains and the DC input jack at the rear of the unit? Does the socket that is being used have power? Has the 'On/Off' button at the rear of the unit been switched On? No sound...

  • Page 23: Important Safety Information

    IMPORTANT SAFETY INFORMATION 1 . Read these instructions . ADDITIONAL WARNINGS 2. Keep these instructions . Instructions are also The apparatus shall not be exposed to dripping or available for download at splashing and no objects filled with liquid, such as vases, shall be placed on apparatus .
  • Page 24 www.majorityradios.co.uk...
