  • Page 1 HiPer VR GNSS Receiver Quick Reference Card...

  • Page 2: Getting Started

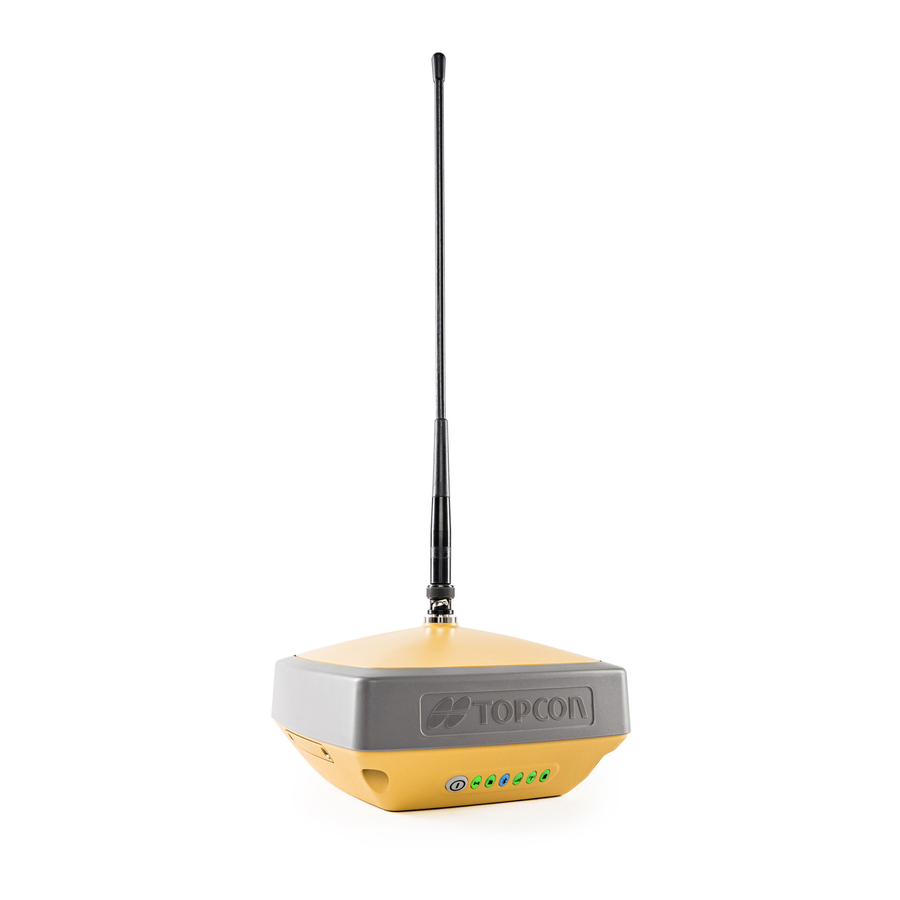

    Features Battery Power Button Radio STAT Cellular TNC or Bluetooth SIM Card Reset External Power (Model Button GNSS Serial dependent) Antenna Micro Getting Started Turning the Receiver On and Off To turn on the receiver, press and hold the power button until the LEDs briefly flash.

  • Page 3: Led Display Panel

    Press three description. Static and Kinematic times in a This function is available for “Occupation post-processing row within 1 mode switch” only. See Topcon Receiver modes second Utility (TRU) Help. Performing factory 10-15 Release Power button when STAT LED reset seconds blinks magenta.
  • Page 4 STATUS LED Green Blink One blink per tracked GPS satellite. Yellow Blink One blink per tracked GLONASS satellite. Cyan Blink One blink per tracked Galileo satellite. Magenta Blink One blink per tracked BeiDou satellite. Blue Blink One blink per tracked QZSS satellite. White Blink One blink per tracked L-band Satellite.
  • Page 5 RADIO LED - UHF GNSS RECEIVER Command mode (rover and base) Red Blink MAGNET Field or TRU sends commands to configure the + Green Blink GNSS receiver. + No light Receiver mode (rover) Green Solid Modem is not receiving correction data. Yellow Blink Modem is receiving correction data from a base.
  • Page 6 Regulatory and Safety Warnings Product Conformity Hereby, Topcon declares that the HiPer VR radio modem is in compliance with the essential requirements (radio performance, electromagnetic compatibility, and electrical safety) and other relevant provisions described in Directive 2014/53/EU. The full text of the EU declaration is available at the following internet address: https://www.topconpositioning.com/support/products/hiper-vr...

  • Page 7: Battery Warning

    The HiPer VR UHF (406-470 MHz) is allowed to be used in the following countries, either on license free channels or on channels where the operation requires a license. Additional detailed information is available at the local frequency management authority.
  • Page 8 HiPer VR Quick Reference Card Specifications subject to change without notice. ©2018 Topcon Corporation 7400 National Drive, Livermore CA 94550 All rights reserved. P/N 1027033-01 Rev. A...
