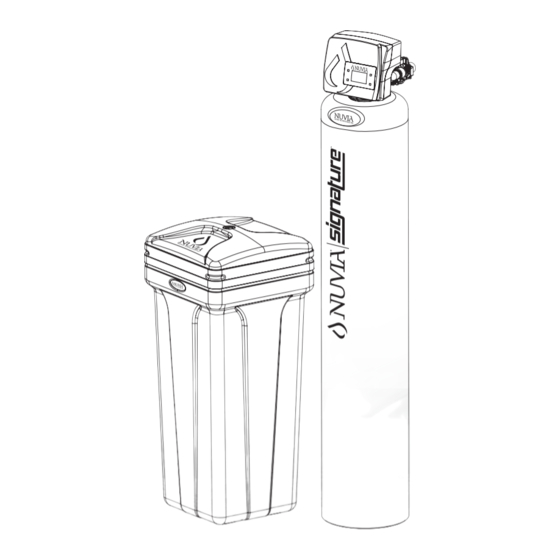

- Page 1 DYNAMIC REGENERATION (DR) ™ IAPMO R & T Certified IAPMO R & T Certified against NSF/ANSI 44 against CSA B483.1...
-
Page 2: Table Of Contents
STARTUP PROCEDURES SYSTEM DIAGNOSTICS CHECK LIST DURING REGENERATION PLUMBING SYSTEM CLEANUP REFINER-WATER BYPASS-OPERATING CONDITIONS WATER REFINER SANITIZATION MAINTENANCE INSTRUCTIONS SERVICE THE NUVIA® VALVE MAINTENANCE INSTRUCTIONS AND SCHEDULE PROGRAMMING MASTER PROGRAMMING DIAGNOSTIC SCREEN REPLACEMENT REPLACE PISTON &/OR BRINE VALVE CLEAN INJECTOR ASSEMBLY... -
Page 3: Read This Page First
See page 7 for unpack and inspect system 110°F (4°C - 43°C). Nuvia®™ reserves the right to change the specifications referred to in this literature at any time, without prior notice. Do not use this water refiner on hot water supplies. -
Page 4: Efficiency Statement
EFFICIENCY STATEMENT This product is efficiency rated according to NSF/ANSI 44. The stated efficiencies are valid only at the specified sodium dosages and maximum service flow rate. PERFORMANCE DATA SHEET MODEL NUMBER NW-SIG-948-1.0 NW-SIG-1054-1.0 NW-SIG-1252-1.0 NW-SIG-1354-1.0 QTY HIGH CAPACITY MEDIA 0.75 FT3 1.0 FT3 1.5 FT3... -
Page 5: Specifications
Note: Nuvia® Systems can be installed into homes and small commercial applications with up to 1.25" plumbing. Optional 1.25" connections available upon request. -
Page 6: System Dimensions
SYSTEM DIMENSIONS Models A (Inches) B (Inches) C (Inches) NW-SIG-948-1.0 58” 9" 13” NW-SIG-1054-1.0 64” 10" 13” NW-SIG-1252-1.0 62” 12" 13” NW-SIG-1354-1.0 64” 13" 13” BRINE TANK DIMENSIONS Model Color Liquid Volume Tank Dimensions Sodium Capacity (inches) US Gal Liters L x W x H Brine Tanks White... -
Page 7: Installation
INSTALLATION UNPACKING & INSPECTION SYSTEM CONTENTS: There are 8 black MODELS: clips. Please check to NW-SIG-948-1.0 make sure you have NW-SIG-1054-1.0 all of them. NW-SIG-1252-1.0 NW-SIG-1354-1.0 Bypass YOU WILL EXPECT THE FOLLOWING. (not SHIPPING CARTON QUANTITY – 1 attached) 1. Control Valve 2. - Page 8 UNPACKING & INSPECTION For Models NW-SIG-1252-1.0 and NW-SIG-1354-1.0, the media and Control Valve is packaged separately in carton and bags 4. Control Valve WHAT IS INCLUDED WITH NW-SIG-1252-1.0 AND NW-SIG-1354-1.0 MODELS? YOU WILL EXPECT THE FOLLOWING. SHIPPING CARTON QUANTITY – 1 1.
-
Page 9: Assemble Brine Tank
ASSEMBLE BRINE TANK Attach the four brine grid legs to grid Drop the brine grid with brine well ) Insert the nut and hose barb in to the plate. The legs will snap on to the inside the brine tank. Position the brine tube as shown below. -
Page 10: Check The Valve Serial Number And Valve Type
CHECK THE VALVE SERIAL NUMBER AND VALVE TYPE Check to make sure the valve type matches what you ordered. The serial # label on the left will show NWDR10 for Dynamic Regeneration valve The right sticker shows the serial # of the control valve. The middle Sticker is dataplate which provides information of Serial # and Date of Manufacture of complete system. -
Page 11: Pre-Installation Instructions
CAUTION! INSPECTING AND HANDLING FIGURE 1 YOUR NUVIA® PRO REFINER* The ground from the electrical panel or break - Inspect the equipment for any shipping er box to the water meter damage. -
Page 12: Preparations
PREPARATIONS CAUTION! The unit should be Media Installation (When Necessary). Models larger than 1.5 CF of media are shipped with depressurized before separate media in pails or boxes. Models lower than 1.5 CF of media come loaded with media installing or replacing media and this step can be skipped for new installation. -
Page 13: Installation Steps
INSTALLATION STEPS Determine the best location for your water filter, bearing in mind the location of your water supply lines, drain line and 120 volt AC electrical outlet. Subjecting the filter to freezing or temperatures above 43°C (110°F) will void the warranty. Please notice the inlet and outlet labels on the valve as shown here to determine the position of the equipment: NOTE If the plumbing system... -
Page 14: Dynamic Regeneration Water Refiner Installation
DYNAMIC REGENERATION WATER REFINER INSTALLATION Cold (Raw water) Cold (Raw water) Cold (Filtered water) To Outside Faucet In Out Cold (Soft Water) Filter Hot (Soft Water) Water Heater Dynamic Regeneration Water Re ner Water Pipe Inlet Water Pipe Outlet Drain Elbow Assembly AC120V/10A Current Protect Socket... -
Page 15: Operation
OPERATION 3. SCREEN DISPLAY System initializing When power is supplied to the STARTUP PROCEDURES STARTUP PROCEDURES Please wait control, the screen will display MENU “INITIALIZING WAIT PLEASE” while it finds the service position. 1. CONNECT THE TRANSFORMER TO THE VALVE. Plug the 12-volt transformer into a 120 VAC 60 Hz outlet. - Page 16 NOTE** All units are factory programmed for the correct size and regeneration cycle alteration should only be done by a factory trained technician or after consultation with one of our technical representatives if you have any questions please contact: Nuvia® Direct Phone Number: 951.734.7400 Service Related Matters: customerservice@Nuviawater.com General questions: info@Nuviawater.com 4a.
-
Page 17: System Diagnostics Check List
Should there be any questions concerning the advisability of performing a procedure, it is NOTE strongly recommended your local NUVIA® dealer be consulted prior to performing the procedure. The plumbing system and water using appliances that have been... -
Page 18: Refiner-Water Bypass-Operating Conditions
REFINER SERVICE Disconnect brine draw line from the brine cabinet. Place the loose end into a five gallon plastic pail filled with a solution of warm water and 4 oz. of media mineral cleaner. Manually advance control timer to brine draw position (refer to page 16 step 4 chart). -
Page 19: Water Refiner Sanitization
Allow four hours to produce a brine solution, then manually regenerate the refiner. SERVICE THE NUVIA® VALVE If the conditioner has an integral bypass valve, put it in the bypass position. -
Page 20: Maintenance Instructions And Schedule
Frequency of replacing bed is determined by water quality and usage. If you start getting chlorine smell or grey / black coloration of the water from time to time contact Nuvia® Water Technologies with Sodium your model number to order replacement media. -
Page 21: Programming
PROGRAMMING MASTER PROGRAMMING BELOW IS HOW THE SETTINGS ARE SET AT FACTORY: PRESS MENU KEY AND SCROLL TO ‘MAIN MENU’. THEN PRESS ‘SET’ TILL PRESS ‘+’ AND ‘-’ FOR 8 SECONDS IT BEEPS. SCROLL TO ADVANCED MENU Sodium VS BW/RINSE EMERGENCY MODELS LANGUAGE... - Page 22 Dealer Information Dealer Information Main Menu Main Menu = = Dealer Information = = = = Date and Time = = Nuvia® Water Technologies 17 - Feb - 2018 108 Business Center Dr, 12:25PM Corona, CA 92880, USA Press To Cancel...
-
Page 23: Diagnostic Screen
DIAGNOSTIC SCREEN PRESS “MENU” KEY AND SCROLL TO “MAIN MENU”. THEN PRESS “SET” TILL IT BEEPS. SCROLL TO ADVANCED MENU Press “Menu” key . Press - to advance to Main Menu. Press “SET” PRESS “MENU” KEY AND SCROLL or until you hear a beep. Press - to advance to Advanced Menu TO “MAIN MENU”. -
Page 24: Replacement
REPLACEMENT REPLACE PISTON AND/OR BRINE VALVE ASSEMBLY Piston Remove 4 X Assembly Seal and Screws Spacer Plate Brine Valve Assembly Follow steps 1 to 6 of Remove the plate from the valve body and Replace piston assembly followed pull the Piston Assembly from the valve. timer /Powerhead replacement. -
Page 25: Replace Timer
REPLACE TIMER 4 X Screws Meter Cable Front Cover Disconnect the meter cable from the Remove four screws from the back of Remove the front cover of the valve. the valve cover meter. (If flow meter is attached) Powerhead Piston Screw 2 X Screws from Powerhead Washer Assembly... -
Page 26: Replacing The Bypass And Meter Cable
REPLACING THE BYPASS AND METER CABLE Grey Meter Cable 60010267 Bypass comes with Meter 60095101 and Grey Meter Cable Step 1 Step 2* Disconnect the meter cable from Remove 2 screws and Unplug the the bypass. power from the clips from bypass. wall socket. -
Page 27: Display Replacement
DISPLAY REPLACE REPLACEMENT MICROSWITCHES Front Cover 4X Screws Microswitches Microswitch Screws Remove Screws from the back of the valve and pull the cover Remove all connections from the circuit board Remove the two screws from the microswitch Replace the microswitch, connections and cover AFTER SERVICING Reconnect drain line Return bypass or inlet valve to normal in service... -
Page 28: Replace Drain Line Flow Control
REPLACE BRINE LINE REPLACE DRAIN FLOW CONTROL LINE FLOW CONTROL Clip Brine Line Elbow Clip Drain Line Elbow Drain Line Washer Brine Line Washer Pull the drain line clip and remove the Pull the brine line clip and remove drain line elbow and washer the brine line elbow and washer Clean/replace drain line washer Clean/replace brine line washer... -
Page 29: Parts
PARTS DYNAMIC REGENERATION REFINER PARTS LIST Control Valve Upper Cone (18280) Bypass 60010004 Distributor CONTROL VALVE # PRESSURE SYSTEM MODEL DISTRIBUTOR # CONTROL VALVE # TANK SIZE NW-SIG-948-1.0 9 x 48 25020213 NW-SIG-1054-1.0 10 x 54 25020214 940956 NW-SIG-1252-1.0 12 x 52 25010060 NW-SIG-1354-1.25 13 x 54... -
Page 30: Controller Assembly Parts List
Locating wheel(UF) 05056141B Washer on Locating Wheel 05033004 Screw 2.2×13 05056166B Screw on Locating Wheel 05041011 Micro Switch 13000332 Screws on Micro Switch 13000401 Screws on PCB 92388 05033008B 05033027 PCB Absorb Shock Foam 05033011F Front Cover(White) 05033007E Controller Touch Panel(Nuvia®) -
Page 31: Sstandard Bypass/Control Valve Assembly Parts List
STANDARD BYPASS/CONTROL VALVE ASSEMBLY PARTS LIST PARTS LIST OF CONTROL VALVE BODY PART # PART # DESCRIPTION 60010184 21389033 Brine Line Elbow Nut 60010172 30020013M Brine Line Elbow 60010044 05056134 O-ring of Brine Line Elbow 60010188 05031033 O-ring of BLFC Holder 60010173 05031010M BLFC Holder... -
Page 32: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE SOLUTIONS 1. CONDITIONER DELIVERS HARD WATER A. Close bypass valve A. Bypass valve is open B. Add sodium to brine tank and maintain sodium level above water level B. No sodium in brine tank C. Replace injectors and screen C. -
Page 33: Master Programming Guide
TROUBLE SHOOTING GUIDE Problem Possible Solutions 11. DRAIN FLOWS CONTINUOUSLY A. Remove piston assembly and inspect bore. Remove foreign material and check A. Foreign material in control control in various regeneration positions B. Internal control leak B. Replace seals and/or piston assembly C. - Page 34 MASTER PROGRAMMING GUIDE (CONTINUED) MASTER PROGRAMMING - DYNAMIC Master Programming (V1.5) PRESS MENU KEY AND SCROLL TO ‘MAIN MENU’. THEN PRESS ‘SET’ TILL IT BEEPS. SCROLL TO ADVANCED MENU BRINE BACK WASH RINSE BRINE AUXILIARY SERVICE BACKLIGHT HISTORY SODIUM ALARM SODIUM RINSE REFILL...
-
Page 35: Advanced Menu Dynamic
ADVANCED MENU DYNAMIC Press “MENU” key . Press - to advance to Advanced MENU PRESS “MENU” KEY AND SCROLL TO “MAIN MENU MENU Menu. Press and hold “SET” 5 seconds or until you MENU MENU MENU”. THEN PRESS “SET” TILL IT BEEPS. hear a beep. -
Page 36: Main Menu Dynamic
MAIN MENU DYNAMIC Press “MENU” key . Press - to advance to Advanced Menu. Press and MENU MENU MENU hold “SET” 5 seconds or until you hear a beep. Press MENU MENU MENU to choose menu option. Press “SET” to enter. Press MENU MENU change option. -
Page 37: How To Set Date And Time, Manual Regeneration And Dealer Information
HOW TO SET DATE AND TIME, MANUAL REGENERATION AND DEALER INFORMATION MENU PRESS “MENU” KEY AND SCROLL TO “MAIN MENU”. THEN PRESS “SET” TILL IT BEEPS. MENU Press “MENU” key PRESS “MENU” KEY AND SCROLL TO “MAIN MENU MENU MENU Press to change menu option. -
Page 40: Warranty
We will repair or replace defective parts if our warranty department determines it to be defective under the terms of this warranty. Nuvia assumes no responsibility for consequential damage, labor or ®...
