Design and function
MIG/MAG welding
Preparation for connecting welding torches with a liner:
•
Push forward the capillary tube on the wire feed side in the direction of the Euro torch connector and
remove it there.
•
Insert the liner guide tube from the Euro torch connector side.
•
Carefully insert the welding torch connector with as yet too long a liner into the Euro torch connector
and secure with a crown nut.
•
Cut off the liner with a liner cutter > see 9 chapter just before the wire feed roller.
•
Loosen the welding torch connector and remove.
•
Carefully chamfer the cut off end of the liner with a liner sharpener > see 9 chapter and sharpen.
5.2.2

Welding torch connection

Equipment damage due to improperly connected coolant pipes!
If the coolant pipes are not properly connected or a gas-cooled welding torch is used, the coolant
circuit is interrupted and equipment damage can occur.
•
Connect all coolant pipes correctly!
•
Completely unroll the hose package and the torch hose package!
•
Observe maximal hose package length > see 5.1.2.2 chapter.
•
When using a gas-cooled welding torch, use a hose bridge to establish the coolant
circuit > see 9 chapter.
20

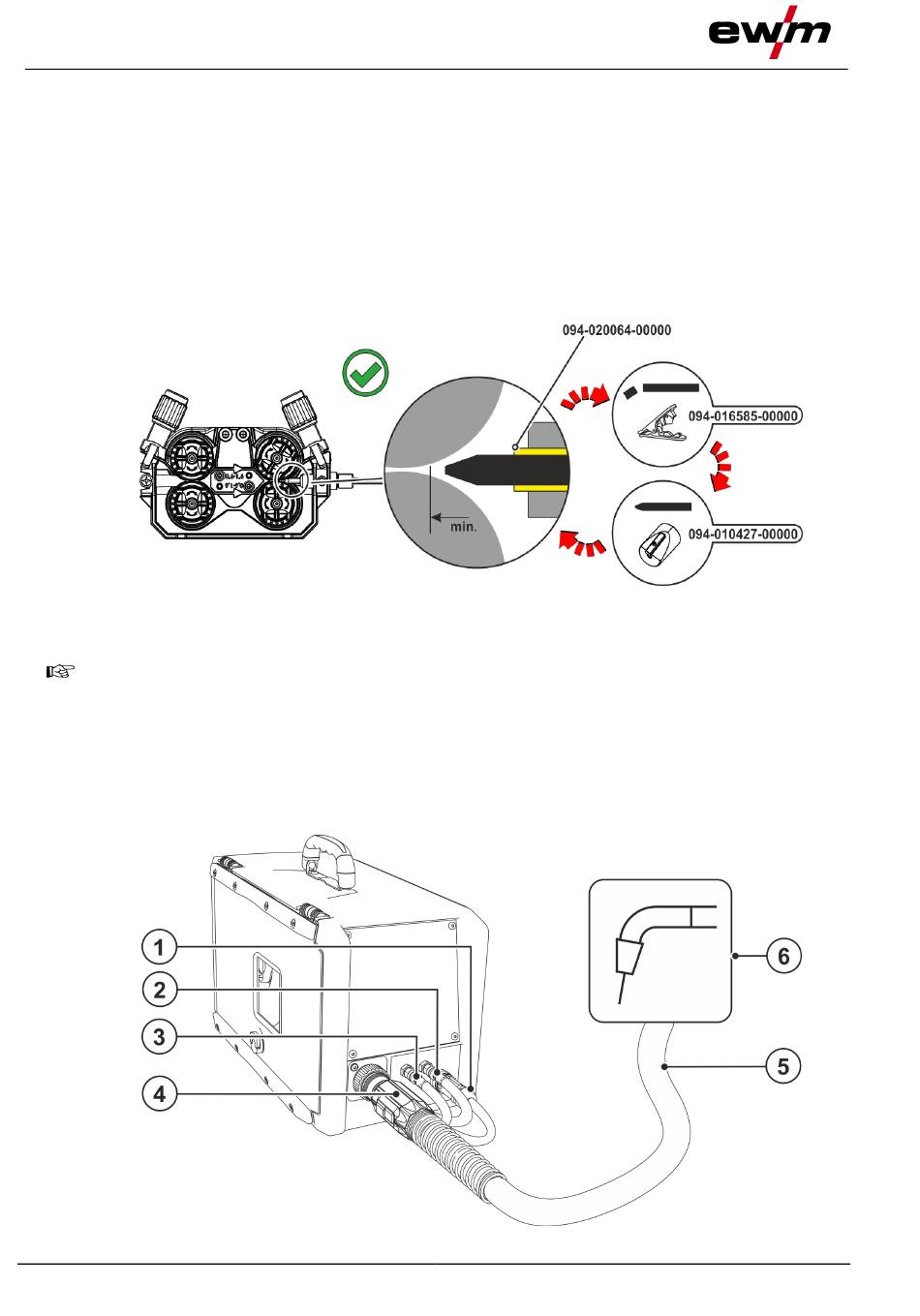

Figure 5-10
