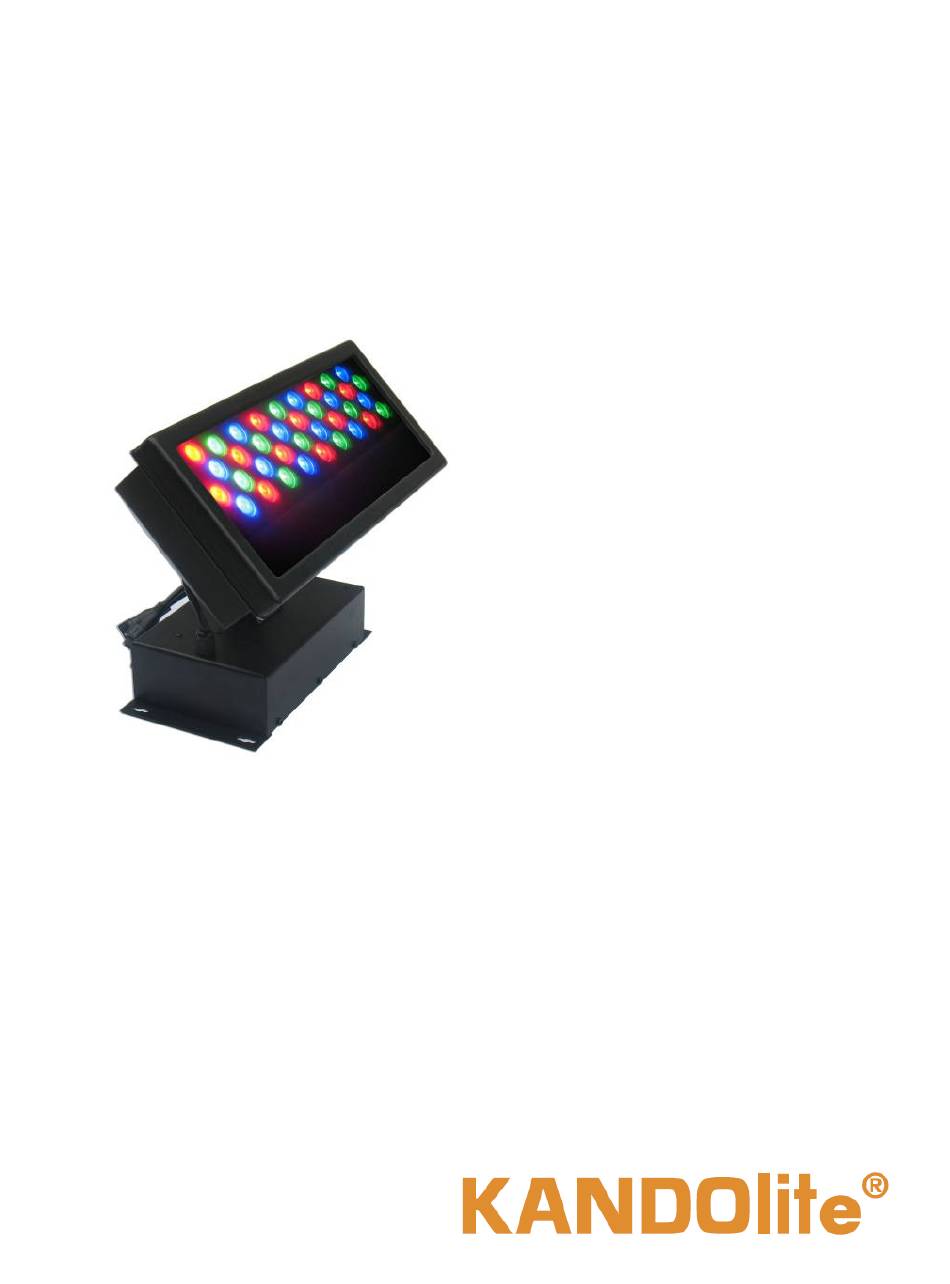

- Page 1 USER MANUAL KWW36W3RGB...
-
Page 2: Table Of Contents
I n d e x summarize ................. 3 safety instruction ..............3 outside size picture ............. 4 main function ..............5 DMX controller function ............5 Display operation instruction..........6 Manual instruction............... 6 Operating control instruction..........8 XRL connection instruction ..........8 Connection picture .............. -
Page 3: Summarize
Products introduce This led KWW36W3RGB color-changing projecting light is covered by high strength die-casting aluminum which is able to endure high temperature, designed in a fashion of hydrodynamic form. It takes uses 3W high power R, G, B 3 kinds of LED, the color mixing effect is very good, high brightness. -
Page 4: Outside Size Picture
● Make sure the power supply voltages are consistent with this lights E nsure the ， use of voltage is in the range of the request technical parameter. ●before the installation, please check the light’s fasteners and mechanical structure have been received in good condition and appear no damage. ●This light is designed for indoor use, working temperature is lower than 40 degree. -
Page 5: Main Function
Main Function • Protection rating: IP65, in door or out door used. • Each color of LED with 256 dimming. RGB can make over 16.7 million colors • DMX512 Controller D MX ID address with 2 digitals display ， • master slave/interconnected multi-machine control •... -
Page 6: Display Operation Instruction
Display Operation DC24V/OUT AC100V-240V IN (power in) f unction button ： s etup button ： Manual Instruction 1. “A”is the function button “B”is the setup button.correspond with DMX and built-in program mode. DMX mode: When shows all of the figures(001-512), for the light’s DMX address code, receive DMX512 signal. - Page 7 ones-digit as 0-9 press “A” fourthly, switch to built-in program mode, the display’s first word on the left show “P” ,the second for the built-in programs and flashing, press “B” to modify the built-in program 0-9, “A” for the standby. press “A”...
-
Page 8: Operating Control Instruction
Operating Control Instruction Master/Slave Master T he master should set as built-in program and shows” P - X – X” send out ： synchronization signals. To avoid the host signal and DMX512 signals interfere with each other, should cut off the DMX512 signals. The signal lines are longer than 60 meters should increase a signal amplifier. -
Page 9: Connection Picture
The Conversion between 3pin and 5 pin XLR If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable Connecting picture ： Cable connecting picture... -
Page 10: Exploded Views
Exploded views... -
Page 11: Illuminance List
Luminance list... -
Page 12: Problem Analyse
Problem Analyze Problem Checking way Check the power source plug is in normal or not Can not turn on the Check the switch of the lights is off or on light Check it the fuse if in normal Check the DMX cable is connect to the lights or not DMX can not control Check the DMX512 controller work in normal or not Check the DMX cable is normal or not... - Page 13 Some of the LED not Use the multimeter to check if the led is bright or not, of light not, please change the led check whether current limiting resistor is normal or not Check constant current IC is normal or not (compared with the normal IC) Single color leds Check the switch of this color is normal or not...
-
Page 14: Technicals Secification
Technical Specification Input voltage A C 170V-264V/47-63HZ ● ： Output voltage D C24V ● ： Consume 1 00W ● ： Lamp Type H igh Power LED(3W) ● ： Lamp Spec 1 2PCS 1 2PCS 1 2PCS ● ： （ ） 、 （... - Page 15 Copyright 2012 KANDOLITE. All rights reserved. Due to continuous improvements and innovations, specifications may change without notice.
