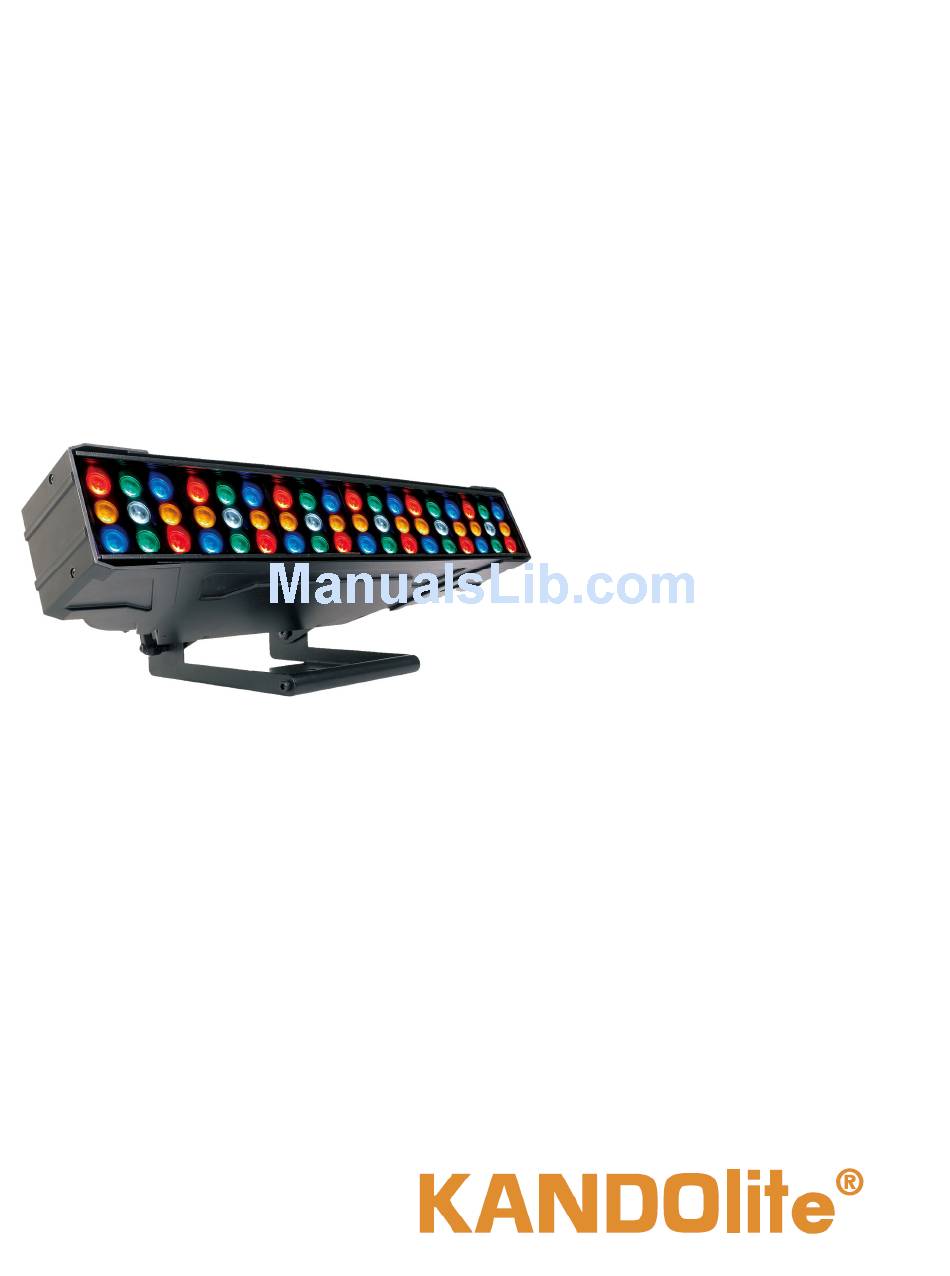

Page 1: User Manual
USER MANUAL KLB54W3RGBAW... -
Page 2: Table Of Contents
I n d e x summarize ................3 safety instruction ..............3 outside size picture..............4 main function .................5 DMX controller function ............5 Display operation instruction .............5 Manual instruction ..............8 Operating control instruction ........... 11 XRL connection instruction............12 Connection picture..............13 Exploded Views ..............15 Luminance list…………………………………………….……………………….……………16 Problem analyze…………………………………………….…………………………………17 Technical specification……………………………..………………………………………18... -
Page 3: Summarize
The built-in program includes dimmer, strobe, eotic, gradual change, fading and so on. International standard DMX 512 signal is requested. Packing list KLB54W3RGBAW 1 pc Hang locks 2 pcs... -
Page 4: Safety Instruction
Safety instruction ● Make sure the power supply voltages are consistent with this lights，Ensure the use of voltage is in the range of the request technical parameter. ●before the installation, please check the light’s fasteners and mechanical structure have been received in good condition and appear no damage. ●This light is designed for indoor use, working temperature is lower than 40 degree. -
Page 5: Main Function
Main Function • high quality LED: low consumption, brightness, stable capability and long life • Each color of LED with 256 dimming. RGBAW can mix a perfect color effect. • dim 0%-100%, Strobe、gradual change、jumping change • DMX512 Controller，with 2-line 16 character LCD display. •... - Page 6 Channel DMX Value Control Function priority 0-255 Red dimming 0——100% 0-255 Green Dimming 0——100% 0-255 Blue Diming0——100% 0-255 Amber Dimming 0——100% 0-255 White Dimming 0——100% invalid 10-255 R,G,B,A,W mixing Close strobe 3-255 Strobe Speed(slow-fast) 0—4 Invalid 5-24 Mode 1, the value is greater, the speed is faster 25-49 Mode 2, the value is greater, the speed is...
- Page 7 14CH Channel Control Function priority Value 0—255 Red dimming 0—100% 1 pixel to the 3 0—255 Green dimming 0—100% 1 pixel to the 3 0—255 Blue dimming 0—100% 1 pixel to the 3 0—255 Amber dimming 0—100% 1 pixel to the 3 0—255 White dimming 0—100% 1 pixel to the 3...
-
Page 8: Manual Instruction
15CH Devide the 6pixel into 3 group, each group 2pixel, each group 5CH(RGBAW); 5CH*3 30CH Device the 6pixel into 6 group, each group 1pixel, each group 5CH(RGBAW); 5CH*6 Display Operation MENU : access the menu or return to a previous menu option ENTER : select the current menu option : menu selection or parameter increments... - Page 9 DMX mode and slave mode options When the DMX = ON, SLAV = OFF, it the DMX working state, while the DMX = OFF, SLAV = ON, it the slave mode (for state of slave to receiving); Operation: press the MENU key to exit the setting mode and then press the UP / DOWN key until shows ”RUN MODE”, then press ENTER choose, the display will glinting at this moment, press UP / DOWN button to select the required mode, press the MENU key to exit (parameter auto-save).
- Page 10 RGBAW:5 colors mixing choose(25 in total) Operation: ENTER+UP/DOWN+MENU Sound Mode STROBE 0N: sound-activated with strobe; STROBE OFF: sound-activated no strobe Operation: ENTER + UP / DOWN + MENU Built-in programs: PR00: the number of built-in programs: PR00-PR09 FL00: (FADE) strobe speed, Fl00-Fl99, Fl00 is 0, Fl99 is the slowest; SP00: program changes’...
-
Page 11: Operating Control Instruction
DMX Dimming mode DMX Dimming Mode：Dimming mode0-4，Mode 0 is output directly。 Operation：ENTER+UP/DOWN+MENU Build-in RGBAW dimming mode Dimming mode: RGBAW dimming 0-255，0 is close，255 is brightness Operation：ENTER+UP/DOWN+MENU Operating Control Instruction Master/Slave Master ：The master should always working as a master as long as it is not set in a DMX mode whatever other modes it is. - Page 12 XLR cable connecting The stand connection way of the XRL is: one end connect to the male plug , and the other connect to the female Noted: In order to avoid failures and interference signal transmission, （ ） We connect a resistance 120Ω 1/4W at the end of the DMX connecting as below...
- Page 13 Connecting picture Electrical connections...
- Page 14 Light board Light Connecting picture...
-
Page 15: Exploded Views
Exploded views... -
Page 16: Luminance List
Luminance list... -
Page 17: Problem Analyze
Problem Analyze Problem Checking way Check the power source plug is in normal or not Can not turn on the Check the switch of the lights is off or on light Check the fuse if in normal Check the DMX cable is connect to the lights or not DMX can not control it Check the DMX512 controller work in normal or not Check the DMX cable is normal or not... -
Page 18: Technical Specification
Technical Specification • Input voltage：AC 100V-240V/50-60HZ • Consume：190W • Lamp Type： LED(3W) • Lamp Spec：R（12PCS）、G（12PCS）、B（12PCS）、A（12PCS）、 W（6PCS） • Life span:50000-100000 hours • Control mode：stand alone/ master and slaver • Channel：5CH、9CH、 14CH、15CH、30CH • Beam Angle: 15°, 25°,.45° • Protection rating:IP20 • Anti-electricity intension：1.5KV •... - Page 19 Copyright 2012 KANDOLITE. All rights reserved. Due to continuous improvements and innovations, specifications may change without notice.
