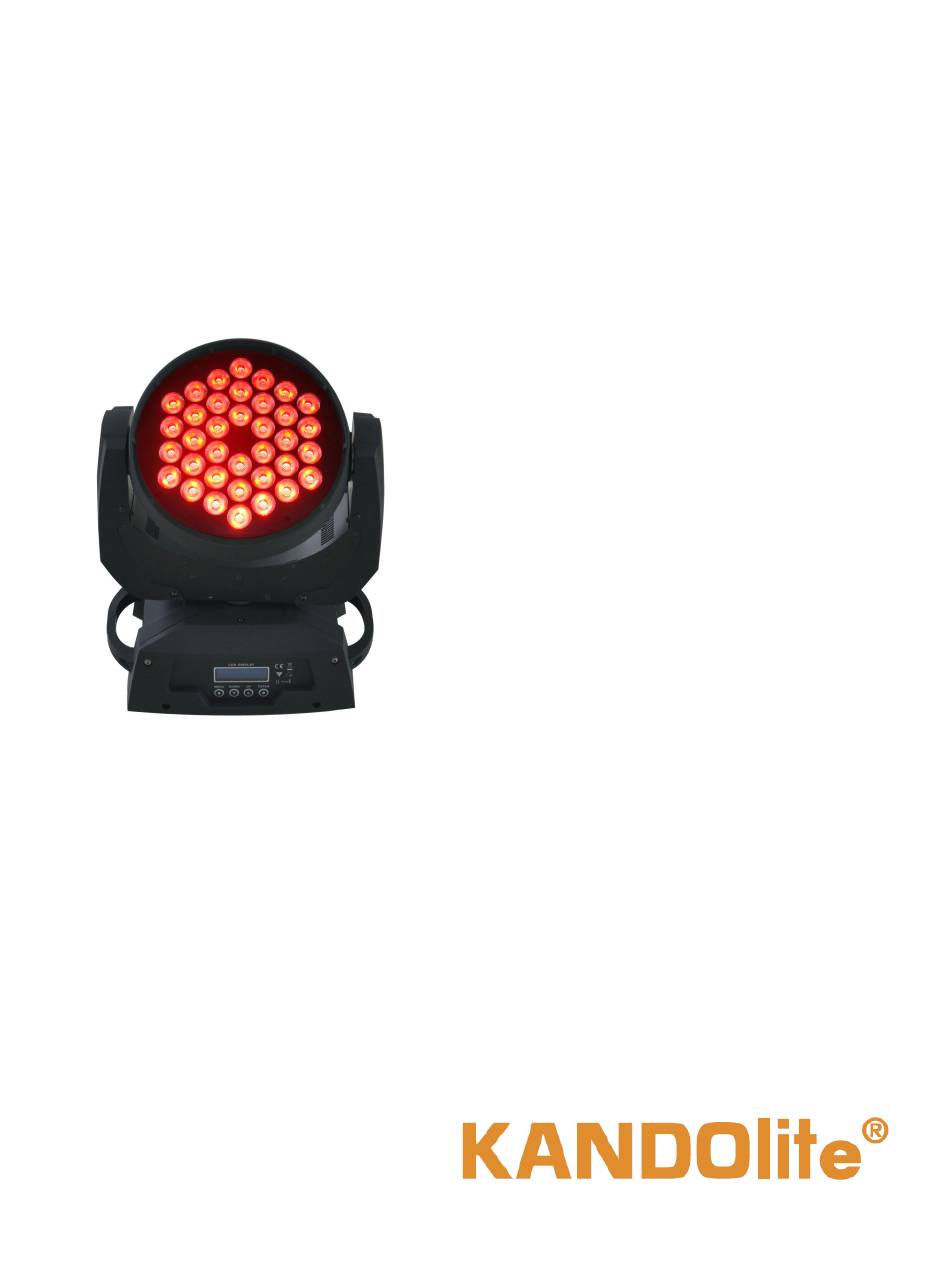

Page 1: User Manual
USER MANUAL KMLWSH36W10... -
Page 2: Table Of Contents
I n d e x summarize ................. 3 safety instruction ..............3 outside size picture ............. 4 main function ..............5 DMX controller function ............5 Display operation instruction..........7 Manual instruction............... 8 Operating control instruction..........9 XRL connection instruction ..........9 Connection picture .............11 Problem analyze..............12 Technical’s pecification….………….…………………………..………14... -
Page 3: Summarize
Products introduce This led KMLWSH36W10 light is uses aluminum shell, designed in a fashion of hydrodynamic form. Appearance shows: long can, short can or short can with color filter. It takes uses high power R, G, B, W 5 4 in 1 LED. It uses power switch, performs low weight and consumption, stable capability and long life. -
Page 4: Outside Size Picture
● Make sure the power supply voltages are consistent with this lights E nsure the ， use of voltage is in the range of the request technical parameter. ●before the installation, please check the light’s fasteners and mechanical structure have been received in good condition and appear no damage. ●This light is designed for indoor use, working temperature is lower than 50 degree. -
Page 5: Main Function
Main Function • Use high quality LED lighting source, low power consumption, high brightness, stable performance and long life. • Each color of LED with 256 dimming. RGB can make over 16.7 million colors. The color mixing is better with White LEDs •... - Page 6 DMX Control Function 14CH Channel DMX Value Function 0—255 General dimming 0—255 Red dimming 0—255 Green dimming 0—255 Blue dimming 0—255 White 0—10 Strobe off 11—255 Strobe speed 0—20 Invalid 21—30 AUTO 1 31—40 AUTO 2 41—50 AUTO 3 51—60 AUTO 4 61—70 AUTO 5...
- Page 7 Display Operation Back side D MX512 DMX-IN XLR socket ： D MX512 DMX-OUT XLR socket ： A C POWER-IN socket A C100-240V 5 0-60Hz ： （ ， ） F USE ： ： p ower switch O N/OFF ： （ ） Front side L CD display+4 button input ：...
-
Page 8: Manual Instruction
Manual Instruction (Address) (Address=) A001-A512 (x Reverse) N O/YES (option) (Y Reverse) （ ） (XY Exchange) (Language) English (lightness) 1-32 (Display) constant open (poorlight) N O/YES LOGO （ ） [menu] 0--255 (man Control) ch12 (Sound) (Test (program operation) run) (Auto) (Resume (enter) default) -
Page 9: Operating Control Instruction
P ress [menu] or [enter] to main menu ： P ress [up] or [down] to select options ： Operating Control Instruction Master/Slave Master T he master should set as built-in program and shows” P - X – X” send out ：... - Page 10 （ ） a resistance120Ω 1/4W at the end of the DMX connecting as below: The Conversion between 3pin and 5 pin XLR If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable...
- Page 11 Connecting picture...
-
Page 12: Problem Analyze
Problem Analyze Problem Checking way Check the power source plug is in normal or not Can not turn on the Check the switch of the lights is off or on light Check it the fuse if in normal Check the DMX cable is connect to the lights or not DMX can not control Check the DMX512 controller work in normal or not Check the DMX cable is normal or not... - Page 13 Some of the LED not Use the multimeter to check if the led is bright or not, of light not, please change the led check whether current limiting resistor is normal or not Check constant current IC is normal or not (compared with the normal IC) Single color leds Check the switch of this color is normal or not...
-
Page 14: Technical's Pecification
Technical Specification • Input voltage A C 100V-240V/47-63HZ ： • Output voltage D C24V ： • Consume 2 60W ： • Lamp Type H igh Power LED(10w) ： • Lamp Spec R GBW 4-in-1 LED(36 pcs) ： • Constant current drive: 500Ma(single color drive) •... - Page 15 Copyright 2012 KANDOLITE. All rights reserved. Due to continuous improvements and innovations, specifications may change without notice.
