Summary of Contents for Kandolite KSL1W9
-

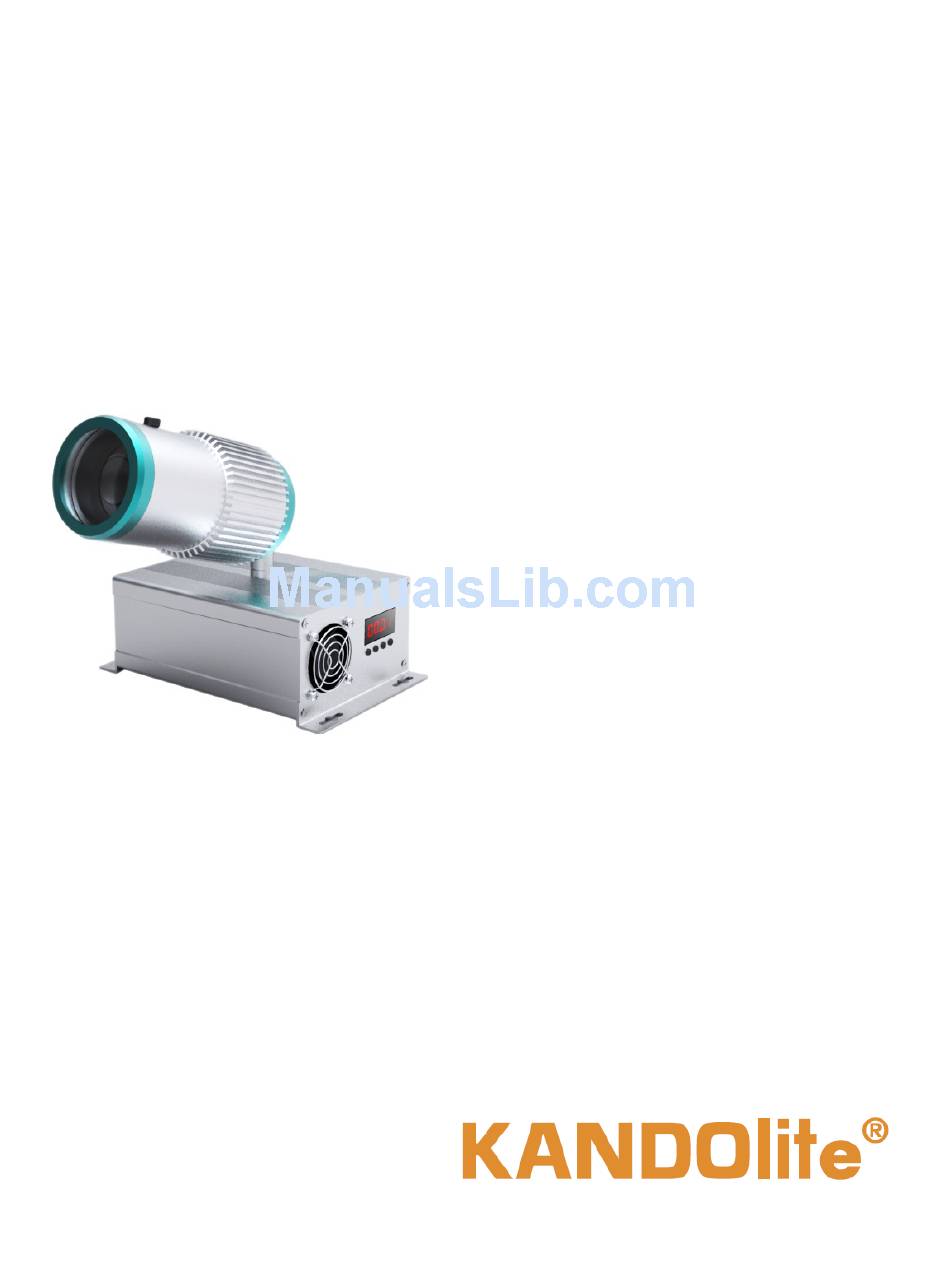

Page 1: User Manual
USER MANUAL KSL1W9... - Page 2 I n d e x summarize ................. 3 safety instruction ..............3 outside size picture ............. 4 main function ..............5 DMX controller function ............5 Display operation instruction..........6 Operating control instruction..........8 XRL connection instruction ..........9 Connection picture .............10 Exploeded views…………………………………………………………..11 Problem analyze……………………………………………………………12 Technical’s specification….……….…………………………..………14...
-
Page 3: Summarize
Summarize Thank you for purchasing our LED lighting. Please read these instructions carefully before begin and operate the fixtures according to these instructions to avoid any possible damages and accidents causes by misusage. Products introduce This led KKSL1W9 light is uses aluminum shell, designed in a fashion of hydrodynamic form. -
Page 4: Outside Size Picture
● Make sure the power supply voltages are consistent with this lights E nsure the ， use of voltage is in the range of the request technical parameter. ●before the installation, please check the light’s fasteners and mechanical structure have been received in good condition and appear no damage. ●This light is designed for indoor use, working temperature is lower than 50 degree. -
Page 5: Main Function
Main Function • high quality LED: low consumption, brightness, stable capability and long life • Each color of LED with 256 dimming. RGB can make over 16.7 million colors • dim 0%-100%, Strobe g radual change j umping change 、 、... - Page 6 Display Operation • MENU : access the menu or return to a previous menu option • ENTER: select the current menu option • UP: menu selection or parameter increments • DOWN: menu selection or parameters decrease Operating instruction 1. MENU is used to access the menu or return to a previous menu option. It can not be used to select and store the current menu option.
- Page 7 2. Press ENTER to access the further menu setting. This process can be saved automatically; that means you will enter the process saved previously when you activate the light next time. For example, if you want to choose DMX mode A001, operate as follows: •...
-
Page 8: Operating Control Instruction
Operating Control Instruction Master/Slave Master T he master should set as built-in program and shows” P - X – X” send out ： synchronization signals. To avoid the host signal and DMX512 signals interfere with each other, should cut off the DMX512 signals. The signal lines are longer than 60 meters should increase a signal amplifier. - Page 9 （ ） a resistance120Ω 1/4W at the end of the DMX connecting as below: The Conversion between 3pin and 5 pin XLR If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to 3PIN cable...
- Page 10 Connecting picture...
-
Page 11: Exploeded Views
Exploeded views... -
Page 12: Problem Analyze
Problem Analyze Problem Checking way Check the power source plug is in normal or not Can not turn on the Check the switch of the lights is off or on light Check it the fuse if in normal Check the DMX cable is connect to the lights or not DMX can not control Check the DMX512 controller work in normal or not Check the DMX cable is normal or not... - Page 13 Some of the LED not Use the multimeter to check if the led is bright or not, of light not, please change the led check whether current limiting resistor is normal or not Check constant current IC is normal or not (compared with the normal IC) Single color leds Check the switch of this color is normal or not...
-
Page 14: Technical's Specification
Technical Specification • Input voltage:220V/50HZ • Consume 1 5W ： • Lamp Type H igh Power LED ： • Lamp Spec 3 -in-1 9W 1PCS ： • Control Signal D MX512, sound activated, auto run ： • Control mode DMX/ auto run/sound activated / master and slaver ：... - Page 15 Copyright 2012 KANDOLITE. All rights reserved. Due to continuous improvements and innovations, specifications may change without notice.
