ELECTRONIC CYLINDER USER GUIDE
INSTALLATION USE AND MAINTENANCE INSTRUCTIONS FOR END USERS
USE INSTRUCTIONS
ATTENTION!
BEFORE INSERTING THE KEY INTO THE CYLINDER PLACE YOUR HAND ON THE WALL IN ORDER TO
ELIMINATE ANY ELECTROSTATIC CHARGE ACCUMULATED.
KEY WARNING LIGHTS
Battery charge status warnings without introducing User or Programming key into cylinder:
To see battery charge status keep centre of key grip pressed on warning light side for around 3 seconds:
• 1 green flash: battery charged
• 1 yellow flash: battery almost flat
• 1 red flash: battery flat
User key warnings whilst introducing key into cylinder:
• 1 green flash: key enabled to open; battery charged
• 1 yellow flash: key enabled to open; battery almost flat
• 1 red flash: key enabled to open; battery flat
• 2 red flashes: key not enabled to open
Programming key warnings whilst introducing key into cylinder:
• 1 green flash: key has already carried out operation on cylinder; battery charged
• 1 yellow flash: key has already carried out operation on cylinder; battery almost flat
• 1 red flash: key has already carried out operation on cylinder; battery flat
• 2 red flashes: key not enabled to carry out operations on cylinder
• Short green flashes: data loading or unloading operation. This operation stops with a visual warning that lasts twice as
long as previous flashes and is coloured:
o Green, if data transmission is correct and battery charged;
o Yellow, if data transmission is correct and battery almost flat;
o Red, if data transmission is correct and battery is flat;
o Double red flash, if error has been noted during data transmission

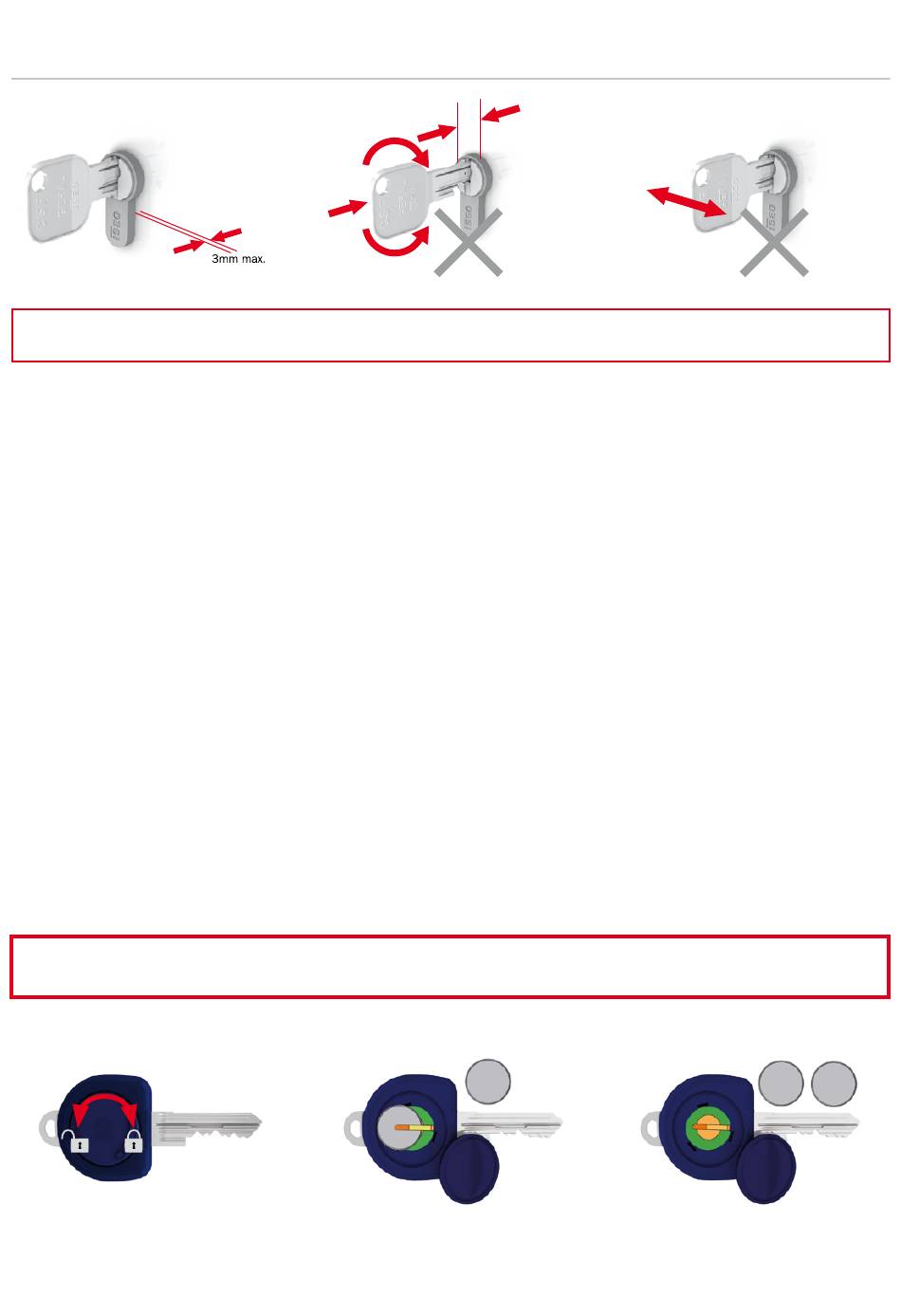

REPLACING BATTERIES IN KEY
ATTENTION!
BATTERIES MUST NOT BE REPLACED IN POTENTIALLY EXPLOSIVE ATMOSPHERE ROOMS
Use only LITHIUM SONY CR1620 3 Volt (70mAh) batteries.
Open cap turning in anti-clockwise
direction
Remove cap and lift gold tab
slightly. Turn key to remove
batteries
Insert new batteries, positioning
them one at a time under the gold
tab. Close cap turning in a clockwise
direction until locked
CSF
Advertisement
Table of Contents
Related Manuals for Iseo CSF Series
Summary of Contents for Iseo CSF Series
- Page 1 ELECTRONIC CYLINDER USER GUIDE INSTALLATION USE AND MAINTENANCE INSTRUCTIONS FOR END USERS USE INSTRUCTIONS ATTENTION! BEFORE INSERTING THE KEY INTO THE CYLINDER PLACE YOUR HAND ON THE WALL IN ORDER TO ELIMINATE ANY ELECTROSTATIC CHARGE ACCUMULATED. KEY WARNING LIGHTS Battery charge status warnings without introducing User or Programming key into cylinder: To see battery charge status keep centre of key grip pressed on warning light side for around 3 seconds: • 1 green flash: battery charged • 1 yellow flash: battery almost flat...
- Page 2 SETTING WILL BE LOST. IN THE LATTER CASE, RESTORE CLOCK SETTING BY SYNCHRONISING WITH PC SOFTWARE. Dispose of batteries in accordance with the applicable regulations in the Country. TEMPERATURE MAX: -20°+50°C CYLINDER LUBRICATION Iseo recommends to lubrificate cylinders at least once a year using “RIVOLTA T.R.S. plus” lubricant Lubrication should only be carried out as shown above: • clean teeth of key carefully • place a drop of lubricant on teeth • insert key into cylinder a few times Product compliance The product is in compliance with EMC Directives (electromagnetic compatibility).
