Waeco CoolMatic CR Series Manual

Waeco CoolMatic CR Series Manual

Compressor servicing and fault finding.

Advertisement

Quick Links

Compressor servicing
and fault finding
Guides for repair
WARNING!
please note: when working on the fridge you must isolate and disconnect the supply
www.dometic-waeco.com • technical@dometic.co.uk
CoolMatic CR Fridges

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CoolMatic CR Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Waeco CoolMatic CR Series

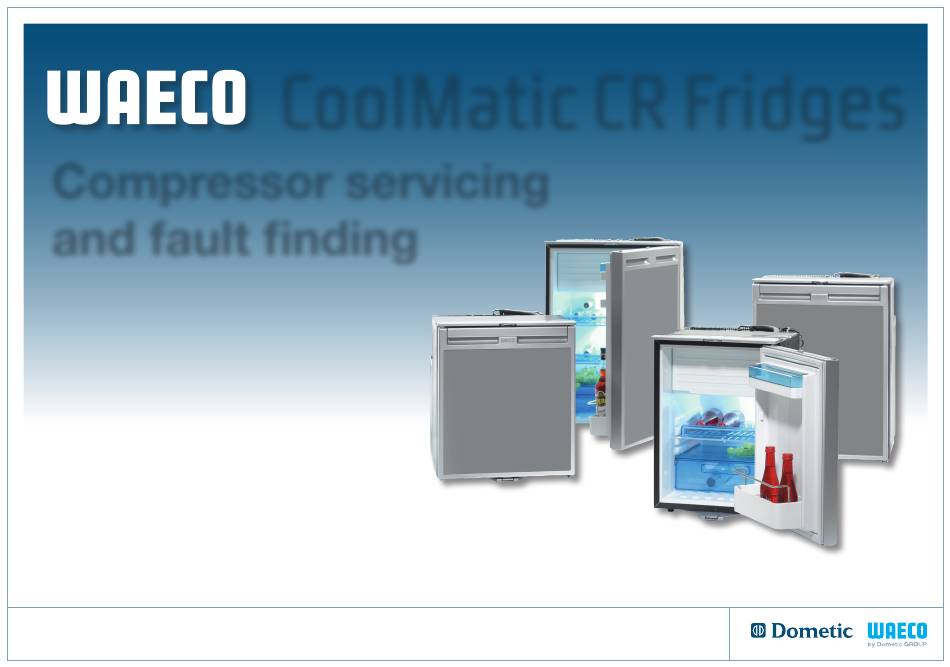

  • Page 1 CoolMatic CR Fridges Compressor servicing and fault finding • Model Range • Data Plate • Troubleshooting • Standard Spare Parts • Guides for repair WARNING! please note: when working on the fridge you must isolate and disconnect the supply www.dometic-waeco.com • technical@dometic.co.uk...
  • Page 2 Serial Number The data plate is located on the inside roof. Total Litres Supply Voltage Average running amps Refrigerant type and fill quantity Polyurethane Insulation Climate class: N (16º to 32º) T (18º to 43º) Page 2 www.dometic-waeco.com • technical@dometic.co.uk...
  • Page 3 The fridge has a climate class of N (16º to 32º) and T (18ºc to 43ºc). We’ve seen problems in vehicles when the ambient temp drops below 16ºc the fridge doesn’t switch back on. The ambient temp must be increased. Page 3 www.dometic-waeco.com • technical@dometic.co.uk...
  • Page 4 Standard Parts - Full parts list are available on request. Below is a list of standard used parts: DC Fan Thermostat CR range Electronic module DC only Electronic module AC/DC (CR-140) 4441200002 13-00-KPF1E (CRP040 4441100019) 4441000010 4441000039 Light voltage regulator LED bulb SP-065PCBASB 444160008 Page 4 www.dometic-waeco.com • technical@dometic.co.uk...
  • Page 5 3. Pull the handle up and out. The section is in a 4. Pull the standard décor panel out 1. Remove the seal from the top of the door the top T shape and replace with your desired panel 5. Reverse steps 4 to 1 Page 5 www.dometic-waeco.com • technical@dometic.co.uk...
  • Page 6 6. Disconnect the black plug 7. Carefully remove the 8. Loose the screws either side of the 9. Remove the thermostat control knob thermostat capillary probe thermostat Page 6 www.dometic-waeco.com • technical@dometic.co.uk...
  • Page 7 Testing the compressor windings - Repair Guide 1. Remove the electronic module 2. Use your voltage meter to check the resistance between the pins. All three pins should read around 2 ohms at 25º. Pins Ω Reading @ 25º 0844 626 0130 www.dometic-waeco.com • technical@dometic.co.uk...

This manual is also suitable for:

Cr-65Crp-040Cr-50Cr-80Cr-110Cr-140
