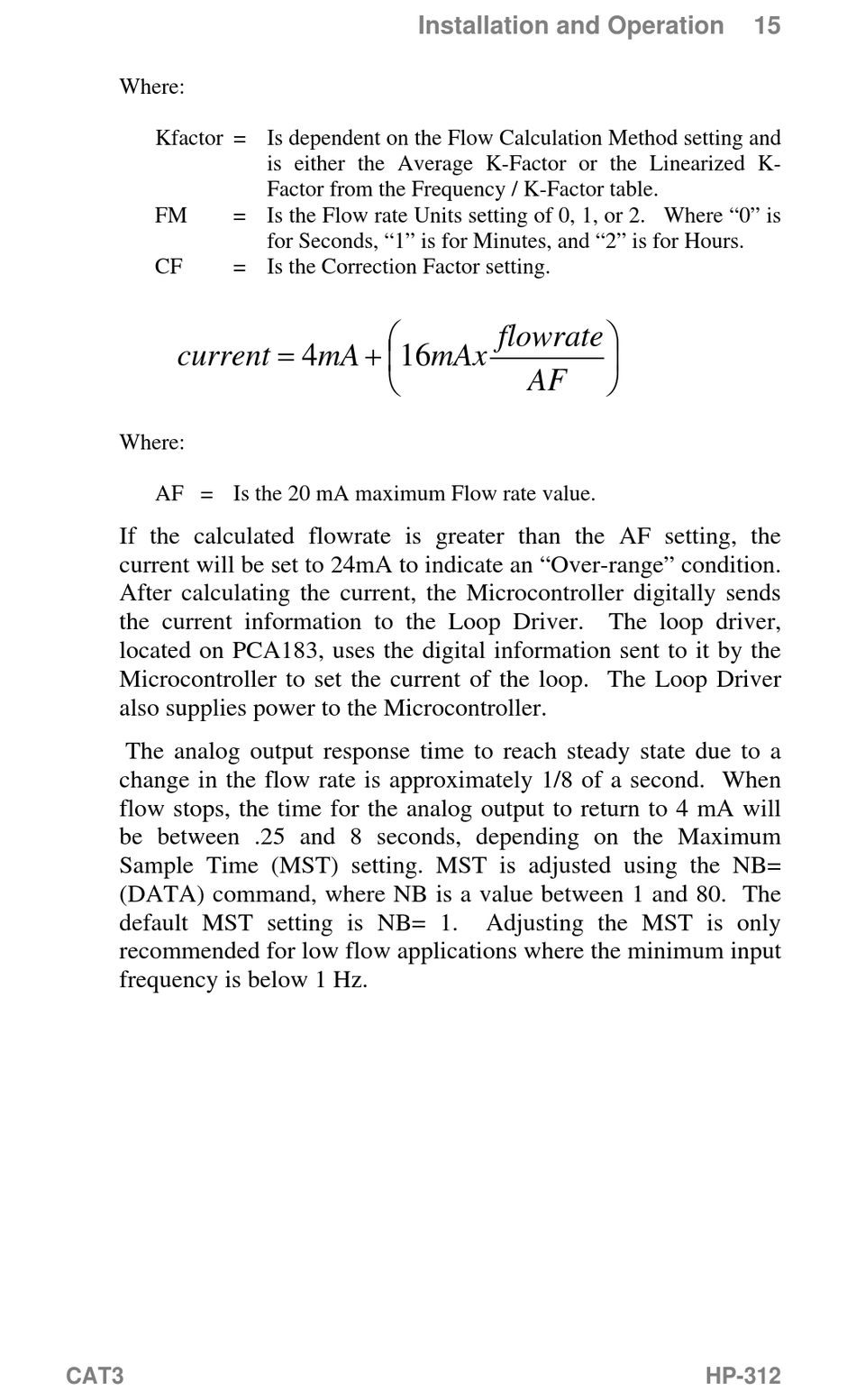

Where:
Kfactor = Is dependent on the Flow Calculation Method setting and
FM
CF
current
Where:
AF = Is the 20 mA maximum Flow rate value.
If the calculated flowrate is greater than the AF setting, the
current will be set to 24mA to indicate an "Over-range" condition.
After calculating the current, the Microcontroller digitally sends
the current information to the Loop Driver. The loop driver,
located on PCA183, uses the digital information sent to it by the
Microcontroller to set the current of the loop. The Loop Driver
also supplies power to the Microcontroller.
The analog output response time to reach steady state due to a
change in the flow rate is approximately 1/8 of a second. When
flow stops, the time for the analog output to return to 4 mA will
be between .25 and 8 seconds, depending on the Maximum
Sample Time (MST) setting. MST is adjusted using the NB=
(DATA) command, where NB is a value between 1 and 80. The
default MST setting is NB= 1.
recommended for low flow applications where the minimum input
frequency is below 1 Hz.
CAT3
is either the Average K-Factor or the Linearized K-
Factor from the Frequency / K-Factor table.
= Is the Flow rate Units setting of 0, 1, or 2. Where "0" is
for Seconds, "1" is for Minutes, and "2" is for Hours.
= Is the Correction Factor setting.

 

4 mA

Installation and Operation
flowrate
16 mAx
AF
Adjusting the MST is only
15



