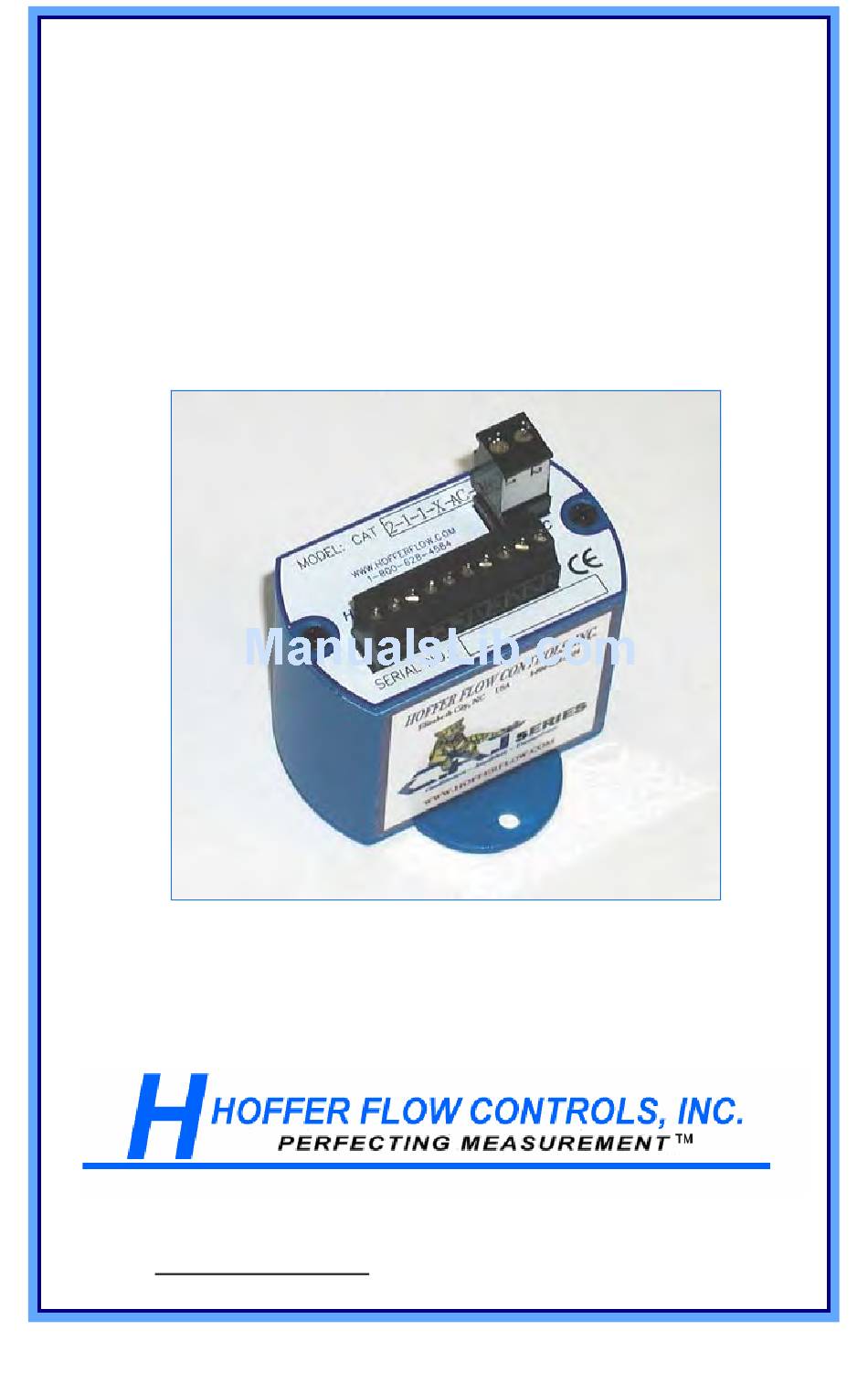

- Page 1 Model: CAT2 Versatile DC or AC Transmitter (Can Be Interfaced With Any Hoffer Flow Sensor) USER’S MANUAL HP-311 January 2015 107 Kitty Hawk Lane • P.O. Box 2145 • Elizabeth City, NC 27906- 2145 1-800-4584 • 252-331-1997 • FAX: 252-331-2886 www.hofferflow.com...
- Page 2 HP-311...
- Page 3 NOTICE HOFFER FLOW CONTROLS, INC. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. This manual has been provided as an aid in installing, connecting, calibrating, operating, and servicing this unit.
-
Page 4: Limited Warranty
LIMITED WARRANTY HOFFER FLOW CONTROLS, INC. ("HFC") warrants HFC's products ("goods") described in the specifications incorporated in this manual to be free from defects in material and workmanship under normal use and service, but only if such goods have been properly selected for the service intended, properly installed and properly operated and maintained. -
Page 5: Table Of Contents
CONTENTS Introduction --------------------------------------------------------- 1 1.1. Model Number Designation ---------------------------------- 2 Specifications-------------------------------------------------------- 5 Installation----------------------------------------------------------- 7 3.1. Power Supply --------------------------------------------------- 7 3.2. Flowmeter Input------------------------------------------------ 7 3.3. Pulse Output ---------------------------------------------------- 7 3.4. Analog Output -------------------------------------------------- 7 3.5. Alarm Outputs -------------------------------------------------- 7 3.6. Wiring Note----------------------------------------------------- 8 HP-311... -
Page 7: Introduction
Introduction 1. Introduction The CAT2 is a versatile DC or AC powered transmitter, which provides pulse output, analog output and High/Low flow alarm options. Up to 3 circuit boards may be installed to provide a variety of input/output options. CAT2 Block Diagram... -
Page 8: Model Number Designation
Introduction 1.1. Model Number Designation MODEL CAT2-( )- ( PULSE INPUT PULSE OUTPUT ANALOG OUTPUT POWER SUPPLY ALARM OUTPUT ENCLOSURE STYLE SPECIAL FEATURES PULSE INPUT MODEL CAT2-( )-( )-( ( A ) OPTION MAG COIL, PULSE, DRY CONTACT MC3P ISOLATED PULSE, RPM, RPR COILS... - Page 9 GENERAL PURPOSE. 2.6"L X 2.6"H X 2.6"W MINIMUM MOUNTING SPACE. 2" LONG DIN RAIL MOUNT SINGLE UNIT. UP TO 20 CAT2 UNITS CAN BE MOUNTED ON A SINGLE RAIL. ADD 2" PER UNIT. (E3) EXPLOSION-PROOF (ALL CONDUIT PORTS ARE ¾” FNPT) - CSA/FM: CLASS I, DIV.
- Page 10 Introduction (E3M) EXPLOSION-PROOF (CONDUIT PORTS D2 & D3 = M20 THR’D; CONDUIT PORTS D1- ¾" FNPT) - CSA/FM: CLASS I, DIV. 1, GR. BCD; CLASS II, DIV. 1, GR. EFG; CLASS III, TYPE 4X, IP66; CLASS 1 ZONE 1 AEx d IIB + H2, IP 66 - ATEX/IECEx: II 2 G Ex d IIB + H2, T1 –...
-
Page 11: Special Features
Introduction 5 SPECIAL FEATURES MODEL CAT2-( ( G ) OPTIONS (CE) MARK REQUIRED FOR EUROPE (CFX) 6.75" LONG RISER AND UNION FOR EXPLOSION-PROOF SYSTEM CERTIFIED ENCLOSURES MOUNTED ON TURBINE. USED WITH “X” RISER TURBINE OPTION. NOTE: IF PROCESS TEMP IS < -40°C AND > 85°C, EX-PROOF ENCLOSURE MUST BE MOUNTED REMOTELY. - Page 12 Introduction This page intentionally left blank HP-311...
-
Page 13: Specifications
Specifications 2. Specifications General Specifications Input Signal Type: Magnetic pick up, MCP pick up, Contact Closure, Pulse Input frequency range: 0.2 Hz to 4 KHz Signal level: 10 mV rms to 30 Vdc Power supply: 13-30 Vdc (Reverse polarity protected) 100-240 Vac (Fuse rating 0.5A, 250 Vac Analog Output: 4-20mA, 1-5V, 0-5V, 0-10V... - Page 14 Specification This page intentionally left blank. HP-311...
-
Page 15: Installation
POWER SUPPLY ANLG PULSE+ PULSE- PCA180 AC Power (100-240 VAC) AC power for CAT2 requires an optional circuit board, PCA182. The Alarm option (PCA184) is not available when the AC Power option is equipped. SIG+ SIG- ANLG PULSE+ PULSE- PCA180... -
Page 16: Flowmeter Input
Installation 3.2. Flowmeter Input The Preamp circuitry for conditioning the flow signal is located on PCA180. The following drawings illustrate typical connections and switch settings on PCA180 for various input signals. Magnetic Pickup Coil SIG+ SIG- ANLG PULSE+ PULSE- PCA180 Mag Pickup Coil MCP/RF Coil SIG+... - Page 17 Installation Redi-Pulse (TTL Pulse) SIG+ SIG- ANLG PULSE+ PULSE- PCA180 Redi-Pulse (TTL) Pickup Coil Redi-Pulse (Open Collector) SIG+ SIG- ANLG PULSE+ PULSE- PCA180 Redi-Pulse (Open Collector) Pickup Coil HP-311...
-
Page 18: Pulse Output
3.3. Pulse Output The pulse output circuitry for CAT2 is located on PCA180. The pulse output is scalable by a factor of 1, 2, 4, 8, 16 and 32 of the input frequency by selecting the proper switch on SW2. Scaling of the pulse output may be limited if an analog output is used in conjunction with the pulse output. - Page 19 Installation Open Collector, Isolated Pulse USER DCS SIG+ SIG- 2.7K ANLG PULSE PULSE+ INPUT PULSE- PCA180 PCA180 Open Collector Isolated Pulse HP-311...
-
Page 20: Analog Output
COURSE SPAN and FINE SPAN adjusts the max flow output. All pots are labeled accordingly on the circuit board and may be accessed by removing the top plate from CAT2. The 0-20mA, 0-5V and 0-10V options require no ZERO adjustment. Contact the factory for detailed calibration instructions before making any adjustments. -
Page 21: Alarm Outputs
Installation 3.5. Alarm Outputs CAT2 provides an optional High/Low Flow Alarm feature. The Alarms require an optional circuit board, PCA184. The Alarm option is not available when the AC Power option is equipped. The following drawings illustrate typical connections and switch settings for various alarm output options. -
Page 22: Wiring Note
When installing CAT2, it is a good practice to use shielded cables for all input and output signals. The shield should be connected to the earth ground lug on the CAT2. The shield on the opposite end of the cable should be left open.
