Hoffer Flow Controls CAT3 User Manual page 17

Dc or ac powered microprocessor controlled transmitter
Hide thumbs
Table of Contents

Advertisement

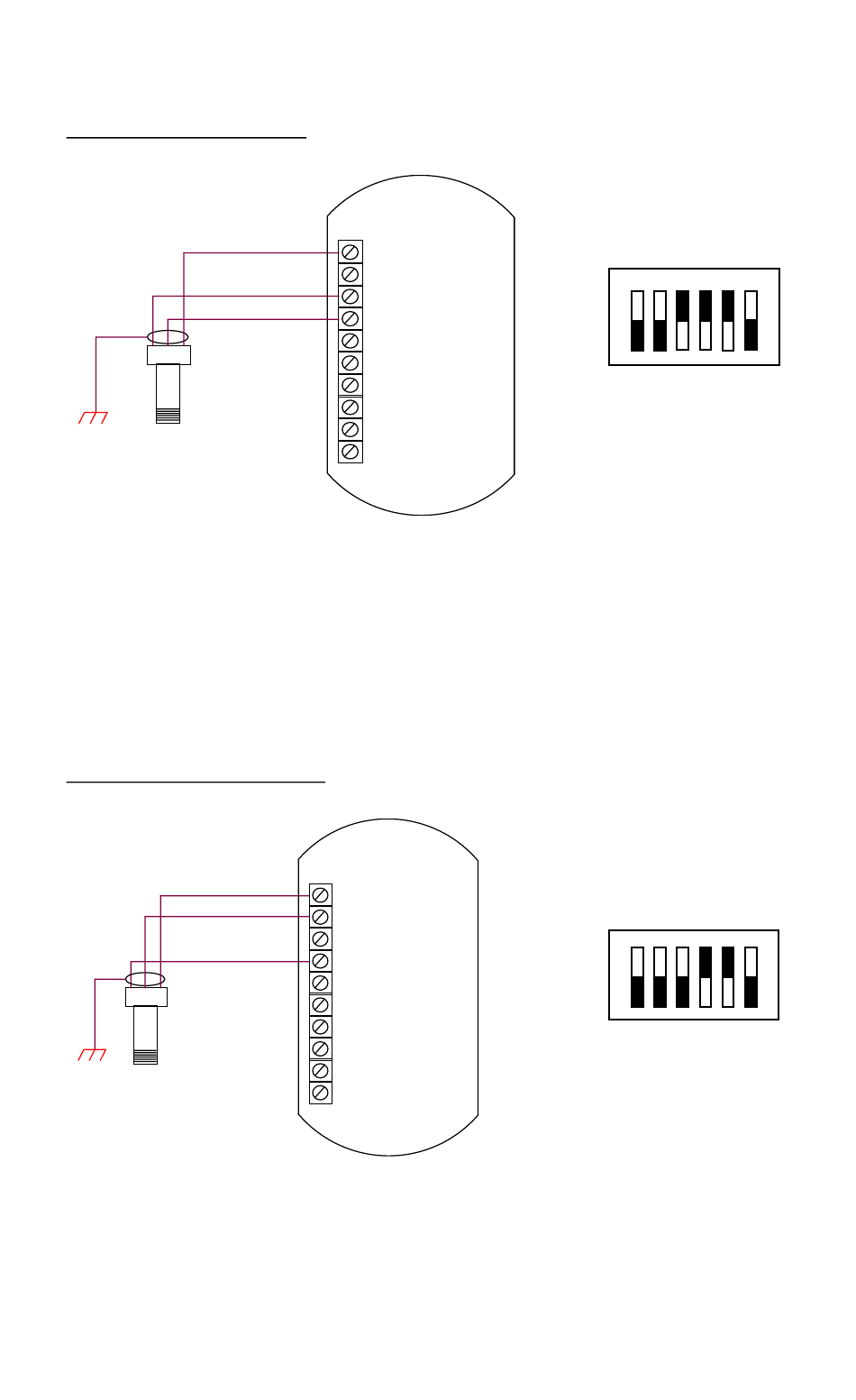

Redi-Pulse (TTL Pulse)
C
B A
Redi-Pulse (TTL) Pickup Coil
Redi-Pulse (Open Collector)
C
B
A
Redi-Pulse (Open Collector)
Pickup Coil
CAT3
Installation and Operation
DC+
DC-
SIG+
SIG-
ANLG
PULSE+
PULSE-
N/C
N/C
N/C
DC+
DC-
SIG+
SIG-
ANLG
PULSE+
PULSE-
N/C
N/C
N/C
1
PCA180
SW1
1
PCA180
SW1
HP-312
11
