14 Installation and Operation

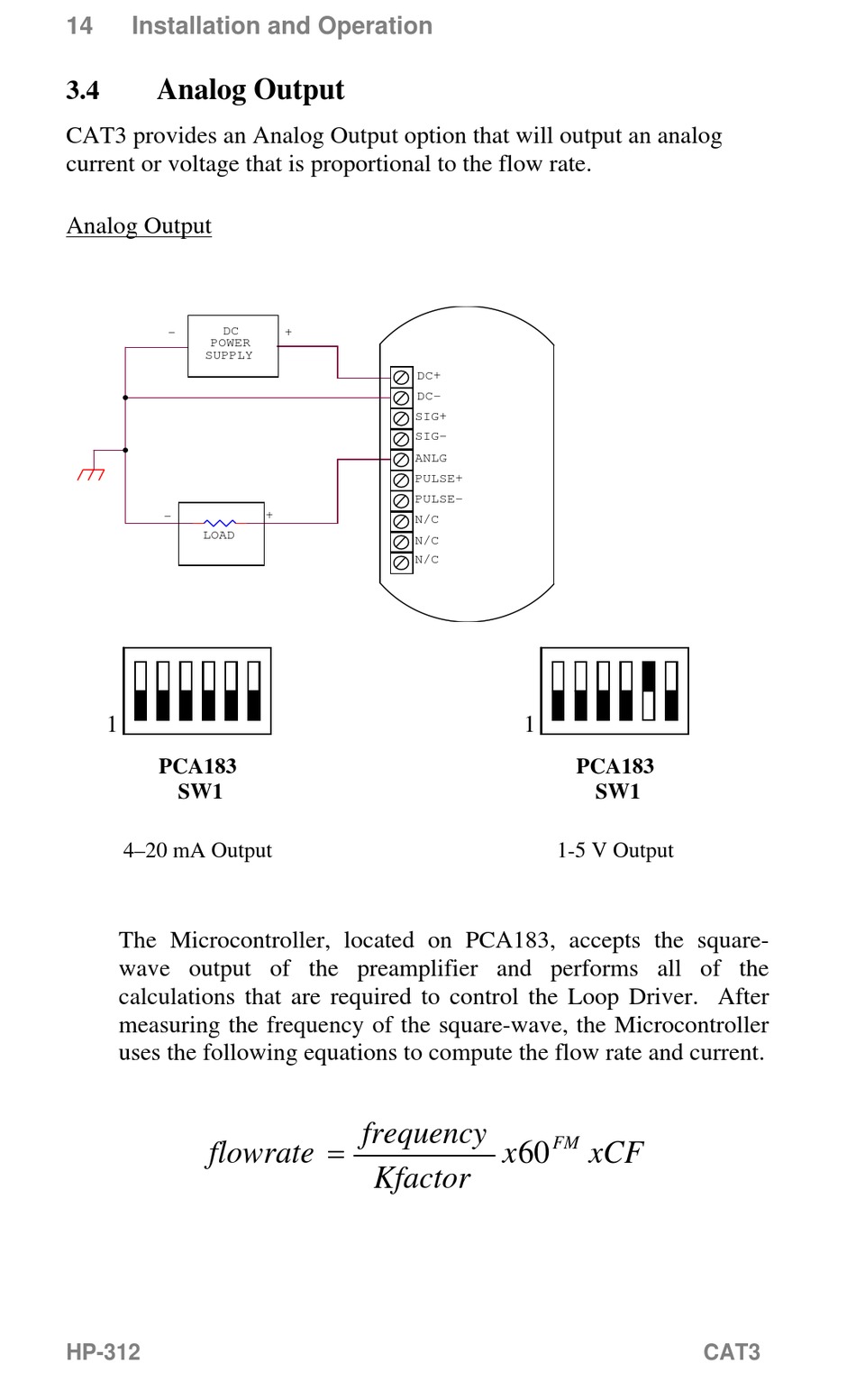

Analog Output

3.4
CAT3 provides an Analog Output option that will output an analog
current or voltage that is proportional to the flow rate.
Analog Output
DC
-
POWER
SUPPLY
-
LOAD
1
PCA183
SW1
4–20 mA Output
The Microcontroller, located on PCA183, accepts the square-
wave output of the preamplifier and performs all of the
calculations that are required to control the Loop Driver. After
measuring the frequency of the square-wave, the Microcontroller
uses the following equations to compute the flow rate and current.
flowrate
HP-312
+
DC+
DC-
SIG+
SIG-
ANLG
PULSE+
PULSE-
+
N/C
N/C
N/C
frequency

Kfactor
1
PCA183
SW1
1-5 V Output
FM
x 60 xCF
CAT3
