Summary of Contents for Chroma Color Block DB4
- Page 2 Chroma-Q™ Color Block™ DB4 User Manual Version 1.2 September 2012 PN: 602-0500...
- Page 3 (c) by operation outside the specifications contained in the user documentation; (d) by the use of spare parts not manufactured or sold by Chroma-Q or by the connection or integration of other equipment or software not approved by Chroma-Q unless the Customer provides acceptable proof to Chroma-Q that the defect or damage was not caused by the above;...
- Page 4 Chroma-Q products are safe, effective, and fully satisfactory for the intended end use. Suggestions of use shall not be taken as inducements to infringe any patent. Chroma-Q sole warranty is that the product will meet the sales specifications in effect at the time of shipment.
-
Page 5: Table Of Contents
HIS v RGB ……………………………………….………. 8 b. Internal FX engine ……………………………………….………. 8 Technical Information …..……..……………………..…………….…………. 9 a. Specification ……………………………………….………. 9 b. Photometric performance ……………………………………….………. 9 c. Maintenance ……………………………………….………. 9 d. Accessories ……………………………………….……... 10 www.chroma-q.com Color Block DB4 User Manual V1.2 September 2012... -
Page 6: Product Overview

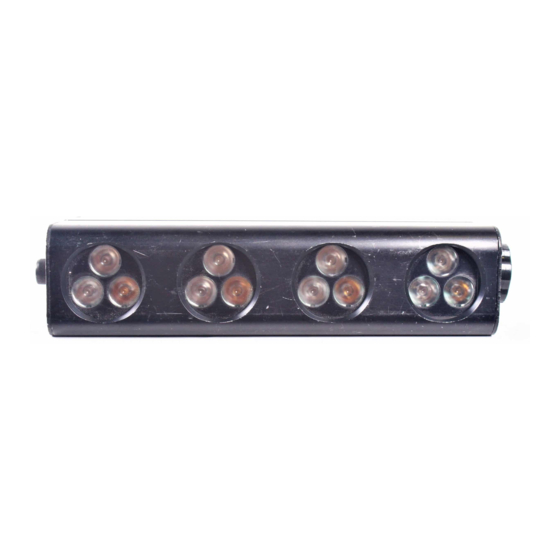

- including battens, blinders, truss toners and various mounting configurations using the built in fixings. Each Color Block DB4 fixture features four sets of three high output LEDs which produce an intense, powerful light and vibrant colours across the spectrum. -
Page 7: Cabling
The Color Block power supplies deliver power and data via XLR4. A maximum of five daisy-chained Color Block DB4 fixtures can be connected to one cable. Return lines are not required. The total cable length of each chain must not exceed 60 meters (200ft). -
Page 8: Batten Bracket Kit For Up To Five Fixtures
The yoke kit for single fixture is supplied as a yoke bracket with fibre washers and thumb wheels. The yoke kit can be used for floor mounting (see photo), direct wall mounting and truss mounting when used in conjunction with hook clamps or half couplers. www.chroma-q.com Color Block DB4 User Manual V1.2 September 2012... -
Page 9: Blinder Frame For Four Fixtures
The Wall bracket for single fixture is a discrete fixing suitable for fixing a single Color Block to a wall or set piece. Keyhole slots are provided to for vertical or horizontal fixing. www.chroma-q.com Color Block DB4 User Manual V1.2 September 2012... -
Page 10: Control
Ch5 - Colour Step, variable control of smoothness of colour scrolling Ch6 - Intensity Effects, wide selection of intensity fading and snapping effects Ch7 - Intensity Fan, variable fan of intensity effects www.chroma-q.com Color Block DB4 User Manual V1.2 September 2012... -
Page 11: Technical Information
Maintenance With care the Color Block DB4 will require little maintenance. However, as the unit is likely to be used in a stage environment we recommend periodical internal inspection and cleaning of any resulting dust and cracked oil residue. -
Page 12: Accessories
The LED pipe blends and diffuses the RGB LED output of adjacent cells, taking the resulting colour. The LED pipe is particularly effective at linear colour chase effects. www.chroma-q.com Color Block DB4 User Manual V1.2 September 2012...
