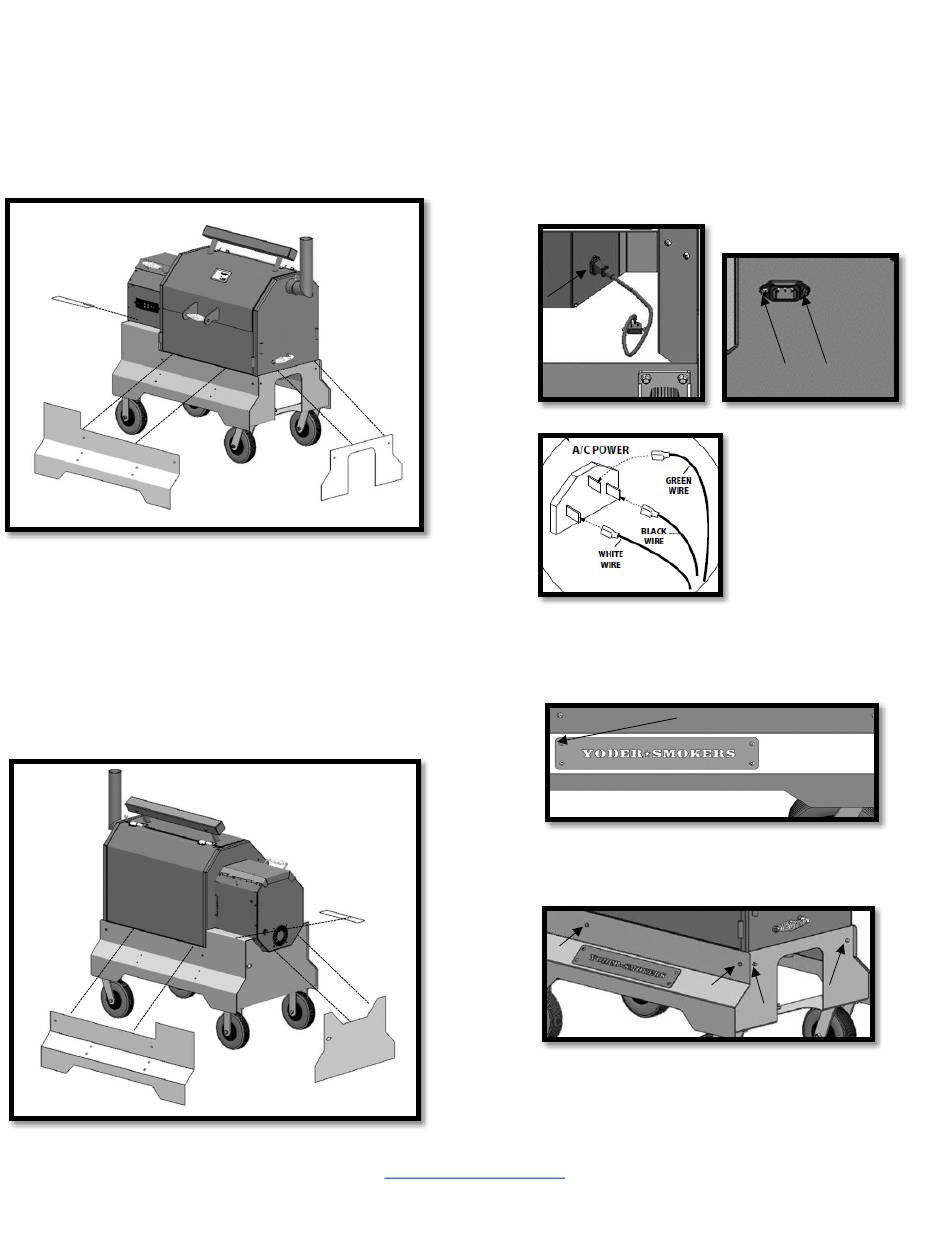

Yoder Smokers YS640 Installation Instructions page 2

4. Install the front panel and chimney end panel by
aligning the top edge of the magnet panel to the top
edge of the comp cart. Starting from the top, smooth
out the wrap to fit the contours of the panel and
ensure all bolt holes line up. Center the hopper trim
panel to the top side of the cart next to the hopper. If
you are having issues with the front panel not fitting to
the contour of the cart, try warming up the surface
with a hair dryer as previously mentioned. (FIG 7)
FIG 7
5. Install the back panel and hopper end panel by
aligning the top edge of the magnet panel to the top
edge of the comp cart. Starting from the top, smooth
out the wrap to fit the contours of the panel and
ensure all bolt holes line up. Center the hopper trim
panel to the top side of the cart next to the hopper. If
you are having issues with the back panel not fitting to
the contour of the cart, try warming up the surface
with a hair dryer as previously mentioned. (FIG 8)
FIG 8
Ensure the magnetic wrap is smooth, all bolt holes in
6.
the wrap line up with the holes in the cart, and that all
pieces are properly located. Insert the power cord
extension through the opening of the comp cart and
plug the cord into the hopper. (FIG 9) Then secure the
power socket using the Phillips screwdriver and 5/16"
wrench. (FIG 10)
the power socket in step 3, refer to (FIG 11) for wire installation
to power socket.
FIG 11
7. Use the 5/32" Allen wrench and 7/16" wrench to
secure the Yoder Smokers signs onto both sides of
the comp cart shown in FIG 12.
FIG 12
8. Use the 3/8" Wrench and 7/16" wrench to secure the
6 bolts onto the comp cart shown in FIG 13.
www.yodersmokers.com
1.877.409.6337
*NOTE* if you removed the 3 wires from
FIG 10
FIG 9
FIG 13
