Carrier CRECOMZR 004A01 Series Installation Instructions Manual

Part Numbers: CRECOMZR--004A01, CRECOMZR--005A01
CRECOMZR--006A01, CRECOMZR--007A01

TABLE OF CONTENTS

GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1,2
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . 2
VERTICAL ECONOMI$ER INSTALLATION . . . . . . 2-5
HORIZONTAL ECONOMI$ER
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ACCESSORY INSTALLATION . . . . . . . . . . . . . . . . . . 7-12
Accessory Hinged Panels . . . . . . . . . . . . . . . . . . . . . . . . 7
Standard Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Power Exhaust Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Auxiliary Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Actuator Auxiliary Switch Adjustment . . . . . . . . . . . 11
COMMISSIONING . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12,13
CO Control Set Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2
Mechanical Cooling Lockout . . . . . . . . . . . . . . . . . . . . 12
Dry-Bulb Changeover Set Up . . . . . . . . . . . . . . . . . . . . 12
Ventilation Air (Minimum Position
Set Up) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13,14
Differential Enthalpy Switchover
Strategy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . 14-16
LED Indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Manual Configuration Pushbutton . . . . . . . . . . . . . . . 14
Sensor Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . 14

GENERAL

The accessory EconoMi$er package uses microprocessor-
based controls to sequence mechanical cooling with cool out-
door air (free cooling) to satisfy the cooling load and minimize
energy consumption. Free cooling can be used alone or in con-
junction with mechanical cooling.
The standard economizer uses a dry bulb sensor to sense
Outdoor Air Temperature (OAT). This sensor provides two
functions for the EconoMi$er controller: it determines the
availability of free cooling (EconoMi$er changeover); and it
disables compressors at low ambient temperatures (mechanical
cooling lockout).
When free cooling is available, the EconoMi$er sequences
free cooling with up to two stages of mechanical cooling to
maintain comfort in the space. When free cooling is not avail-
able, the EconoMi$er modulates to an adjustable minimum
position set point to maintain a supply of fresh air entering the
building.
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
PC 111
Book 1 1 1 4 4 4
Tab 1a 1b 5a 5a 6a 6b
Installation Instructions
Page
Catalog No. 534-80004 Printed in U.S.A.
Gas Heating/Electric Cooling,
Electric Cooling, and Heat Pump Units
Accessory EconoMi$er Package
with Power Exhaust and Auxiliary Sensors
Cancels: IIK 548-36-33
Barometric relief dampers provide natural building pressur-
ization control. An optional power exhaust system is available
for jobs requiring greater relief.
The microprocessor CO
2
of an accessory CO sensor in the space or in return air duct-
2
work. When the EconoMi$er recognizes the presence of the
CO sensor, a ventilation control strategy automatically begins
2
to operate. The outdoor air damper modulates open past mini-
mum position as the CO level in the space increases over the
2
adjustable set point.
See Fig. 1 and 2 for EconoMi$er component locations. See
Table 1 for Package Usage and Contents.
ECONOMI$ER
PLUG

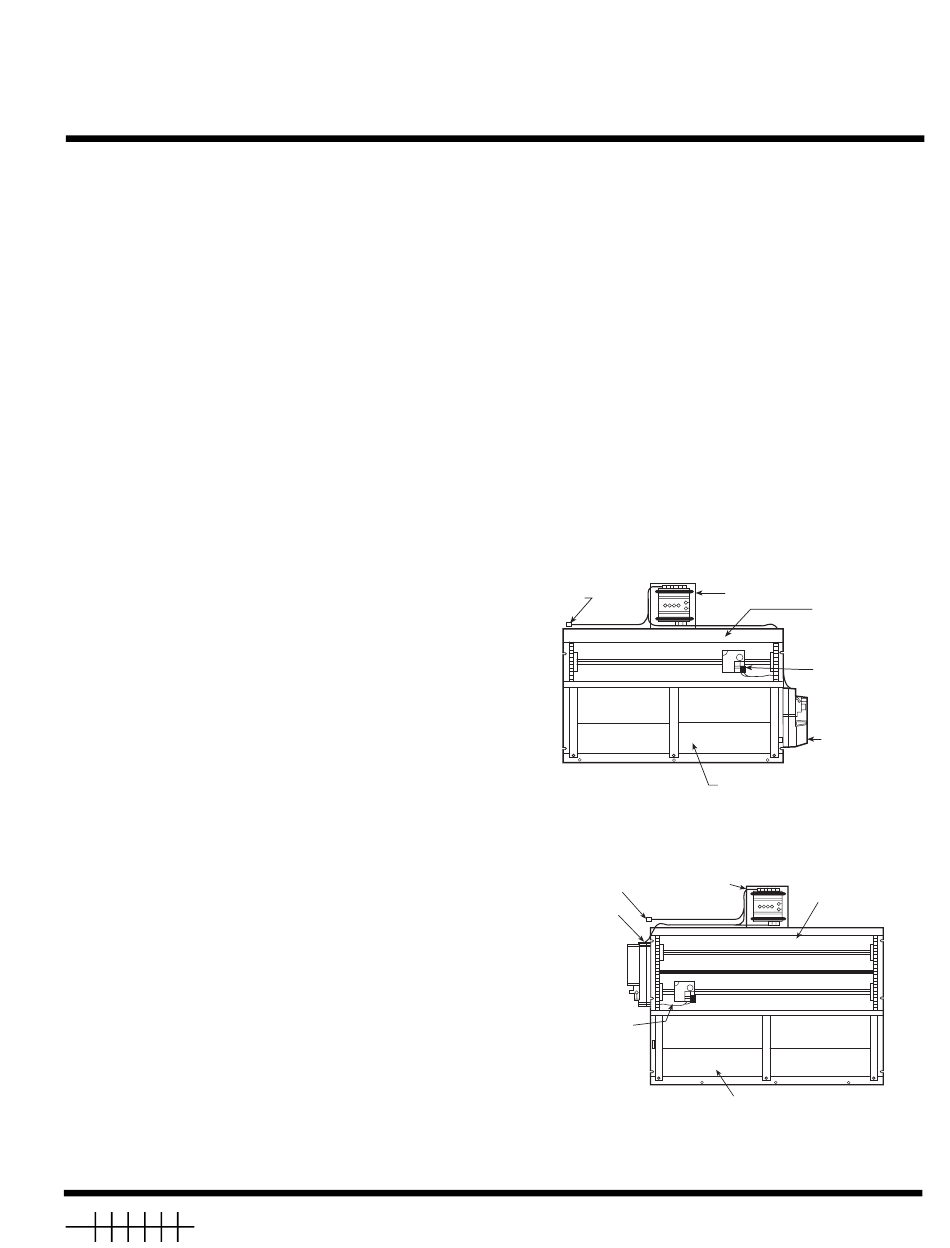

Fig. 1 - 3 to 6 Ton EconoMi$er
Component Locations
ECONOMI$ER CONTROLLER
PLUG
ACTUATOR
OUTDOOR AIR
TEMPERATURE
SENSOR
1
Fig. 2 - 7 / to 12
2
Component Locations
Form 48/50-56SI Pg 1
Small Rooftop Products
1
3 to 12 / Tons
2
IIK 548-36-35
1/15/01
input terminals allow the addition
CONTROLLER
GEAR-DRIVEN
DAMPER
OUTDOOR AIR
TEMPERATURE
SENSOR
ACTUATOR
BAROMETRIC RELIEF DAMPERS
GEAR-DRIVEN
DAMPER
BAROMETRIC
RELIEF DAMPERS
1
/ Ton EconoMi$er
2
1-01 Replaces: 48/50-49SI
