3.

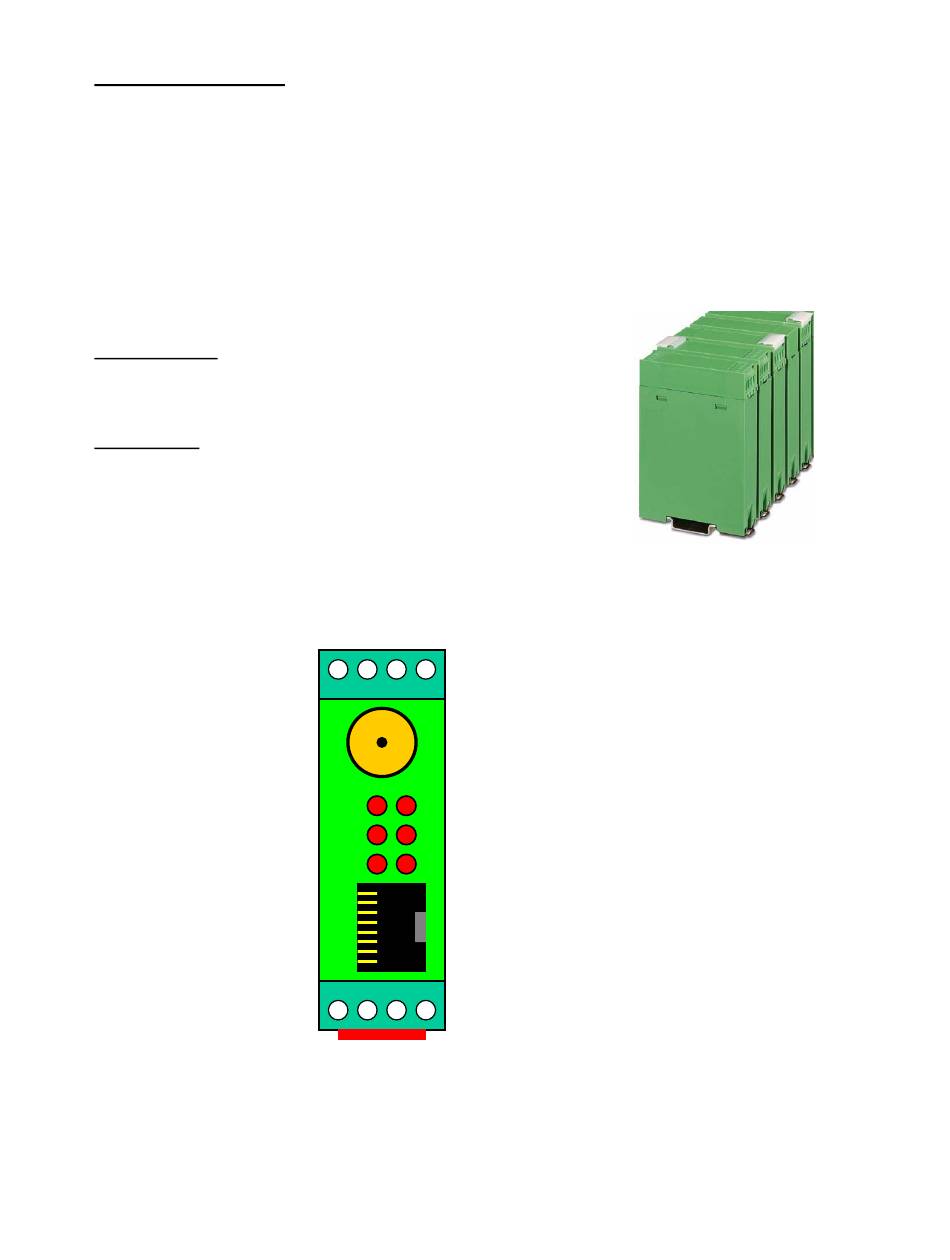

Specifications

3.1

Housing

Phoenix Contact EG22,5 ABS DIN rail housing
(EG22.5-G/ABS GN + EG22.5-A/ABS GN)
• 22.5 mm 107.5 mm x 75 mm
• IP40
• Symmetrical DIN rail mounting according EN50 022
• Green color
Standard ABS
Acryl Butadiene Styrene – Tmax = 80 °C
Inflammability class acc. to UL 94 : HB
Optional PC (only on special request)
Polycarbonate – Tmax = 115 °C
metal DIN-rail clip
Inflammability class acc. to UL 94 : V0
3.2

Connectors

Bausch Datacom NV
DinBox GSM/GPRS Reference manual – V1.0
I/O connections
4 3 2 1
Antenna
SMA
uP GSM
DTR DCD
TXD RXD
Serial DTE
RJ-45
x x
- +
Not Power
Used Supply
