IDS404 INSTALLER MANUAL

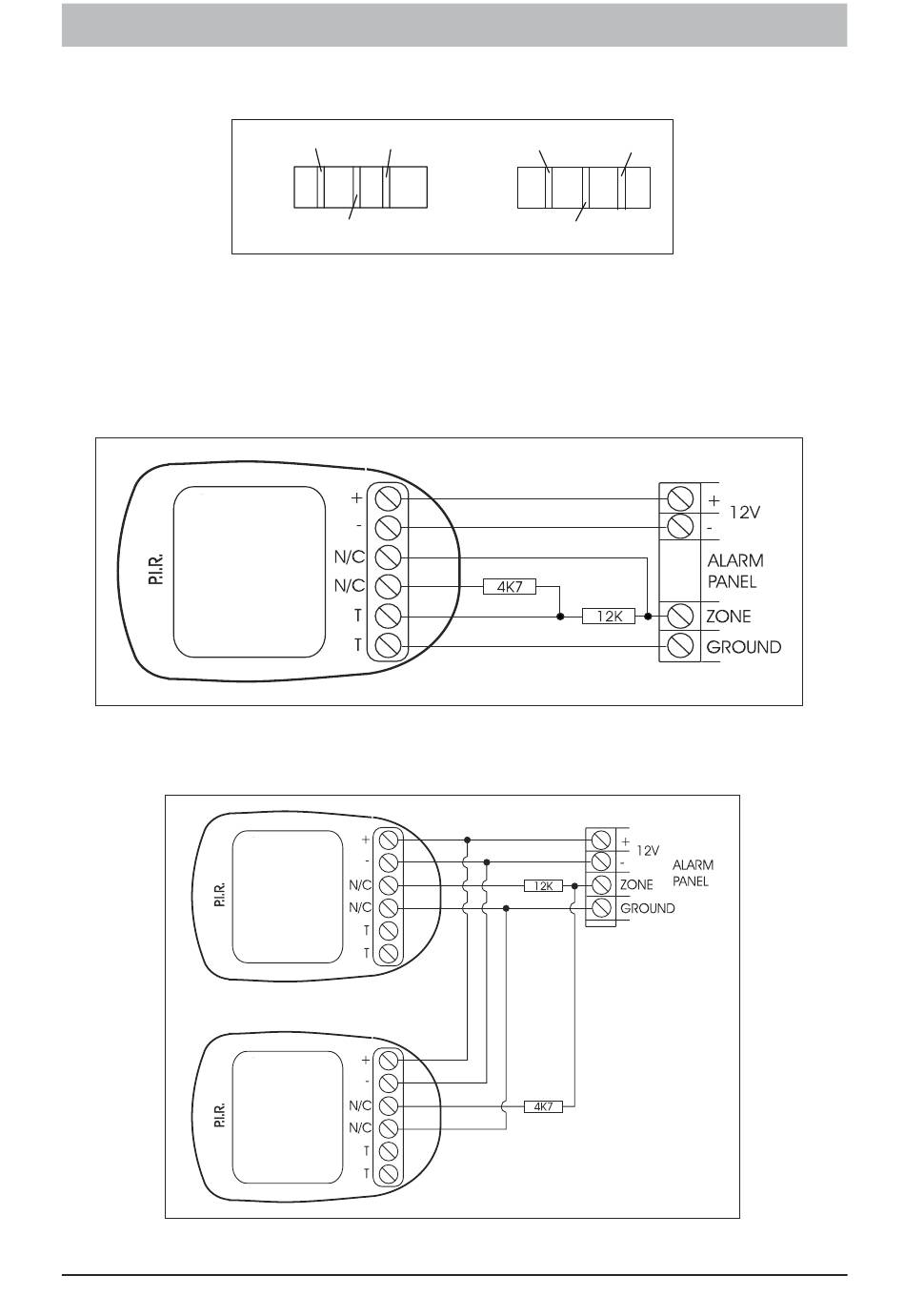

Figure 2: Resistors used for Tamper per Zone and Zone doubling

Yellow Red
Brown Orange
12K
4K7
Red
Purple
NOTE: The 4K7 and 12K zone doubling resistors are not included with
the panel but may be obtained from your local IDS distributor.

Figure 3: Tamper per Zone Connection

Figure 4: Connection for Zone Doubling

8
IDS404 INSTALLER MANUAL NO. 700-277-02A ISSUED SEPT 2004 VER 1.02
