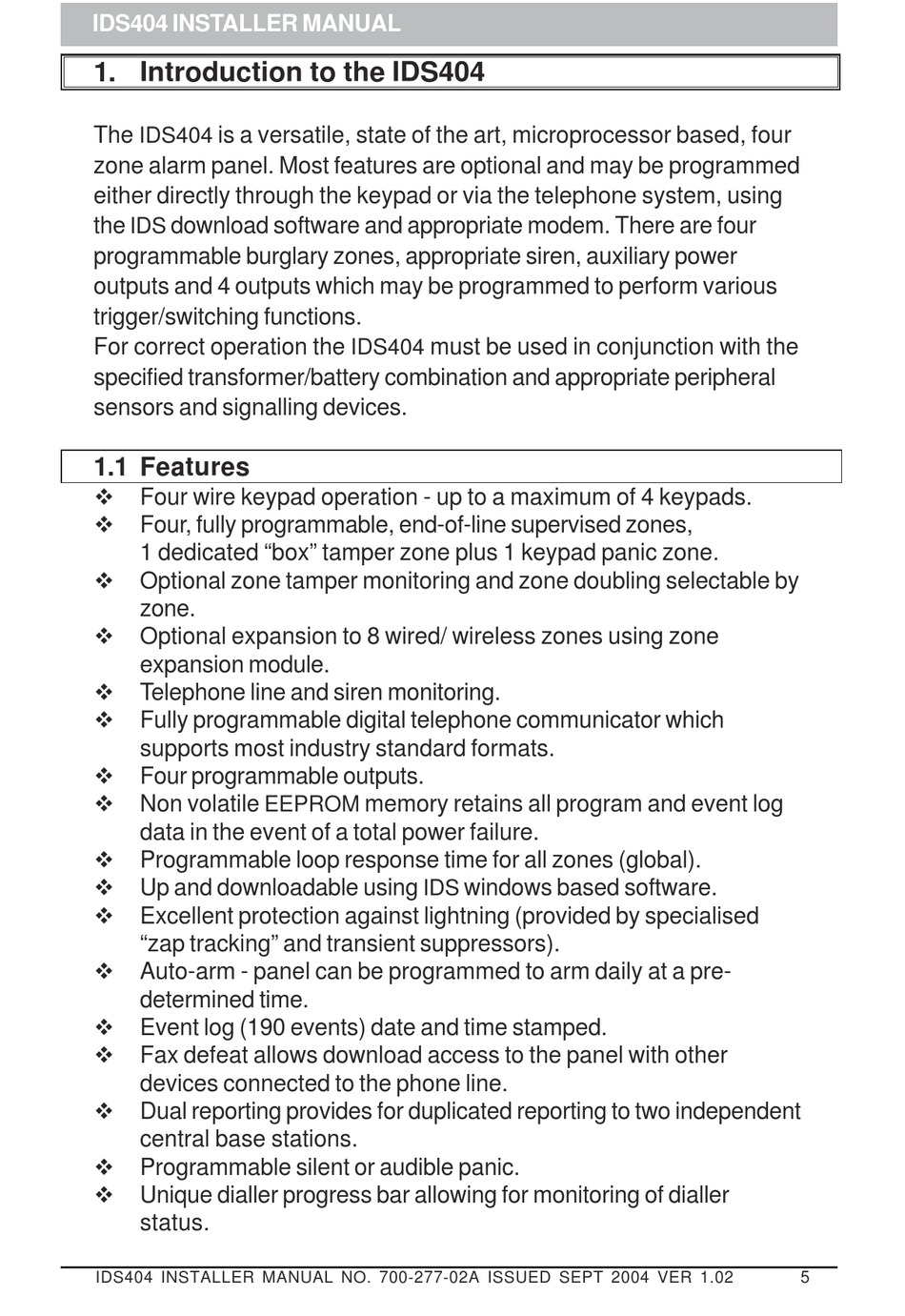

IDS404 INSTALLER MANUAL

1. Introduction to the IDS404

The IDS404 is a versatile, state of the art, microprocessor based, four
zone alarm panel. Most features are optional and may be programmed
either directly through the keypad or via the telephone system, using
the IDS download software and appropriate modem. There are four
programmable burglary zones, appropriate siren, auxiliary power
outputs and 4 outputs which may be programmed to perform various
trigger/switching functions.
For correct operation the IDS404 must be used in conjunction with the
specified transformer/battery combination and appropriate peripheral
sensors and signalling devices.

1.1 Features

!
Four wire keypad operation - up to a maximum of 4 keypads.
!
Four, fully programmable, end-of-line supervised zones,
1 dedicated "box" tamper zone plus 1 keypad panic zone.
!
Optional zone tamper monitoring and zone doubling selectable by
zone.
!
Optional expansion to 8 wired/ wireless zones using zone
expansion module.
!
Telephone line and siren monitoring.
!
Fully programmable digital telephone communicator which
supports most industry standard formats.
!
Four programmable outputs.
!
Non volatile EEPROM memory retains all program and event log
data in the event of a total power failure.
!
Programmable loop response time for all zones (global).
!
Up and downloadable using IDS windows based software.
!
Excellent protection against lightning (provided by specialised
"zap tracking" and transient suppressors).
!
Auto-arm - panel can be programmed to arm daily at a pre-
determined time.
!
Event log (190 events) date and time stamped.
!
Fax defeat allows download access to the panel with other
devices connected to the phone line.
!
Dual reporting provides for duplicated reporting to two independent
central base stations.
!
Programmable silent or audible panic.
!
Unique dialler progress bar allowing for monitoring of dialler
status.
IDS404 INSTALLER MANUAL NO. 700-277-02A ISSUED SEPT 2004 VER 1.02 5
