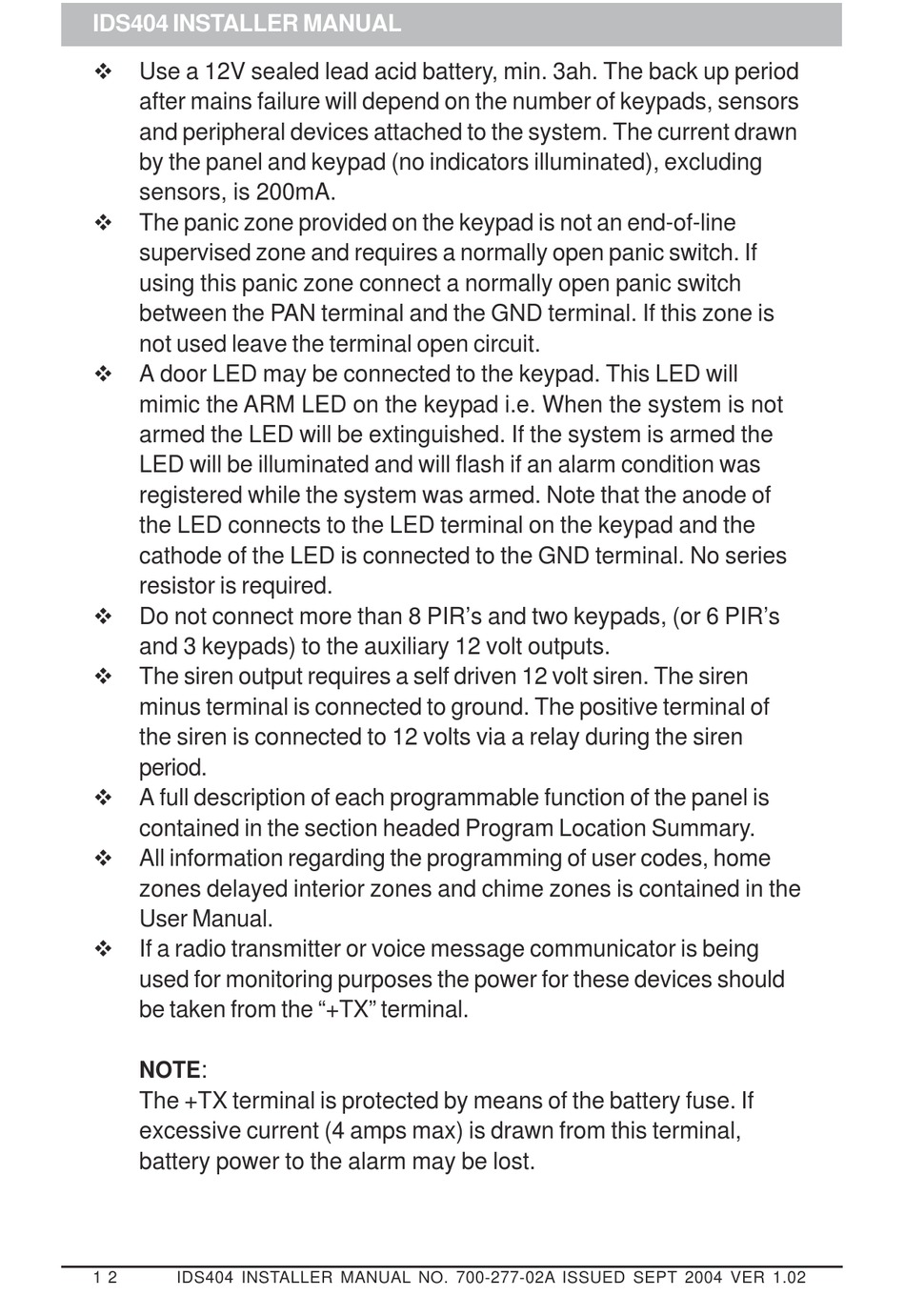

IDS404 INSTALLER MANUAL
!
Use a 12V sealed lead acid battery, min. 3ah. The back up period
after mains failure will depend on the number of keypads, sensors
and peripheral devices attached to the system. The current drawn
by the panel and keypad (no indicators illuminated), excluding
sensors, is 200mA.
!
The panic zone provided on the keypad is not an end-of-line
supervised zone and requires a normally open panic switch. If
using this panic zone connect a normally open panic switch
between the PAN terminal and the GND terminal. If this zone is
not used leave the terminal open circuit.
!
A door LED may be connected to the keypad. This LED will
mimic the ARM LED on the keypad i.e. When the system is not
armed the LED will be extinguished. If the system is armed the
LED will be illuminated and will flash if an alarm condition was
registered while the system was armed. Note that the anode of
the LED connects to the LED terminal on the keypad and the
cathode of the LED is connected to the GND terminal. No series
resistor is required.
!
Do not connect more than 8 PIR's and two keypads, (or 6 PIR's
and 3 keypads) to the auxiliary 12 volt outputs.
!
The siren output requires a self driven 12 volt siren. The siren
minus terminal is connected to ground. The positive terminal of
the siren is connected to 12 volts via a relay during the siren
period.
!
A full description of each programmable function of the panel is
contained in the section headed Program Location Summary.
!
All information regarding the programming of user codes, home
zones delayed interior zones and chime zones is contained in the
User Manual.
!
If a radio transmitter or voice message communicator is being
used for monitoring purposes the power for these devices should
be taken from the "+TX" terminal.
:
NOTE
The +TX terminal is protected by means of the battery fuse. If
excessive current (4 amps max) is drawn from this terminal,
battery power to the alarm may be lost.
1 2 IDS404 INSTALLER MANUAL NO. 700-277-02A ISSUED SEPT 2004 VER 1.02
