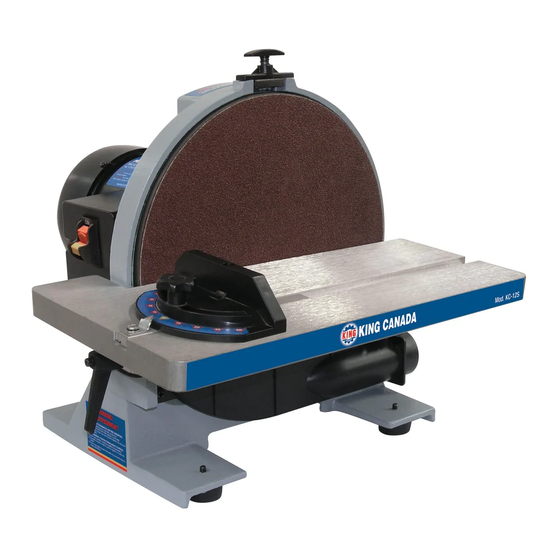

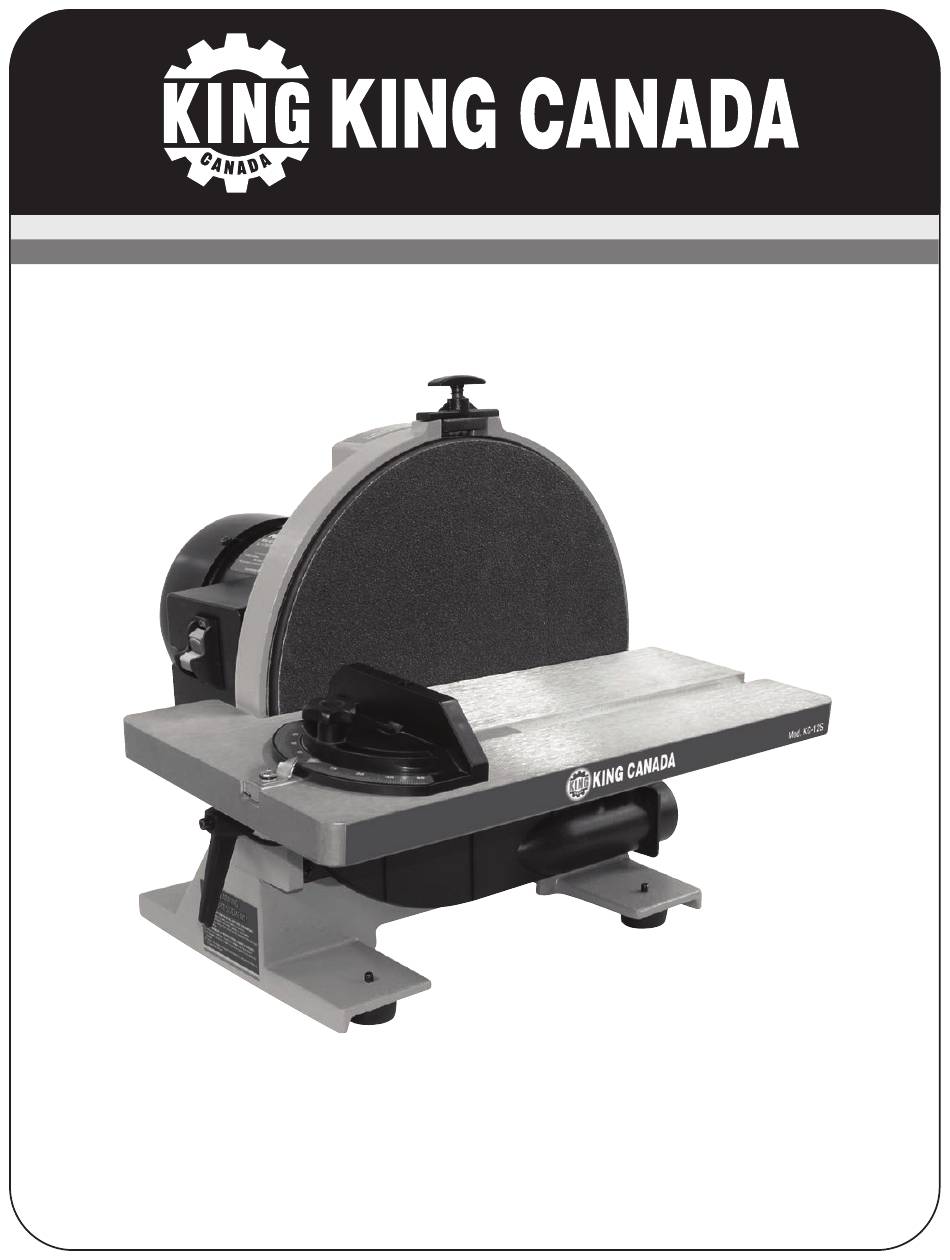

- Page 1 12” DISC SANDER wITh bRAKE 09/2015 INSTRUCTION MANUAL MODEL: KC-12S COPYRIGHT © 2015 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
King Canada service center. Contact your retailer or visit our web site at www.kingcanada.com for an updated listing of our authorized service centers. In cooperation with our authorized serviced center, King Canada will either repair or replace the product if any part or parts covered under this warranty which examination proves to be defective in workmanship or material during the warranty period. - Page 3 GENERAL & SPECIFIC SAFETY INSTRUCTIONS FOR YOUR DISC SANDER 1. KNOw YOUR TOOL watch) because they could get caught in moving parts. Non-slip footwear is recommended. Wear protective hair covering to Read and understand the owners manual and labels affixed to the contain long hair.
- Page 4 SPECIFIC SAFETY INSTRUCTIONS FOR YOUR DISC SANDER Inspect your workpiece. If any part is missing, bent, or broken in any way, or any electrical parts don’t work properly, turn the sander off and unplug. REPLACE dam- Make sure there are no nails or foreign objects in the workpiece to be aged, missing or failed parts before using the sander again.
-
Page 5: Electrical Information
ELECTRICAL INFORMATION wARNING ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE COMPRESSOR DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! POwER SUPPLY PROPERLY GROUNDED OUTLET wARNING: YOUR SANDER MUST BE CONNECTED TO A 120V WALL... -
Page 6: Getting To Know Your Sander
GETTING TO KNOw YOUR SANDER SPECIFICATIONS Model ......................................KC-12S Disc diameter ....................................4” x 36” Disc speed .................................... 1,750 RPM Table size ..................................16-3/8” x 6-7/8” Table height ....................................7-1/2” Table tilt ......................................0 - 45 Motor....................................1.2 HP, 8 Amp. Voltage .................................. 120V, 1 phase, 60 Hz Dimensions/weight .......................... -
Page 7: Assembly And Adjustments
ASSEMbLY & ADJUSTMENTS MOUNTING DISC SANDER TO wORKbENCh If the disc sander is to be used in a permanent location, it should be fastened securely to a firm supporting surface such as a workbench. If mounting to a workbench, holes should be drilled through supporting surface of the workbench. -
Page 8: Operation And Maintenance
OPERATION & MAINTENANCE USING ON/OFF SwITCh wITh REMOVAbLE SAFETY KEY The On/Off switch (A) Fig.7 is used to turn the sander on and off. To turn the sander “On”, move the switch towards the left (On position), to turn the sander “Off”, move the switch towards the right (Off position).
