- Page 1 ManUal MODEL: KC-701C COPYRIGHT © 2019 ALL RIGHTS RESERVED BY KING CANADA TOOLS INC.
-
Page 2: Warranty Information
Refer to the Parts section of the King Canada web site for the most updated parts diagram and parts list. replaceMent parts Replacement parts for this product are available at our authorized King Canada service centres across Canada. Please use the 10 digit part numbers listed in this manual for all part orders where applicable. - Page 3 general & speciFic saFetY rUles 1. knoW YoUr tool 12. alWaYs Wear saFetY glasses. Read and understand the owners manual and labels affixed to the Always wear safety glasses (ANSI Z87.1). Everyday eye-glasses only have impact resistant lenses, they are not safety glasses. tool.

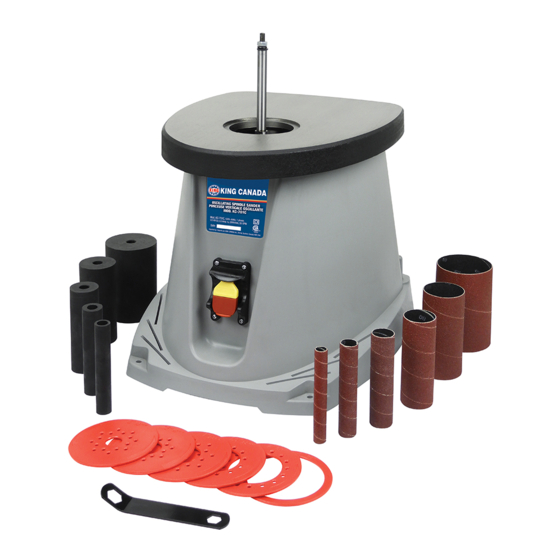

- Page 4 5) Table insert storage (front of machine) 12) Adjustment wrench 6) 1-1/2” dust port 13) Drums (3/4”, 1”, 1-1/2”, 2” and 3”) 7) Power cord spindle sander specifications MODEL KC-701C Oscillations per minute Oscillations stroke 5/8” Spindle drums diameter 3/4” - 3” Spindle length & diameter 4-1/2”...
-
Page 5: Electrical Information
electrical inForMation Warning! ALL ELECTRICAL CONNECTIONS MUST BE DONE BY A QUALIFIED ELECTRICIAN. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! ALL ADJUSTMENTS OR REPAIRS MUST BE DONE WITH THE MACHINE DISCONNECTED FROM THE POWER SOURCE. FAILURE TO COMPLY MAY RESULT IN SERIOUS INJURY! Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. - Page 6 asseMblY Warning! IF ANY PART IS MISSING OR DAMAGED, DO NOT PLUG THE SPINDLE SANDER IN UNTIL YOU HAVE REPLACED THE MISSING OR DAMAGED PART. For your safety, complete the assembly of the Spindle Sander before plugging it into the power supply. MoUnting spindle sander to WorkbencH For your safety, it is recommended to mount the Spindle Sander to a workpiece or a fixed surface.
-
Page 7: Operation And Maintenance
operation & Maintenance tUrning tHe spindle sander on/oFF This Spindle Sander comes with an On/Off switch (A) Fig.7 which starts and stops the machine. To turn the Spindle Sander on, lift the switch upwards as shown. To stop the Spindle Sander, simply push on the switch. The On/Off switch comes with a removable safety key (B) Fig.7.
