Summary of Contents for marsden B-400

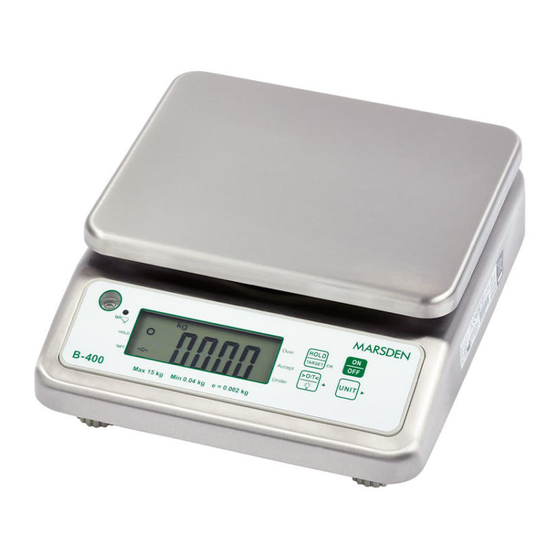

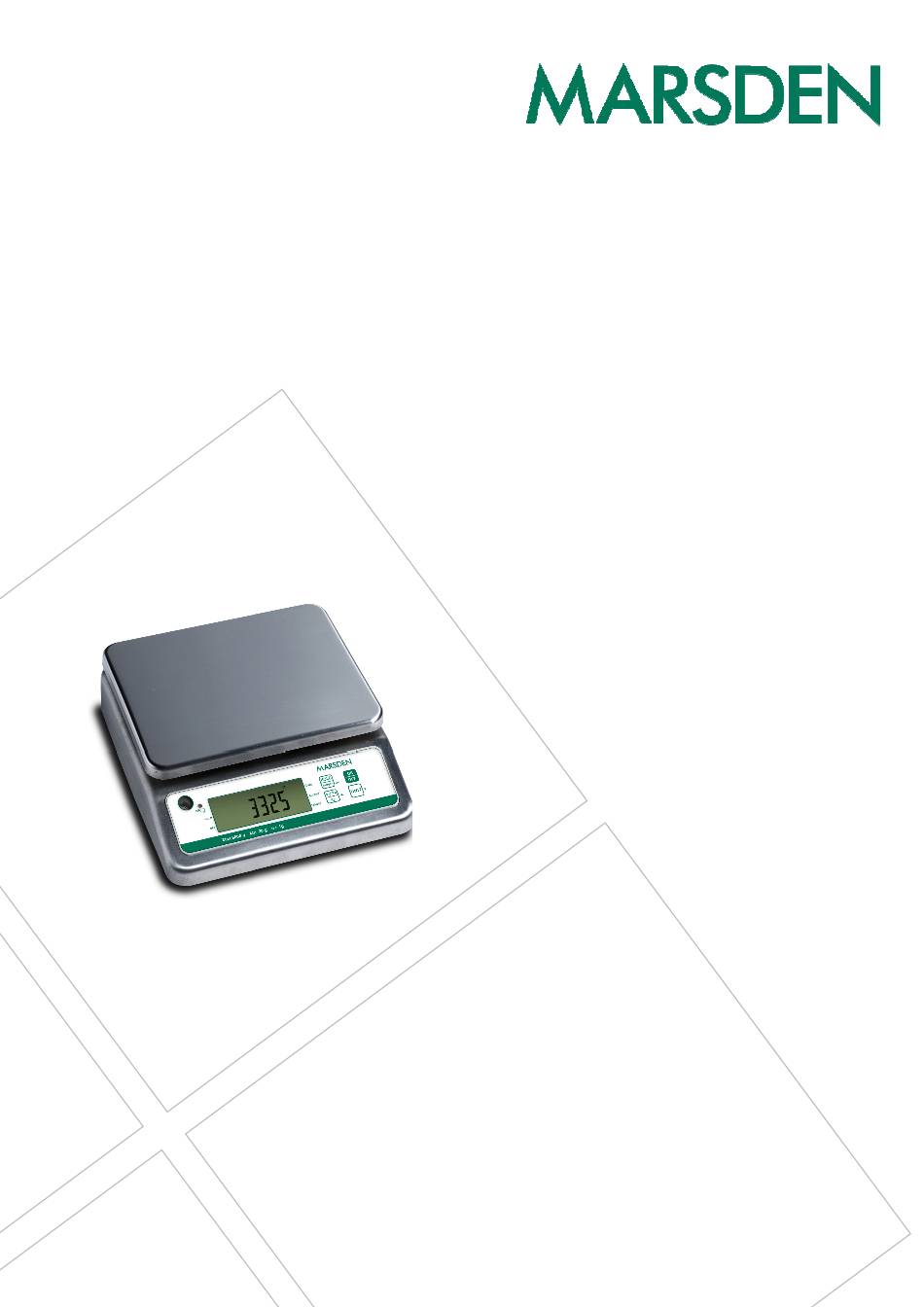

- Page 1 USER MANUAL B-400 Please take time to read these instructions before starting to use the scale Version 1.002/19...
-
Page 2: Table Of Contents
Contents Product Specification Safety Instructions Package Contents Keypad & Display Mains Power/Battery Power Operation Troubleshooting Error Messages Page 2... -
Page 3: Product Specification
IP rating Warranty 1 year Please note: Marsden’s policy is one of continuous development and therefore we reserve the right to change product specification without notice. Disposal In conformance with the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), this device may not be disposed of with domestic waste. -
Page 4: Safety Instructions
• The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at regular intervals. If any inaccuracies occur, please contact your local dealer or service partner. • You can book an accuracy check with the Marsden Service team on 01709 364296. Page 4... -
Page 5: Package Contents
Package Contents B-400 stainless steel scale AC power adaptor User manual Keypad & Display ICON Description Stability display Negative sign Zero setting activated → ← Display net weight Display Hold function Hold Condition of battery Power supply connected Steady green light represents the battery is fully charged. -
Page 6: Mains Power/Battery Power
Mains Power Connect the plug of the AC adaptor to the AC jack on the bottom of the scale as shown in the illustration below. Connect the AC Adaptor to the AC mains supply.The power outlet should be close to the scale and easily accessible. Battery Power The scale will automatically switch to battery operation if there is a power failure or the power cord is removed to provide uninterrupted scale operation. -
Page 7: Operation
Operation Turning Scale On/Off To turn the scale on, press the ON/OFFbutton. Scale will display and will then enter active weighing mode. To turn the scale off, press the ON/OFF button. Zero Operation& Setting With the scale switched on and nothing on the scale, the display should show zero. If there is nothing on the pan and the display is not zero, press TARE/BACKLIGHT button to set zero. - Page 8 Checkweighing Annunciators The OVER, ACCEPT, and UNDER annunciators are to the right of the display and the features as below. WITHIN TARGET The LCD will light up in green and a RANGE triangle appears next to Accept, and you will hear two short beeps. UNDER TARGET The LCD light is off and a triangle appears RANGE...
-
Page 9: Troubleshooting
Move the scale to a suitable environment/surface location. Poor accuracy Improper calibration Perform calibration. If the above solutions do not solve your issue,please contact your authorisedMarsden service agent for further assistance or Marsden Technical Support on 01709 364296. Page 9... -
Page 10: Error Messages
Counting value is higher than the The scale has detected a failure high limit value with loadcell or wiring. Have the scale serviced by Marsden or an authorised servicepartner. Counting value is lower higher than The scale has detected a problem the low limit value with loadcell or wiring. - Page 12 Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk CD-IN-00196 REV001...
