Page 1: User Manual

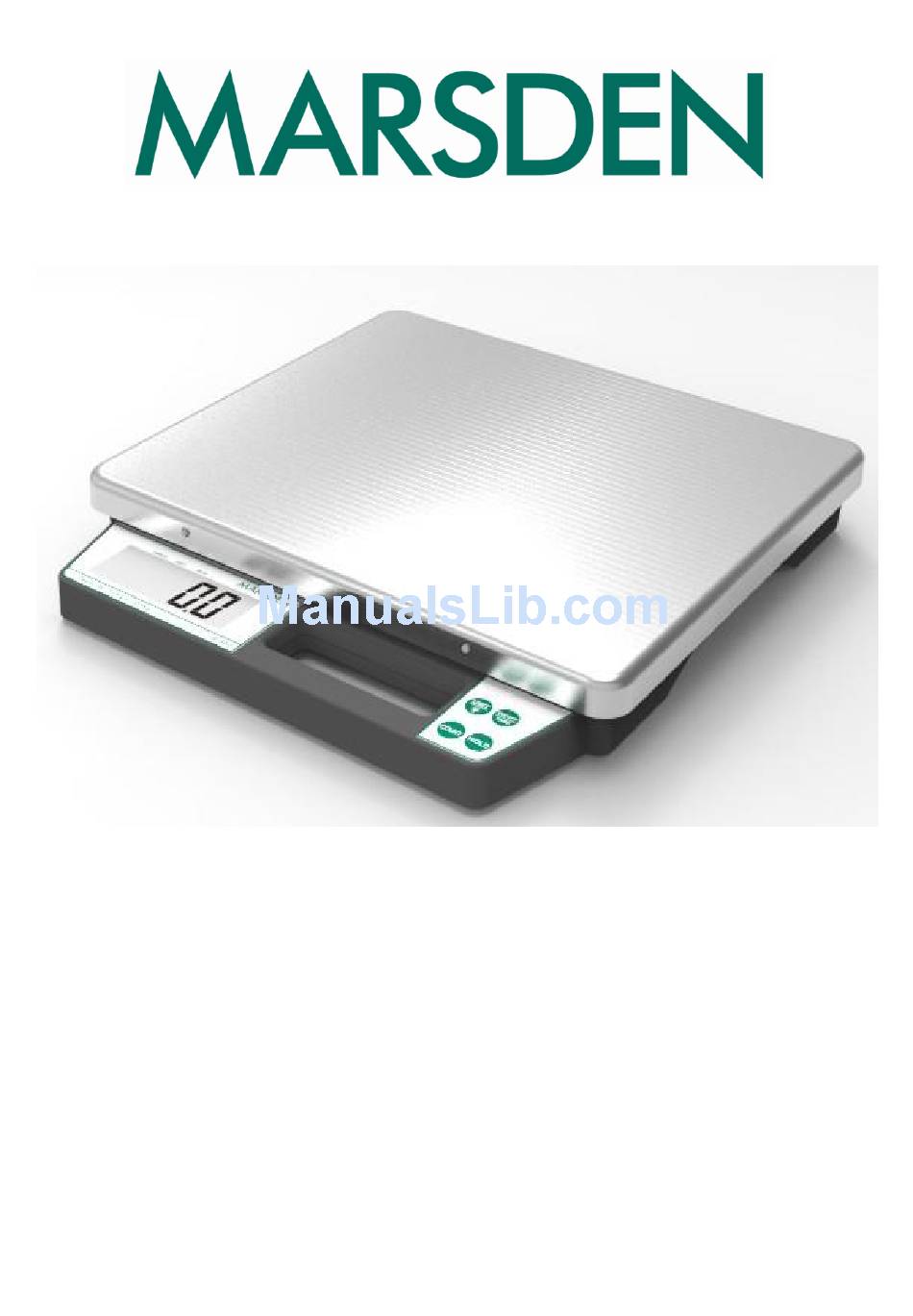

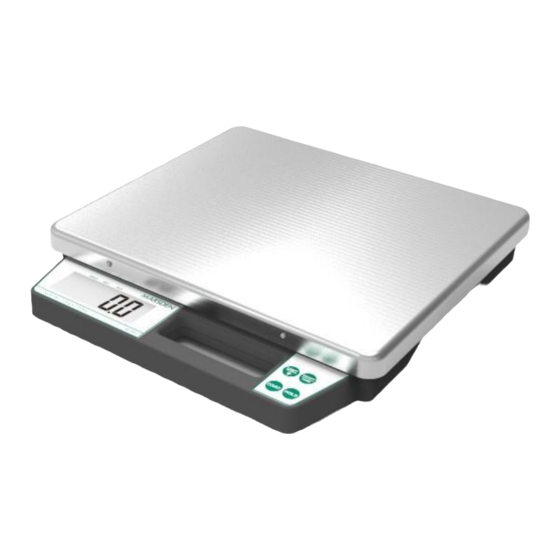

B-300 USER MANUAL PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE STARTING TO USE THE SCALES... - Page 2 TABLE OF CONTENTS TABLE OF CONTENTS ..............1 INTRODUCTION ................2 SAFETY INSTRUCTION ..............2 CLEANING ..................3 MAINTENANCE ................3 DISPOSING OF THE SCALE............3 Explanation of the graphic symbols ..........4 TO Ready Scale for Use ..............5 POWER SUPPLY &...
-
Page 3: Introduction
INTRODUCTION Thank you for purchasing a Marsden Parcel Scale. Please read this instruction manual carefully before use. Keep these instructions handy for future reference. SAFETY INSTRUCTION Before putting the device into use, please read with care the information given in the Operating Instructions. They contain important instructions for installation, proper use and maintenance of the device. -
Page 4: Cleaning
CLEANING We would recommend using alcohol based wipes or similar when cleaning the scales. Please do not use large amounts of water when cleaning the scales as this will cause damage to the scales electronics, you should also refrain from using corrosive liquids or high pressure washers. -
Page 5: Explanation Of The Graphic Symbols
Instead, take them to communal collection points. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales. Transport and storage temperature limit +60°C indicating the upper and the lower limit (Transport and storage temperature on -20°C... -
Page 6: To Ready Scale For Use
POWER SUPPLY & LOW BATTERY 1. The B-300 scale uses 4 x AA size alkaline batteries. 2. Low battery indication will display on LCD display when battery power is insufficient to perform the weighing. -
Page 7: Power Supply & Rs232
Adaptor plug RS232 INSTALLING THE BATTERY B-300 uses 4 x AA size alkaline batteries (not included) for operation. If you want scale to be operated by battery, please install batteries by referring to instruction below. Installing 4 x AA 1.5V batteries... -
Page 8: Specifications
SPECIFICATIONS MODEL# B-300 22kg x 30kg x 70kg x 120kg x 0.01kg 0.02kg 0.05kg 0.1kg Capacity Division 50 lb x 60 lb x 150 lb x 250 lb x 0.02 lb 0.05 lb 0.1 lb 0.2 lb Units of Measure... -
Page 9: Panel
PANEL 1. Capacity : 22kg PANEL 2. Capacity : 30kg PANEL 3. Capacity : 70kg PANEL 4. Capacity : 120kg PANEL... -
Page 10: Lcd Display
LCD DISPLAY : Stable symbol : Minor weight value : Zero KEY FUNCTION DESCRIPTION: 1. ON/TARE/OFF: To power ON and TARE the scale. Press 3 Seconds to POWER OFF 2. HOLD: Press to HOLD function 3. UNIT / Press to UNIT function. Press 3 Seconds to Backlight on or Backlight off 4. -
Page 11: General Weighing Operation
GENERAL WEIGHING OPERATION 1. Place the scale on a hard, level surface. 2. Press the “ON/OFF/TARE” button to turn the scale on. The display first shows “88888”, followed by zero. If the display does not show zero, press the “ON/OFF/TARE” button to reset (tare) the scale to zero. -
Page 12: Instruction Of Tare Function
INSTRUCTION OF TARE FUNCTION You may wish to weigh ingredients in a bowl or other container (not included). In this case, you will need to tare, or offset, the weight of the bowl so that only the weight of the ingredients is displayed. 1. -
Page 13: Instruction Of Hold Function
INSTRUCTION OF HOLD FUNCTION When the “HOLD” function is turned on, the LCD screen will continue to display the weight after the item is removed from the platform. To turn on the Hold function: 1. While the scale is on, place the item to be weighed on the platform. -
Page 14: Counting Feature
COUNTING FEATURE The counting feature will calculate the number of like items based on total weight. To use the counting feature: 1. Press the “ON/OFF/TARE” button to turn the scale on. If using a container, press “ON/OFF/TARE” to tare (zero) out the weight of the container. -
Page 15: Calibration Function
CALIBRATION FUNCTION Occasionally the scale's accuracy should be verified by measuring a known weight of the scale's approximate capacity. Tare the scale by pressing “ON/OFF/TARE”, place the weight on the platform and note the reading. Calibrate the scale if necessary. CALIBRATION PROCEDURE You must use a 20 lb calibrated weight ONLY to properly recalibrate the scale. -
Page 16: Instruction Auto Shut-Off Function
INSTRUCTION AUTO SHUT-OFF FUNCTION The scale will automatically shut off to conserve the batteries if operating on battery power. The auto-shut off feature can be disabled to allow the scale to operate continuously or set from 2 minutes to 5 minutes. 1. -
Page 17: Instruction Of Internal Setting
INSTRUCTION OF INTERNAL SETTING Press HOLD Select key 3 sec Define... - Page 18 RS232 PIN OUT Connecting with PC 1. Start Hyper Terminal Start Hyper Terminal program from clicking Start Menu → Programs → Accessories → Communication → Hyper Terminal. 2. New Connection Description Give new connection a name then click OK. 3. Select Your COM Port Click Connect to select your COM port.
-
Page 19: Error Message
ERROR MESSAGE ERROR REASON ACTION MESSAGE Low battery: Please replace with new This warning shows that batteries or plug the AC the voltage of batteries adaptor for operation. is too low to use. Overload: The total load exceeds Please reduce the loading the maximum capacity of and try again. -
Page 22: Rohs Compliance
ROHS COMPLIANCE EU Directive 2011/65/EU restrict the use of the 6 substances below in the manufacture of specified types of electrical equipment. The product does not contain any of the restricted substances in concentrations and applications banned by the directive; ... - Page 23 FREEPHONE NUMBER: 0800 169 2775 HEAD OFFICE: UNIT 1 SALES, SERVICE, GENESIS BUSINESS PARK MARKETING SHEFFIELD ROAD AND ACCOUNTS ROTHERHAM S60 1DX TELEPHONE: 0845 130 7330 FAX: 0845 1307440 DESPATCH AND Unit 7 PRODUCTION CENTURION BUSINESS PARK COGGIN MILL WAY ROTHERHAM S60 1FB TELPHONE: 0845 130 7330...
