Summary of Contents for marsden B-800
-

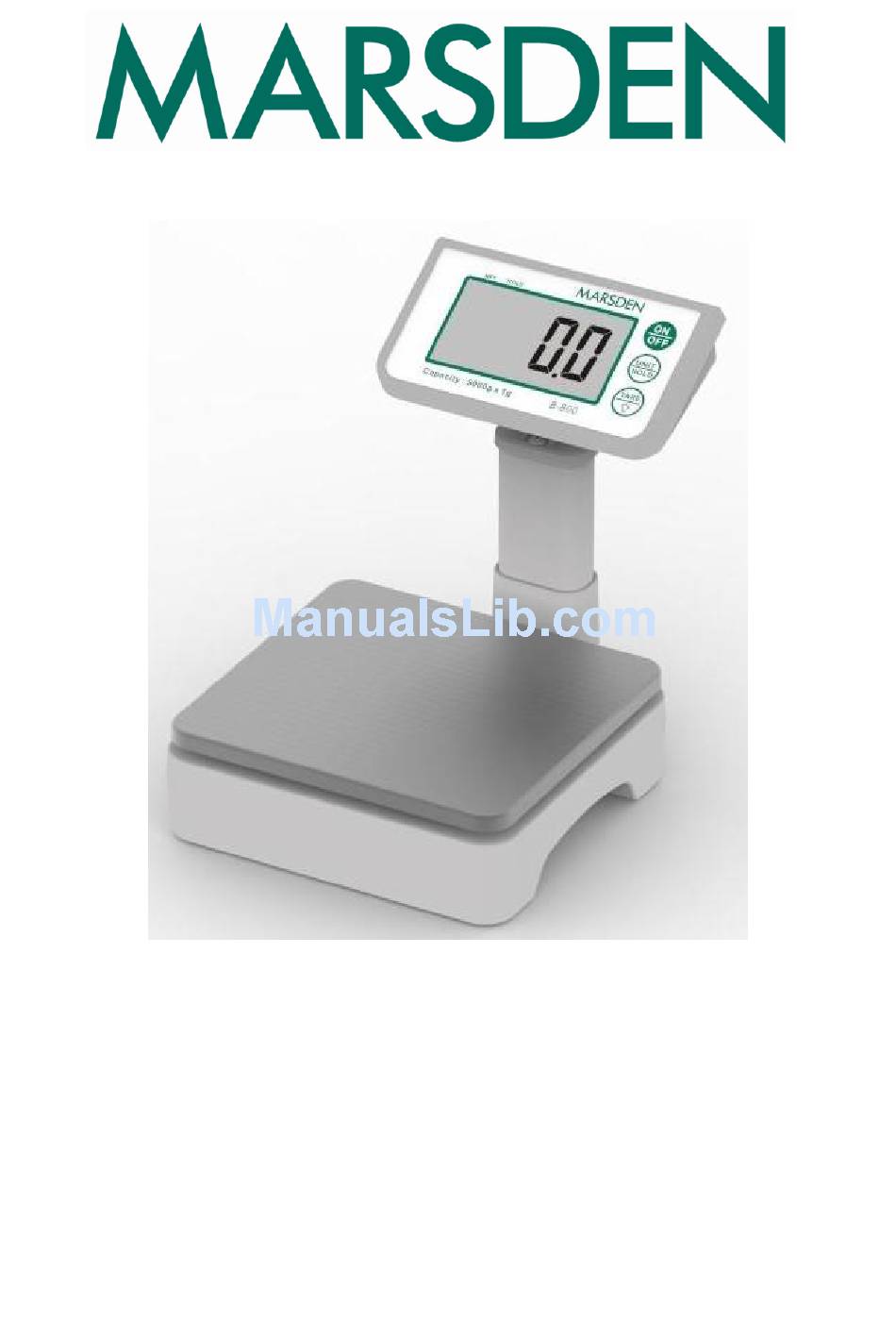

Page 1: User Manual
B-800 USER MANUAL PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE STARTING TO USE THE SCALES... -
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS................2 INTRODUCTION ..................3 SAFETY INSTRUCTION ................3 CLEANING ....................4 MAINTENANCE ..................4 DISPOSING OF THE SCALE ..............4 Explanation of the graphic symbols ............. 5 TO Ready Scale for Use ................6 POWER SUPPLY &... -
Page 3: Introduction
INTRODUCTION Thank you for purchasing a Marsden Portion Control Scale. Please read this instruction manual carefully before use. Keep these instructions handy for future reference. SAFETY INSTRUCTION Before putting the device into use, please read with care the information given in the Operating Instructions. They contain important instructions for installation, proper use and maintenance of the device. -
Page 4: Cleaning
CLEANING We would recommend using alcohol based wipes or similar when cleaning the scales. Please do not use large amounts of water when cleaning the scales as this will cause damage to the scales electronics, you should also refrain from using corrosive liquids or high pressure washers. -
Page 5: Explanation Of The Graphic Symbols
Instead, take them to communal collection points. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden scales. Transport and storage temperature limit +60°C indicating the upper and the lower limit (Transport and storage temperature on -20°C... -
Page 6: To Ready Scale For Use
TO Ready Scale for Use 1. Remove the scale from the box, along with the digital display and the bag with screws and a plastic plate. Remove any protective film from the top of the scale platform. 2. Turn the scale base over. Insert the base of the digital display into the slot on the bottom of the scale. -
Page 7: Power Supply & Low Battery
AC ADAPTOR (9V 0.1A) in the scale. Adaptor plug B-800 uses 4 x AA size alkaline batteries (not included) for operation. If you want scale to be operated by battery, please install batteries by referring to instruction below. -
Page 8: Installing The Battery
INSTALLING THE BATTERY Installing 4 AA 1.5V batteries You can also use the adaptor (standard) as power supply. KEY FUNCTION DESCRIPTION: 1. ON/OFF: To power ON and OFF the scale. 2. UNIT/HOLD: Press to UNIT select between kg and lb Press 3 Seconds to HOLD Function 3. -
Page 9: Panel And Lcd Display
PANEL AND LCD DISPLAY PANEL LCD DISPLAY : Stable symbol : Minor weight value : Low battery... -
Page 10: Specifications
SPECIFICATIONS MODEL# B-800 Capacity 5000g x 1g Division 10 lb x 0.002lb Units of Measure g, lb Function keys ON/OFF, UNIT/HOLD, TARE/LIGHT Stabilisation Time 1-2 seconds Operating Temp. and 0°C - 40°C humidity 30%-90% RH Transport and -20°C +60°C storage temperature... -
Page 11: General Weighing Operation
GENERAL WEIGHING OPERATION 1. Place the scale on a hard, level surface. Uneven surfaces will affect accuracy. 2. Press the “ON/OFF” button to turn the scale on. The display first shows “8888”, followed by a zero display. If the display does not show zero, press the “TARE/ ”... -
Page 12: Instruction Of Hold Function
INSTRUCTION OF HOLD FUNCTION When the “HOLD” function is turned on, the LCD screen will continue to display the weight for 30 seconds after the weight is removed from the platform. To turn on the Hold function: 1. While the scale is on, press and hold the “UNIT/HOLD” button. “... -
Page 13: Instruction Of Tare Function
INSTRUCTION OF TARE FUNCTION You may wish to weigh ingredients in a bowl or other container (not included). In this case, you will need to tare, or offset, the weight of the bowl so that only the weight of the ingredients is displayed. 1. -
Page 14: Instruction Auto Shut-Off Function
INSTRUCTION AUTO SHUT-OFF FUNCTION The scale will automatically shut off after 2 minutes of nonuse to conserve the batteries. The auto-shut off feature can be disabled to allow the scale to operate continuously or set from 2 minutes to 5 minutes. -
Page 15: Instruction Calibration Function
INSTRUCTION CALIBRATION FUNCTION You must use a 5 kg calibrated weight ONLY to properly recalibrate the scale. 1. Press and hold the "ON/OFF" button and then press the "UNIT/HOLD" button 3 times. Release all buttons. A number between 5000 to 20000 will display. 2. -
Page 16: Instruction Of Backlight Function
INSTRUCTION OF BACKLIGHT FUNCTION Your B-800 scale is equipped with a backlight feature for easy viewing. While the scale is on, press and hold the “TARE/ ” button for 3 seconds to activate the backlight. The backlight will activate for 3 seconds when a button is pushed, or when weight is added or removed from the platform. -
Page 17: Instruction Of Internal Setting
INSTRUCTION OF INTERNAL SETTING Select Press at same time Define... -
Page 18: Error Message
ERROR MESSAGE ERROR REASON ACTION MESSAGE Low battery: Please replace with new This warning shows that batteries or plug the AC the voltage of batteries adaptor for operation. is too low to use. Overload: The total load exceeds Please reduce the loading the maximum capacity of and try again. -
Page 19: Rohs Compliance
ROHS COMPLIANCE EU Directive 2011/65/EU restrict the use of the 6 substances below in the manufacture of specified types of electrical equipment. The product does not contain any of the restricted substances in concentrations and applications banned by the directive; ... - Page 20 FREEPHONE NUMBER: 0800 169 2775 HEAD OFFICE: UNIT 1 SALES, SERVICE, GENESIS BUSINESS PARK MARKETING SHEFFIELD ROAD AND ACCOUNTS ROTHERHAM S60 1DX TELEPHONE: 0845 130 7330 FAX: 0845 1307440 DESPATCH AND Unit 7 PRODUCTION CENTURION BUSINESS PARK COGGIN MILL WAY ROTHERHAM S60 1FB TELPHONE: 0845 130 7330...
