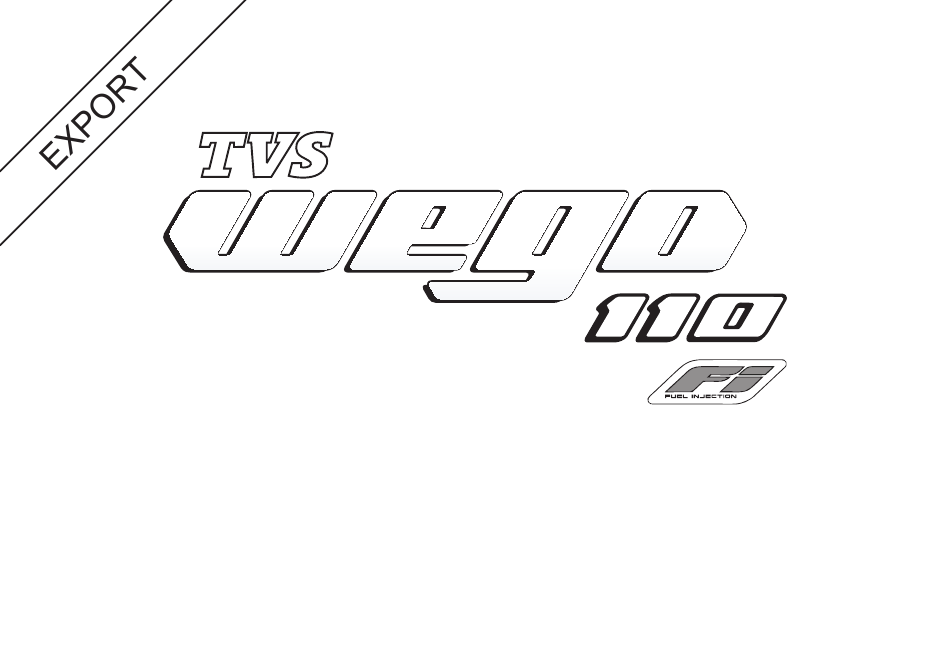

  • Page 1 OWNER’S MANUAL...
  • Page 2 UNIQUE DESIGN TVS WEGO Fi is equipped with a unique design technology, Body Balance, that suits him and her easily and also offers a great ride experience.
  • Page 3 UNIQUE FEATURES OF TVS WEGO Fi S Y N C H R O N I S E D B R A K I N G PARKING BRAKE (REAR BRAKE SYSTEM (SBS) LOCK) “Parking Brake” protects your Synchronised Brake system reduces...
  • Page 4 Refer page no. 14 for details. FULL DIGITAL SPEEDOMETER Your TVS WEGO Fi is fitted with LOW BATTERY INDICATION “Full Digital Speedometer” which is “Low Battery Indication”- is yet inspired by international automotive another unique feature of your t r e n d s .
  • Page 5 UNIQUE FEATURES OF TVS WEGO Fi TRIP METER “Trip Meter”- is yet another unique feature of your scooter using which you can measure the exact trip distance. Refer page no. 12 for details. DIGITAL CLOCK “DIGITAL CLOCK”- is yet another unique feature of your scooter .
  • Page 6 Wego is the luxury scooter that adapts to your needs and personality. It's more than a scooter. It is a statement, an intelligent choice. As a proud owner of TVS WEGO Fi, you are now part of a family of millions of satisfied TVS customers.
  • Page 7 Prior permission of TVS Motor Company Limited is required for quoting, copying or reproducing any part of this owner’s manual.
  • Page 8 SAFETY INFORMATION Operating this vehicle safely is an important responsibility of the rider. To help you make decisions about safety, we have provided operating procedure and other information in this manual. This information alerts you on potential hazards that could hurt you or others. Since it is not possible to warn you about all hazards associated with operating or maintaining the vehicle, you must use your own judgement.

  • Page 9: Table Of Contents

    CONTENTS Running-in information Safe riding tips Know your TVS WEGO Fi Riding your TVS WEGO Fi Maintenance Services record sheet Technical specifications -VIII-...

  • Page 10: Running-In Information

    Timely performance of the first free service will ensure optimum service life and performance from the engine. Caution Replacing the engine and transmission oil during first free service is most important for better life of engine. Always use TVS TRU4 PREMIUM oil (SAE 10W30 SL-JASO MA2) for better performance and life.

  • Page 11: Safe Riding Tips

    Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to practice riding TVS WEGO Fi in a low-traffic condition until you are thoroughly familiar with your vehicle and its controls. Remember practice makes you perfect.
  • Page 12 SAFE RIDING TIPS Posture Cornering When cornering, centrifugal force works in a Proper vehicle riding starts with proper posture. direction perpendicular to the direction in which 1. Keep your elbows relaxed and flexible. the vehicle is moving. Centrifugal force increases 2.
  • Page 13 SAFE RIDING TIPS Using only the front or rear brake is dangerous and Causes for poor braking can cause skidding and loss of control. Apply both 1. If the brake shoes / pads or drum / disc are worn the brakes together and with great care on a wet out or if there is water or oil on them, sufficient road or other slippery surfaces.
  • Page 14 SAFE RIDING TIPS EMISSION CONTROL All the TVS vehicles are tested in the factory for optimum fuel efficiency and CO levels. If the vehicle needs any adjustments, please consult nearest TVS Motor Company Authorised Distributor or Dealer / Authorised Service Centers.

  • Page 15: Know Your Tvs Wego Fi

    KNOW YOUR TVS WEGO Fi VEHICLE IDENTIFICATION NUMBER Serial numbers of both frame and engine are required for vehicle identification. They are also required to assist your Dealer for operating parts or referring to special information. The frame serial number is stamped on the frame, The engine serial number is stamped on the left at the rear end below the seat assembly.
  • Page 16 KNOW YOUR TVS WEGO Fi LOCATION OF PARTS - HANDLE BAR 1. Bag hook (front) 2. Horn switch 3. Turn signal lamp switch 4. Damper handle bar 5. Left hand brake lever (Rear brake lever) 6. Parking brake (brake lock) 7.
  • Page 17 KNOW YOUR TVS WEGO Fi LOCATION OF PARTS - VEHICLE LEFT SIDE 1. Rear brake adjusting nut 2. Kickstarter lever 3. Patented E-Z centre stand 4. Pillion foot rest L 5. Floor mat 6. Front brake cables 7. Brake adjusting nuts 8.
  • Page 18 KNOW YOUR TVS WEGO Fi LOCATION OF PARTS - VEHICLE RIGHT SIDE 1. Front wheel axle nut 2. Cover front 3. O2 sensor 4. Pillion foot rest R 5. Gauge oil level 6. Muffler assembly 7. Rear fender 8. Fuel tank cap...
  • Page 19 1. ‘OFF’ position All the electrical circuits are turned ‘OFF‘ in this TVS WEGO Fi comes with a pair of identical control position. Engine will not start . Key can be taken out. keys. These keys are to operate ignition cum steering lock, seat lock, fuel tank cap and glove 2.
  • Page 20 KNOW YOUR TVS WEGO Fi Warning 1. Mode switch Press the switch to change the display mode Never attempt to move the vehicle when the (‘ODO’ or ‘TRIP’ or ‘CLOCK’). steering is locked, you may lose balance. 2. High beam indicator lamp Glows when the head lamp high beam is activated.
  • Page 21 KNOW YOUR TVS WEGO Fi Note 6. Multi functional digital display Always ride the vehicle in economy mode for better fuel efficiency. After ignition cum steering lock is in ON , the Eco lamp glows for 6 sec and if the vehicle is not started till then, the power lamp glows.
  • Page 22 KNOW YOUR TVS WEGO Fi Trip meter registers and displays the partial 2. Press the mode switch till the hour digits of distance covered in kilometers. The digit after the clock starts blinking. the dot mark denotes one tenth of a kilometer.
  • Page 23 ’ blinks for 10 seconds after the self-test cycle of speedometer and continues to glow till the vehicle is serviced and reset. Get the vehicle serviced at TVS Motor Company When the fuel reaches half tank (2.5 liters Authorised Distributor or Dealer / Authorised approx.) the fuel gauge displays only four bars as...
  • Page 24 Engine start, MIL will switch OFF. If the MIL ‘ ’ glows continuously even after 10 secs. of engine start, Immediately contact nearest TVS Motor Company Authorised Distributor or Dealer / Authorised Service Center.. HANDLE BAR LEFT SIDE 1. Horn switch Press the switch ‘...
  • Page 25 KNOW YOUR TVS WEGO Fi 5. Head lamp high / low beam switch With the lights switch in ‘ON’ condition, press the high/low beam switch towards ‘ ’ to operate high beam of head lamp and towards ‘ ’ to operate the low beam of head lamp.
  • Page 26 KNOW YOUR TVS WEGO Fi Caution FUEL TANK CAP Fuel tank is located at the rear end of the vehicle For cold starts, avoid using electric starter. Use below the pillion holder. To open the fuel tank cap, kickstarter. A typical example is early morning insert the control key into the ‘seat / fuel tank cap...
  • Page 27 KNOW YOUR TVS WEGO Fi Note KICKSTARTER LEVER Kickstarter lever is located on the left side of the Always maintain minimum 0.8 liters of fuel in tank. vehicle. To start the vehicle, keep the ignition in Running of engine with lower fuel level may ‘ON’...
  • Page 28 KNOW YOUR TVS WEGO Fi PATENTED E-Z CENTRE STAND TVS WEGO Fi is equipped with a patented E-Z centre stand. The centre stand (1) has a pivoted flexible spring loaded lever arm (stand extension) (2) to increase the lever ratio, which enables parking on centre stand effortlessly and very conveniently.
  • Page 29 It is recommended to use the tool kit in case of any 3. Screw driver handle emergency only. It is always advisable to take your 4. Tool bag vehicle to TVS Motor Company Authorised Distributor or Dealer / Authorised Service Centers. -20-...
  • Page 30 Do not keep valuable items inside the utility box when leaving the vehicle unattended. Warning Operating TVS WEGO Fi overloaded will hamper riding stability and may lead to loss of control. Hence, it is advisable to carry the recommended amount of load only.
  • Page 31 KNOW YOUR TVS WEGO Fi HELMET HOOKS SMART PHONE CHARGER Two helmet hooks are provided under the seat This socket enables you to charge the mobile assembly at front end near the seat hinge to secure phone when you are traveling. Open the seat your helmet.
  • Page 32 KNOW YOUR TVS WEGO Fi Caution Please follow the guidelines provided for using it properly:- Secure your mobile phone properly during charging DO's and protect it from any liquid, dust etc. 1. Ensure that no water enters into the unit, by closing the USB flap properly.

  • Page 33: Riding Your Tvs Wego Fi

    RIDING YOUR TVS WEGO Fi PRE RIDE INSPECTION Check the following items before riding. ITEM WHAT TO CHECK FOR Engine oil Availability of oil upto the level (page no. 36) Transmission oil Availability of oil upto the level (page no. 36)
  • Page 34 RIDING YOUR TVS WEGO Fi Caution Starting the engine Ensure availability of fuel in the fuel tank. Insert the Do not keep the engine in idling rpm for long and do control key into the ignition cum steering lock and not open excessive throttle when brake is applied, turn it to the ‘ON’...
  • Page 35 (page no. 29 to 31). Petrol mixed with ethanol will have impact on Regular maintenance checks will save fuel and engine components. Contact your TVS Motor assure trouble-free, enjoyable and safe riding Company Authorised Distributor or Dealer / Authorised Service Centers for usage.
  • Page 36 RIDING YOUR TVS WEGO Fi Running with low transmission oil will cause Inspect the tyre pressure regularly (weekly) and damage to the gears and bearings. inflate it to the recommended pressure (refer page Regularly inspect the engine oil and the no.

  • Page 37: Maintenance

    Cylinder head, steering components, suspension and wheel components etc., are key items and require very special and careful servicing. TVS Motor Company Limited strongly recommends that the jobs as per the maintenance schedule be performed by your TVS Motor Company Authorised Distributor or Dealer / Authorised Service Centers.
  • Page 38 MAINTENANCE PERIODIC MAINTENANCE SCHEDULE (months or km whichever occurs earlier) Item In Service Service Remarks Every Every 500-750 2500-3000 5000-6000 8500-9000 3000 km 6000 km Period from the date of sale 2 months 4 months 8 months 12 months Engine oil I &...
  • Page 39 MAINTENANCE Item In Service Service Remarks Every Every 500- 750 2500-3000 5000-6000 8500-9000 3000 km 6000 km Period from the date of sale 2 months 4 months 8 months 12 months Front fork oil – – – – – – Replace every 24000 km All fasteners I &...
  • Page 40 MAINTENANCE Item In service Service Remarks Every Every 500- 750 2500-3000 5000-6000 8500-9000 3000 km 6000 km Period from the date of sale 2 months 4 months 8 months 12 months Centre / side stand pivot – Lubricate using TRU4 oil Kick starter pedal pivot –...
  • Page 41 RECOMMENDED LUBRICANTS Application Manufacturer Brand Engine oil 750 ml (during regular service) TVS Motor Company TVS TRU4 PREMIUM oil 800 ml (incase of disassembly) Transmission oil 100 ml (during regular service) -do- -do- 120 ml (incase of disassembly) Front fork oil 84 ±...
  • Page 42 TVS MOTOR COMPANY Authorised and covered by front panel. The front panel and rear Distributor or Dealer / Authorised Service panel must be removed to access the battery. TVS Centers. WEGO Fi is fitted with a maintenance free battery.
  • Page 43 6. Close the fuse holder. 7. Turn ‘ON’ the ignition switch and check for proper functioning of electrical systems. Incase the fuse fails again, consult the nearest TVS Motor Company Authorised Distributor or Dealer / Authorised Service Centers. -34-...
  • Page 44 MAINTENANCE Good Fuse Blown Fuse 0.9 ~ 1.0 mm Caution Do not use vehicle by shorting the wires without a A spark plug with heavy carbon deposits will not fuse. This may result in overheating of electrical / produce strong sparks. Hence, only if necessary, wiring and may result in fire.
  • Page 45 ENGINE OIL - LEVEL 5. If the oil is less than the minimum level, add Check the engine oil level periodically. ‘TVS TRU4 PREMIUM’ 4T oil upto the 1. Place the vehicle on centre stand on a flat maximum level mark.
  • Page 46 3. Check for the flow of oil from oil level hole. 4. If the level is less ( if there is no oil flow), top-up with ‘TVS TRU4 PREMIUM’ 4T oil till the oil just 15 ~ 20 mm starts to flow out from the level hole.
  • Page 47 MAINTENANCE 1. Measure the free play of the front brake lever at Clearance lever end as shown in the figure. 2. The free play of the brake lever before the engagement of brake should be between 15 ~ 20 mm. 3.
  • Page 48 Since the vehicle is fitted with Synchronised Braking System (SBS) adjust the brakes with additional care. If not it may result in brakes not working properly. Please contact TVS Motor Company Authorised Distributor or Dealer / Authorised Service Center for any further assistance.
  • Page 49 MAINTENANCE Incase the wear limit index mark is going beyond Brake shoe wear indicator front wear limit indicator, index the lever to the next slot When brake is applied, wear limit index mark (1) on with the help of Dealer to increase the shoe life. the front brake cam should be within the wear limit indicator (2) on the front brake panel.
  • Page 50 MAINTENANCE Caution Tyre tread condition Operating the vehicle with excessively worn tyres Replace the brake shoes as a set, if the wear limit decreases the riding stability and can lead to loss of indicator shows beyond the wear limit even after control.
  • Page 51 MAINTENANCE Similarly, arrow mark ‘REAR’ on the tyre facing the machine. If at all tyre levers needs to be used, the direction of wheel rotation while fixing the tyre on levers should be free from sharp edges. Care the rear wheel rim. should be taken not to damage the tyres and rims.
  • Page 52 MAINTENANCE 2. Pull out the axle (2) along with a washer and take out a spacer from the RH of the wheel. 3. Place a support below the foot board to prevent vehicle from falling and lift the vehicle up. 4.
  • Page 53 MAINTENANCE 6. Cover up the vehicle completely with a clean STORAGE PROCEDURES tarpaulin or any other suitable cover. Store the For storage of your scooter for longer periods of vehicle inside a garage or similar area to avoid over a month and above, we recommend to carry damage due to dust and rain.
  • Page 54 1. Tool kit complete. 3. Fill the engine oil (TVS TRU4 PREMIUM, 4T oil) and check the oil level using gauge oil level. 2. Recommended spark plug one number. 3. Head lamp and turn signal lamp bulb each 4.
  • Page 55 10. Air filter element cleanliness. 11. Lubrication of all items mentioned in the periodic maintenance schedule. 12. Any other job as necessary. 13. Have your vehicle checked at any TVS Motor Company Authorised Distributor or Dealer / Authorised Service Centers. Warning Long journey are to be taken only after the running-in period of 1000 km.

  • Page 56: Services Record Sheet

    SERVICE RECORD SHEET PAY SERVICE RECORD SERVICE RECORD SHEET Sl.No. Description Odometer Job card no. / Date Servicing Dealer’s reading stamp and sign. 1st service between (a) 500 - 750 km or (b) 2 months from the date of purchase, whichever of the two occurs earlier.
  • Page 57 SERVICE RECORD SHEET PAY SERVICE RECORD SERVICE RECORD SHEET Sl.No. Description Odometer Job card no. / Date Servicing Dealer’s reading stamp and sign. 6th service between (a) 14500 - 15000 km or (b) 20 months from the date of purchase, whichever of the two occurs earlier.

  • Page 58: Technical Specifications

    TECHNICAL SPECIFICATIONS MANUFACTURER : TVS MOTOR COMPANY LIMITED P.B. No 4, Harita, Hosur - 635 109, India. ENGINE TRANSMISSION Type : Single cylinder, 4 stroke, air Clutch : Dry - Centrifugal clutch cooled, spark ignition engine Primary transmission : CVT (Continuous Variomatic Cylinder bore : 53.5 mm...
  • Page 59 TECHNICAL SPECIFICATIONS CHASSIS ELECTRICAL Dimensions and weights Ignition system : IDI ignition Frame : Duplex tubular frame Spark plug : BOSCH UR5KCW Front suspension : Telescopic hydraulic Spark plug gap : 0.9 ~ 1.0 mm Rear suspension : Toggle link, gas filled hydraulic Battery : 12V, 4Ah dampers...
  • Page 60 Specifications are subject to change without Fuel : Unleaded Petrol Engine oil and : TVS TRU4 PREMIUM, 4T oil notice. transmission oil grade Engine oil capacity : 7 5 0 m l d u r i n g r e g u l a r service and 800 ml incase of disassembly.
