www.ti.com

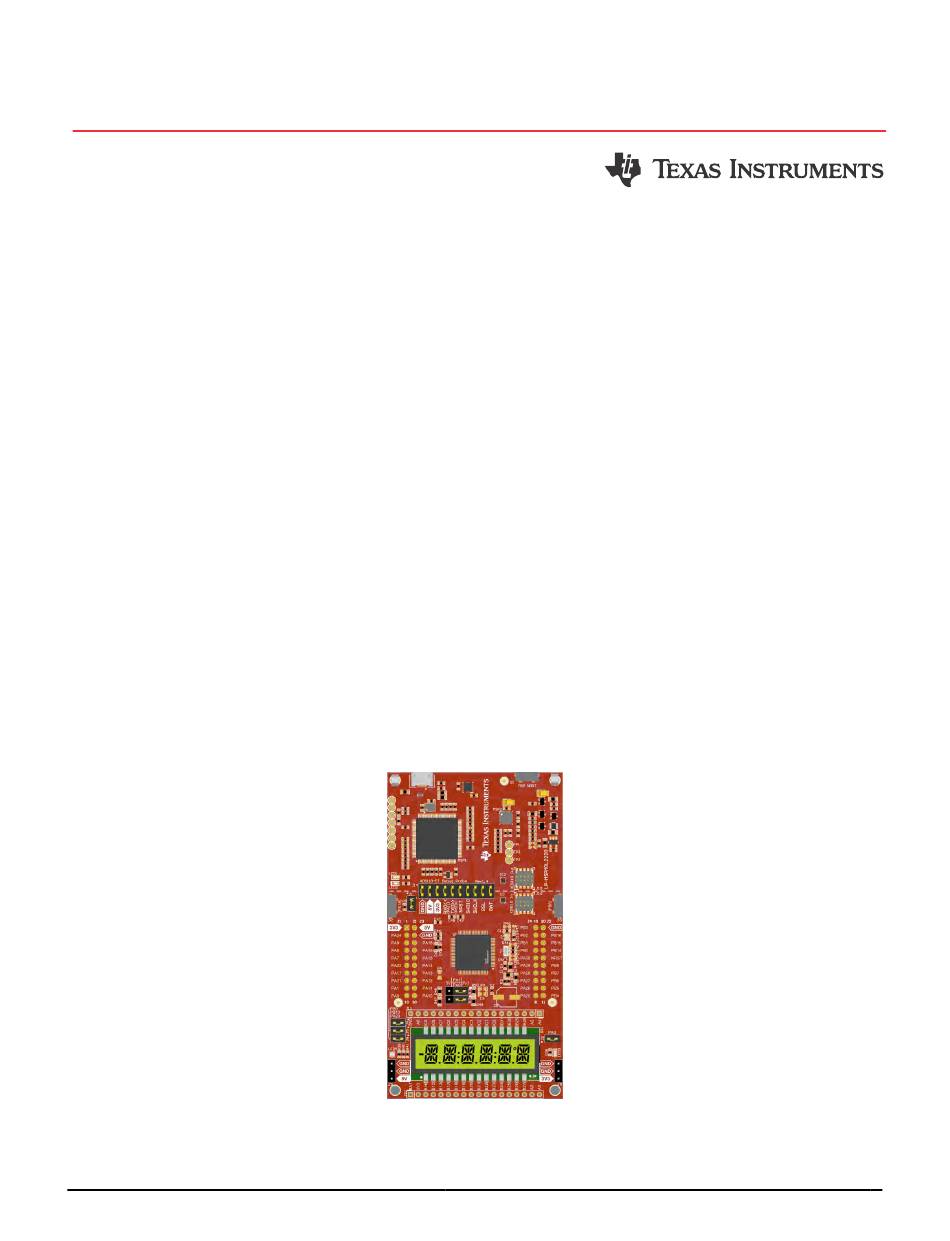

EVM User's Guide: LP-MSPM0L2228
LP-MSPM0L2228 Evaluation Module
Description

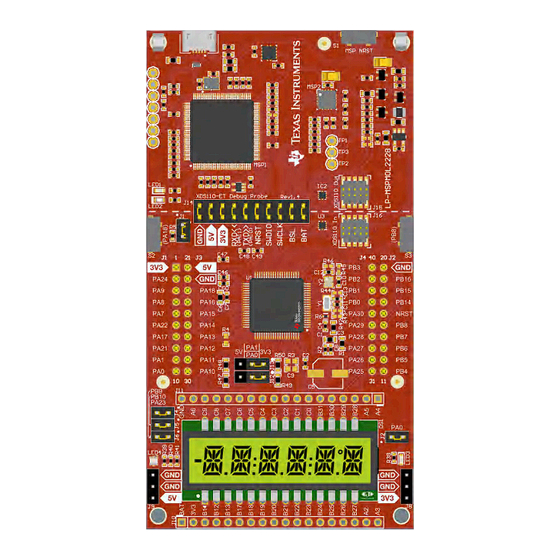

The MSPM0L2228 LaunchPad
is an easy-to-use evaluation module for the
MSPM0L2228 microcontroller (MCU). The LaunchPad
kit contains everything needed to start developing
on the MSPM0Lx22x microcontroller platform,
including an onboard debug probe for programming,
debugging, and EnergyTrace
also features on board buttons, LEDs, an RGB LED,
and a 7-segment LCD panel.
The MSPM0L2228 is an Arm
CPU with a frequency up to 32MHz. The device
features 256KB of dual-bank flash with 32KB of
SRAM and 32B of backup memory. The device
also has internal analog such as internal ADC,
voltage reference, and comparator with 8-bit DAC.
The MSPM0L2228 is the first MSPM0 device that
features a LCD controller, which supports 1 to 8 mux
LCD panels. Lastly, the device has a VBAT island
to support applications that require a separate power
plane. On the VBAT island is the watchdog timer,
RTC, TamperIOs, and a low-frequency oscillator or
32Khz crystal input.
Get Started
1. Order the
LP-MSPM0L2228
SLAU928 – MAY 2024
Submit Document Feedback
development kit
technology. The board
®
Cortex
®
32-bit M0+
from ti.com.
LP-MSPM0L2228
Copyright © 2024 Texas Instruments Incorporated
2. Navigate to
dev.ti.com
examples.
3. Plug LP-MSPM0L2228 into a PC with the
provided USB cable.
4. Download code directly from the browser to the
MSPM0L2228 with CCS Cloud.
5. Download
CCS Theia
development environment.
6. Download the
MSPM0 SDK
examples, demos, and software libraries.
Features
Onboard XDS110 debug probe
Backchannel UART through USB to PC
USB powered
40-pin BoosterPack headers
Hardware user interfaces
– Two buttons: 1 LCD Panel, 1 RGB Led, 1 Red
LED
External clock crystals
Options for battery or super-capacitor
Applications
Grid infrastructure
Factory automation
Appliances
Medical and healthcare
Test and measurement
LP-MSPM0L2228 Evaluation Module
Description
to browse for code
for a desktop integrated
for desktop stored
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the LaunchPad MSPM0L2228 and is the answer not in the manual?

Questions and answers

Summary of Contents for Texas Instruments LaunchPad MSPM0L2228

  • Page 1 32Khz crystal input. • Factory automation • Appliances Get Started • Medical and healthcare 1. Order the LP-MSPM0L2228 from ti.com. • Test and measurement LP-MSPM0L2228 SLAU928 – MAY 2024 LP-MSPM0L2228 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 2: Kit Contents

    3.3V. Programming can be done externally with a separate XDS110 external debugger utilizing the on board Arm 10-pin connector. LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 3: Device Information

    Evaluation Module Overview 1.4 Device Information LP-MSPM0L2228 uses the following devices from Texas Instruments. Table 1-1. Device Information Device Name Description Purpose ™ ™ MSP432E401YTPDT SimpleLink 32-bit ARM Cortex-M4F MCU with Ethernet XDS110 Host Device CAN, 1MB Flash and 256kB RAM...
  • Page 4: Power Requirements

    5V on the 5V rail. For operation of the Low-Frequency Subsystem Module (LFSS), the BAT jumper needs to be populated or powered with 1.65 - 3.3V. Figure 2-2 shows the power connections on the LP-MSPM0L2228. Figure 2-2. LP-MSPM0L2228 Power Connections LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 5 HyperTerminal or Docklight, to open this port and communicate with the target application. You need to identify the COM port for the backchannel. On Windows PCs, Device Manager can assist. SLAU928 – MAY 2024 LP-MSPM0L2228 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 6 For more clock tree details see Section 2.3 Clock Module (CKM) of the MSPM0 L-Series Microcontrollers Technical Reference Manual. LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 7: Liquid Crystal Display (Lcd)

    PB17 LCD18 PB18 LCD19 COL2 PB19 LCD20 PB20 LCD23 PB21 LCD39 PB22 LCD40 PB23 LCD41 PB24 LCD24 COM1 PB25 LCD42 COM2 PB26 LCD43 COM3 SLAU928 – MAY 2024 LP-MSPM0L2228 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 8 COM4 PB27 LCD44 COM4 PB28 LCD45 PB29 LCD46 PB30 LCD47 PB31 LCD48 COL4 LCD49 LCD50 LCD51 LCD52 COL3 LCD53 LCD54 LCD55 LCD56 LCD57 LCD58 LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 9 9. The RGB LED on LP-MSPM0L2228 needs to be blinking. Now, the user is ready to begin prototyping by modifying the code or by importing a different example code. SLAU928 – MAY 2024 LP-MSPM0L2228 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 10 MSPM0L2228TPN 22pF 18pF ROSC PA2_ROSC 100k PA4_LFXOUT PA6_HFXOUT 0.1% 22pF 18pF Please keep R8 close to MCU pin Figure 4-1. MSPM0L2228 Target Device Schematic LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 11 TSW-118-07-G-T S SW-118-07-G-S LCD-P18 6D/6E/6F/COL4 LCD-P15 6C/6M/6B LCD-P11 COM1 PA0_I2C0-SDA 4.7k LCD-P12 COM2 LCD-P13 COM3 LCD-P14 COM4 4.7k GDH-1638WP 2.2k PA1_I2C0-SCL 2.2k Figure 4-2. BoosterPack Connectors SLAU928 – MAY 2024 LP-MSPM0L2228 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 12 OSC0 XDS_VCC XDS_GND MSP432E401YTPDTR OSC1 XDS_VCC MSP432E401YTPDTR 1.0k LM4040C25IDCKR 0.01uF 0.1uF 0.1uF 12pF 12pF XDS_GND XDS_GND XDS_GND XDS_GNDXDS_GND Figure 4-3. XDS110 Debug Probe Schematic LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 13 XDS_GND XDS_GND XDS_VCCOUT XDS_VCCTARGET REF_TARGET_VCC XDS_VCC REF_MAIN_LDO 2.2uH 220k 4.7uF 0.1uF 220k BAS40-05W,115 XDS_GND XDS_GND XDS_GNDXDS_GND XDS_GND XDS_GND Figure 4-4. XDS110 Energy Trace Schematic SLAU928 – MAY 2024 LP-MSPM0L2228 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 14 XDS_GND ITCK 5001 ITDO 5001 XDS_VCC ITDI 5001 2.2uF IRSTN 5001 XDS_GND TP10 XDS_GND XDS_VCC 5001 TPS73533DRBT XDS_GND Figure 4-6. XDS110 USB Power Schematic LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 15 These assemblies must comply with workmanship standards IPC-A-610 Class 2, unless otherwise specified. Assembly Note Place a click-in Standoff (MAE-10, KangYang) in hole MH1/MH2 Figure 4-7. Hardware Schematic SLAU928 – MAY 2024 LP-MSPM0L2228 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 16 CAP, CERM, 3300pF, 50V, +/- 10%, X7R, 0402 GRM155R71H332KA01D Murata D1, D2 Diode, Schottky, 40V, 0.12A, AEC-Q101, SOT-323 BAS40-05W,115 Nexperia GDH-1638WP GDH-1638WP Xiamen Ocular Optics LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 17 RES, 47 k, 5%, 0.063 W, 0402 CRCW040247K0JNED Vishay / Dale Res Thin Film 0402 100K Ohm 0.1% 1/16W 100k ERA-2AEB104X Panasonic ±25ppm/°C Molded SMD Punched Carrier T/R SLAU928 – MAY 2024 LP-MSPM0L2228 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 18 CRCW04021M00FKED Vishay / Dale RES, 3.00 k, 1%, 0.1 W, 0603 RC0603FR-073KL Yageo S1, S2, S3 Switch, SPST, 0.05A, 12 VDC, SMD 1188E-1K2-V-TR Diptronics LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 19 Cable, USB-A to micro USB-B, 0.3m AK67421-0.3 Assmann Crystal, 32.768KHz, 12.5pF, SMD X1A0001410014 Epson Crystal, 32MHz, 10pF, SMD Q22FA1280009200 Epson Crystal, 16MHz, 8pF, SMD NX3225GA-16.000M-STD-CRG-1 SLAU928 – MAY 2024 LP-MSPM0L2228 Evaluation Module Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 20: Additional Information

    6.1 Supplemental Content The following items are important learning materials to get started with MSPM0. • MSPM0 Academies • MSPM0-SDK Code examples • TI Precision Labs LP-MSPM0L2228 Evaluation Module SLAU928 – MAY 2024 Submit Document Feedback Copyright © 2024 Texas Instruments Incorporated...
  • Page 21 STANDARD TERMS FOR EVALUATION MODULES Delivery: TI delivers TI evaluation boards, kits, or modules, including any accompanying demonstration software, components, and/or documentation which may be provided together or separately (collectively, an “EVM” or “EVMs”) to the User (“User”) in accordance with the terms set forth herein.
  • Page 22 www.ti.com Regulatory Notices: 3.1 United States 3.1.1 Notice applicable to EVMs not FCC-Approved: FCC NOTICE: This kit is designed to allow product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and software developers to write software applications for use with the end product.
  • Page 23 www.ti.com Concernant les EVMs avec antennes détachables Conformément à la réglementation d'Industrie Canada, le présent émetteur radio peut fonctionner avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émetteur par Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à...
  • Page 24 www.ti.com EVM Use Restrictions and Warnings: 4.1 EVMS ARE NOT FOR USE IN FUNCTIONAL SAFETY AND/OR SAFETY CRITICAL EVALUATIONS, INCLUDING BUT NOT LIMITED TO EVALUATIONS OF LIFE SUPPORT APPLICATIONS. 4.2 User must read and apply the user guide and other available documentation provided by TI regarding the EVM prior to handling or using the EVM, including without limitation any warning or restriction notices.
  • Page 25 Notwithstanding the foregoing, any judgment may be enforced in any United States or foreign court, and TI may seek injunctive relief in any United States or foreign court. Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2023, Texas Instruments Incorporated...
  • Page 26 TI products. TI’s provision of these resources does not expand or otherwise alter TI’s applicable warranties or warranty disclaimers for TI products. TI objects to and rejects any additional or different terms you may have proposed. IMPORTANT NOTICE Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265 Copyright © 2024, Texas Instruments Incorporated...
