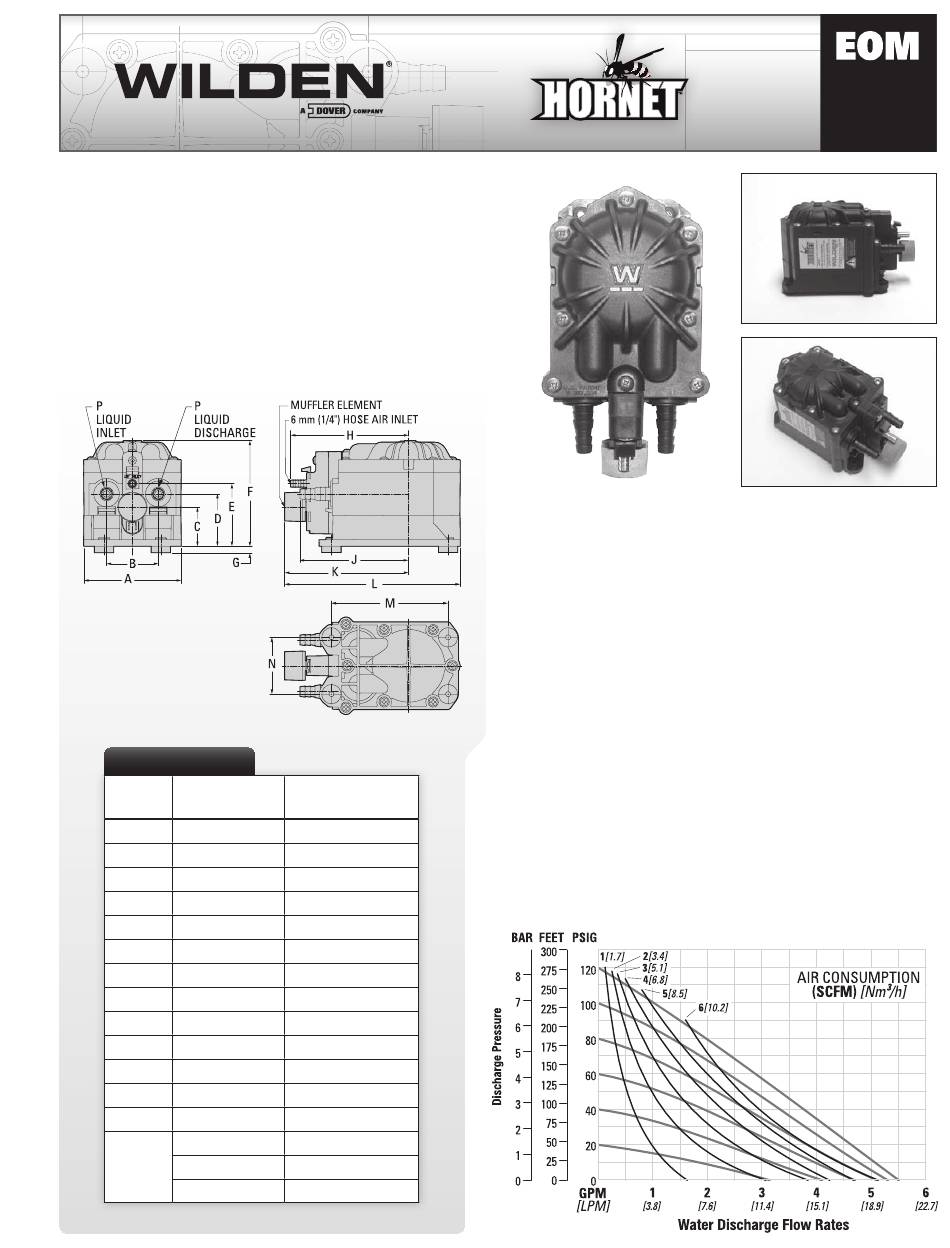

Dover Wilden Hornet HU38 Engineering, Operation & Maintenance

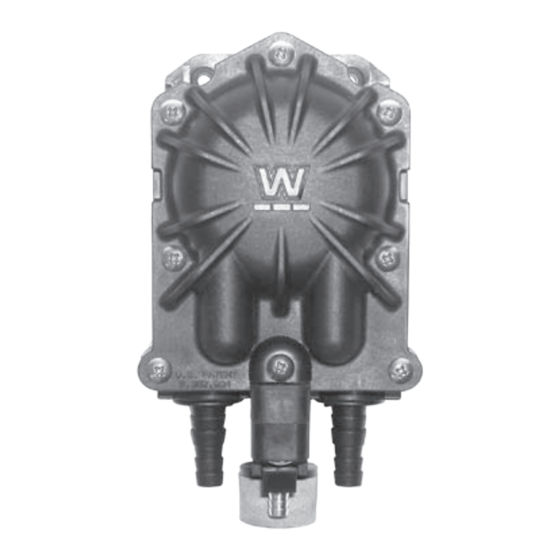

The Hornet™ pump was specifically designed for industrial
and general commercial use. This pump can be applied to
chemical transfer and dispensing, automotive recycling and
cleaning, and car wash systems. The bolted configuration
ensures total product containment while the liquid path
design maximizes the output and efficiency. Offered with
a polypropylene wetted material, Wilden's Hornet™ pump
provides the reliability, flexibility and efficiencies needed
in today's demanding applications.

DIMENSIONS

ITEM METRIC (mm)
A 97
B 51
C 38
D 51
E 61
F 104
G 8
H 117
J 107
K 122
L 173
M 114
N 56
10
P
10
13
STaNDaRD (inch)
3.8
2.0
1.5
2.0
2.4
4.1
0.3
4.6
4.2
4.8
6.8
4.5
2.2
3/8" MNPT
3/8" HOSE
1/2" HOSE

TECHNICAL DATA

Height . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112 mm (4.4")
Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97 mm (3.8")
Depth. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173 mm (6.8")
Est. Ship Weight . . . . . . . . . . . . . . Polypropylene 0.9 kg (2.0 lbs)
Air Inlet - Hose. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 mm (1/4")
Liquid Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . Hose – 10 mm (3/8")
Liquid Discharge . . . . . . . . . . . . . . . . . . . . . . Hose – 10 mm (3/8")
Suction Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.3 m Dry (10.9')
Max. Flow Rate . . . . . . . . . . . . . . . . . . . . . . . . . 20.8 lpm (5.5 gpm)
NOTE: Do not exceed 8.6 bar (125 psig) gas or air supply
DIMENSIONS
pressure. Flow rates indicated were determined by pumping
water with HU100 model.

PERFORMANCE

HU38
Engineering
Operation &
HU100
Maintenance
Hose – 13 mm (1/2")
MNPT – 10 mm (3/8")
Hose – 13 mm (1/2")
MNPT – 10 mm (3/8")
9.3 m Wet (30.6')
