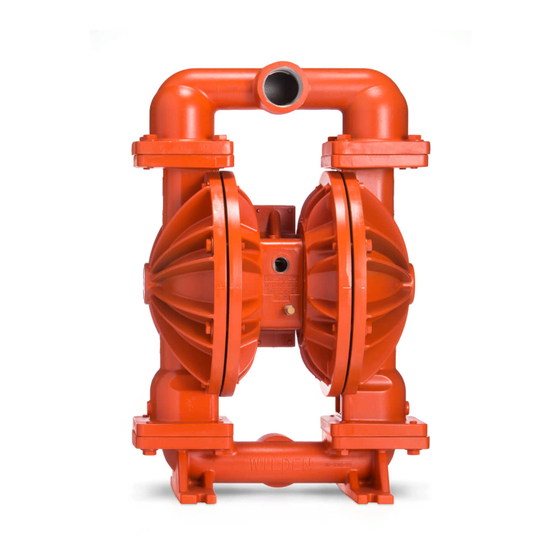

Summary of Contents for Dover Wilden PRO-FLO Series
Page 1
Engineering Operation & Maintenance P8/PX8 Original Series ™ Metal Pump W h e r e I n n o v a t i o n F l o w s www.wildenpump.com WIL-10320 -E- 08 REPLACES WIL-10320 -E- 07 WIL-10320-E...
T A B L E O F C O N T E N T S SECTION 1 CAUTIONS—READ FIRST! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1 SECTION 2 WILDEN PUMP DESIGNATION SYSTEM .
S e c t i o n 1 C A U T I O N S — R E A D F I R S T ! CAUTION: Do not apply compressed air to the CAUTION: Do not exceed 8.6 bar (125 psig) air exhaust port —...
S e c t i o n 2 W I L D E N P U M P D E S I G N A T I O N S Y S T E M P8/PX8 METAL LEGEND PX8 / XXXXX / XXX / XX / XXX / XXXX 51 mm (2") Pump O-RINGS...
S e c t i o n 3 H O W I T W O R K S — P U M P The Wilden diaphragm pump is an air-operated, positive displacement, self-priming pump. These drawings show flow pattern through the pump upon its initial stroke. It is assumed the pump has no fluid in it prior to its initial stroke. FIGURE 1 The air valve directs pressurized FIGURE 2 When the pressurized diaphragm, FIGURE 3 At completion of the stroke,...
S e c t i o n 4 D I M E N S I O N A L D R A W I N G S P 8 M e t a l DIMENSIONS ITEM METRIC (mm) STANDARD (inch) 51 mm G - ALUM.
Page 7
D I M E N S I O N A L D R A W I N G S DIMENSIONS ITEM METRIC (mm) STANDARD (inch) PX8 M e t a l 15.9 13.6 24.8 26.3 13.8 13.7 22.0 12.4 10.1 10.1 11.2 11.0...
S e c t i o n 5 A P E R F O R M A N C E P8 METAL RUBBER-FITTED 巴 英尺 磅/平方英寸 Height ........ 668 mm (26.3”) 耗气量 Width ......... 404 mm (15.9”) Depth ........343 mm (13.5”) Ship Weight ..Aluminum 32 kg (70 lb) 316 Stainless Steel 51 kg (112 lb) Cast Iron 47 kg (104 lb)
P E R F O R M A N C E P8 METAL REDUCED-STROKE PTFE-FITTED Height .........668 mm (26.3") Width ........404 mm (15.9") Depth ........348 mm (13.7") Ship Weight ..Aluminum 32 kg (70 lb) 316 Stainless Steel 51 kg (112 lb) Cast Iron 47 kg (104 lb) Alloy C 52 kg (114 lb) Air Inlet ........
S e c t i o n 5 A P E R F O R M A N C E P8 METAL ULTRA-FLEX™-FITTED Height .........669 mm (26.3") Width ........404 mm (15.9") Depth ........343 mm (13.5") Ship Weight ..Aluminum 32 kg (70 lb) 316 Stainless Steel 51 kg (112 lb) Cast Iron 47 kg (104 lb) Alloy C 52 kg (114 lb)
S e c t i o n 5 C S U C T I O N - L I F T C U R V E S P 8 M E T A L S U C T I O N - L I F T C A P A B I L I T Y Suction-lift curves are calibrated for pumps operating number of intake and discharge elbows, viscosity of...
S e c t i o n 5 B Pro-Flo X Operating Principle The Pro-Flo X™ air distribution system with the operator can select the optimal balance of flow and revolutionary Efficiency Management System (EMS) efficiency that best meets the application needs. offers flexibility never before seen in the world of Pro-Flo X™...
H O W T O U S E T H I S E M S C U R V E Example 1 SETTING 4 PERFORMANCE CURVE EMS CURVE 巴 英尺 磅/平方英寸 耗气量 泵送水时的流量 Figure 1 Figure 2 0.58 flow multiplier Example data point = Example data point = 0.48...
Page 16
H O W T O U S E T H I S E M S C U R V E Example 2.1 SETTING 4 PERFORMANCE CURVE EMS CURVE EMS Flow Settings 1 & 2 Figure 4 Figure 5 10.2 0.49 Example data point = flow multiplier This is an example showing how to determine the inlet air...
Page 17
H O W T O U S E T H I S E M S C U R V E Example 2.2 SETTING 4 PERFORMANCE CURVE EMS CURVE EMS Air Settings 1 & 2 Figure 6 Figure 7 10.2 0.40 Example data point = Example data point = air multiplier...
S U C T I O N - L I F T C U R V E S P X 8 M E T A L S U C T I O N - L I F T C A P A B I L I T Y Suction-lift curves are calibrated for pumps operating number of intake and discharge elbows, viscosity of at 305 m (1,000') above sea level.
S e c t i o n 6 S U G G E S T E D I N S T A L L A T I O N Wilden pumps are designed to meet the performance MUFFLER: Sound levels are reduced below OSHA requirements of even the most demanding pumping specifications using the standard Wilden muffler.
Page 26
S U G G E S T E D I N S T A L L A T I O N This illustration is a generic 压力表 representation of an air-operated (可选) EQUALIZER double-diaphragm pump. 切断阀 脉动均衡器 (可选) 出口 柔性接头 消音器...
Page 27
S U G G E S T E D O P E R A T I O N & M A I N T E N A N C E OPERATION: The P8 and PX8 are pre-lubricated, and the fluid discharge pressure or increasing the air inlet do not require in-line lubrication.
S e c t i o n 7 P U M P D I S A S S E M B L Y To o l s R e q u i r e d : CAUTION: Before any maintenance or repair is attempted, the compressed air line to the pump should be disconnected and all air pressure allowed to bleed from the •...
Page 29
P U M P D I S A S S E M B L Y Step 4 Step 5 Step 6 Remove the discharge valve balls Remove the two (2) small clamp Lift liquid chambers and center and seats from the liquid chambers bands which fasten the intake section from intake manifold to and inspect for nicks, chemical...
Page 30
P U M P D I S A S S E M B L Y Step 9B Step 10 2) The outer piston, diaphragm and To remove diaphragm assembly inner piston separate from the shaft from shaft, secure shaft with soft which remains connected to the jaws (a vise fitted with plywood, opposite side diaphragm assembly.
Page 31
A I R V A L V E / C E N T E R S E C T I O N D I S A S S E M B L Y To o l s R e q u i r e d : CAUTION: Before any maintenance or repair is attempted, the compressed air line to the pump should be disconnected and all air pressure allowed to bleed from the •...
Page 32
A I R V A L V E / C E N T E R S E C T I O N D I S A S S E M B L Y Step 4 Step 5 Step 6 Remove air valve end cap to expose Remove air valve spool from air Remove pilot spool retaining snap air valve spool by simply lifting up...
Page 33
A I R V A L V E / C E N T E R S E C T I O N D I S A S S E M B L Y Step 10A Step 10B Check center block shaft seals for NOTE: Threaded sleeves (see...
Page 34
R E A S S E M B L Y H I N T S & T I P S ASSEMBLY: SHAFT SEAL INSTALLATION: Upon performing applicable maintenance to the air PRE-INSTALLATION distribution system, the pump can now be reassembled. •...
Page 35
G A S K E T K I T I N S T A L L A T I O N Carefully prepare sealing surfaces by removing all deburr all sealing surfaces. Mating surfaces must debris and foreign matter from diaphragm bead be properly aligned in order to ensure positive and all mating surfaces.
S e c t i o n 8 E X P L O D E D V I E W & P A R T S L I S T I N G P8 METAL F u l l - S t r o k e D i a p h r a g m - F i t t e d E X P L O D E D V I E W FULL-STROKE PTFE-FITTED ALL CIRCLED PART IDENTIFIERS ARE INCLUDED IN REPAIR KITS (see Section 9).
Page 37
E X P L O D E D V I E W & P A R T S L I S T I N G P8 METAL F u l l - S t r o k e D i a p h r a g m - F i t t e d P A R T S L I S T I N G P8/SSAPP/0070 P8/AAAPP...
E X P L O D E D V I E W & P A R T S L I S T I N G P8 METAL R e d u c e d - S t r o k e D i a p h r a g m - F i t t e d E X P L O D E D V I E W ULTRA-FLEX™...
Page 39
E X P L O D E D V I E W & P A R T S L I S T I N G P8 METAL R e d u c e d - S t r o k e D i a p h r a g m - F i t t e d P A R T S L I S T I N G P8/SSAPP/0070 P8/AAAPP...
E X P L O D E D V I E W & P A R T S L I S T I N G P8 METAL SANIFLO™ 1935/2004/EC E X P L O D E D V I E W FULL-STROKE PTFE REDUCED-STROKE PTFE FULL-STROKE IPD...
Page 41
E X P L O D E D V I E W & P A R T S L I S T I N G P8 METAL SANIFLO™ 1935/2004/EC P A R T S L I S T I N G P8/SSAPP/ P8/SSAPP/ 1935/2004/EC...
E X P L O D E D V I E W & P A R T S L I S T I N G PX8 METAL F u l l - S t r o k e D i a p h r a g m - F i t t e d E X P L O D E D V I E W FULL-STROKE PTFE-FITTED ALL CIRCLED PART IDENTIFIERS ARE INCLUDED IN REPAIR KITS (see Section 9).
Page 43
E X P L O D E D V I E W & P A R T S L I S T I N G PX8 METAL F u l l - S t r o k e D i a p h r a g m - F i t t e d P A R T S L I S T I N G PX8/AAAAA PX8/WWAAA...
E X P L O D E D V I E W & P A R T S L I S T I N G PX8 METAL R e d u c e d - S t r o k e D i a p h r a g m - F i t t e d E X P L O D E D V I E W 20 18 ULTRA-FLEX™- FITTED...
Page 45
E X P L O D E D V I E W & P A R T S L I S T I N G PX8 METAL R e d u c e d - S t r o k e D i a p h r a g m - F i t t e d P A R T S L I S T I N G PX8/AAAAA PX8/WWAAA...
E X P L O D E D V I E W & P A R T S L I S T I N G P8X METAL SANIFLO™ 1935/2004/EC E X P L O D E D V I E W FULL-STROKE PTFE FULL-STROKE IPD REDUCED-STROKE PTFE...
Page 47
E X P L O D E D V I E W & P A R T S L I S T I N G P8X METAL SANIFLO™ 1935/2004/EC P A R T S L I S T I N G XPX8/SSAAA/ XPX8/SSNNN/ XPX8/SSSSS/...
Page 48
E X P L O D E D V I E W & P A R T S L I S T I N G , C O N T . P8X METAL SANIFLO™ 1935/2004/EC E X P L O D E D V I E W FULL-STROKE RUBBER/TPE/PTFE COMPONENTS Shaft, Pro-Flo 08-3810-09...
S e c t i o n 9 E L A S T O M E R O P T I O N S P8 & PX8 Metal REDUCED-STROKE FULL-STROKE ULTRA-FLEX™ BACK-UP VALVE VALVE VALVE SEAT BACK-UP MATERIAL DIAPHRAGMS (2) DIAPHRAGMS (2) DIAPHRAGMS (2) BALLS (4)
Page 50
DECLARATION OF COMPLIANCE STATEMENT OF COMPLIANCE TO REGULATIONS (EC) No 1935/2004 ON MATERIALS AND ARTICLES INTENDED TO COME INTO CONTACT WITH FOOD (as per Article 16 of REGULATION (EC) No 1935/2004) ® Wilden Pump & Engineering, LLC, 22069 Van Buren Street, Grand Terrace, CA 92313-5607 USA, declares the equipment listed below intended to come into contact with food comply with the requirements of Regulation (EC) No 1935/2004 of 27 October 2004 and (EC) No 2023/2006 of 22...
Page 51
W a r r a n t y Each and every product manufactured by Wilden Pump and Engineering, LLC is built to meet the highest standards of quality. Every pump is functionally tested to insure integrity of operation. Wilden Pump and Engineering, LLC warrants that pumps, accessories and parts manufactured or supplied by it to be free from defects in material and workmanship for a period of five (5) years from date of installation or six (6) years from date of manufacture, whichever comes first.
