Summary of Contents for Dover PSG WILDEN HS430S

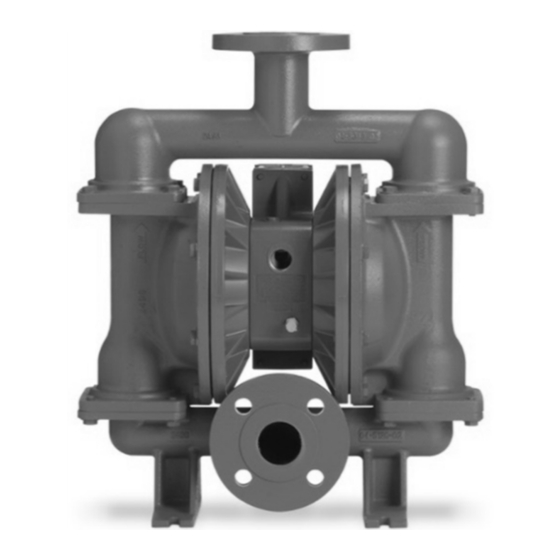

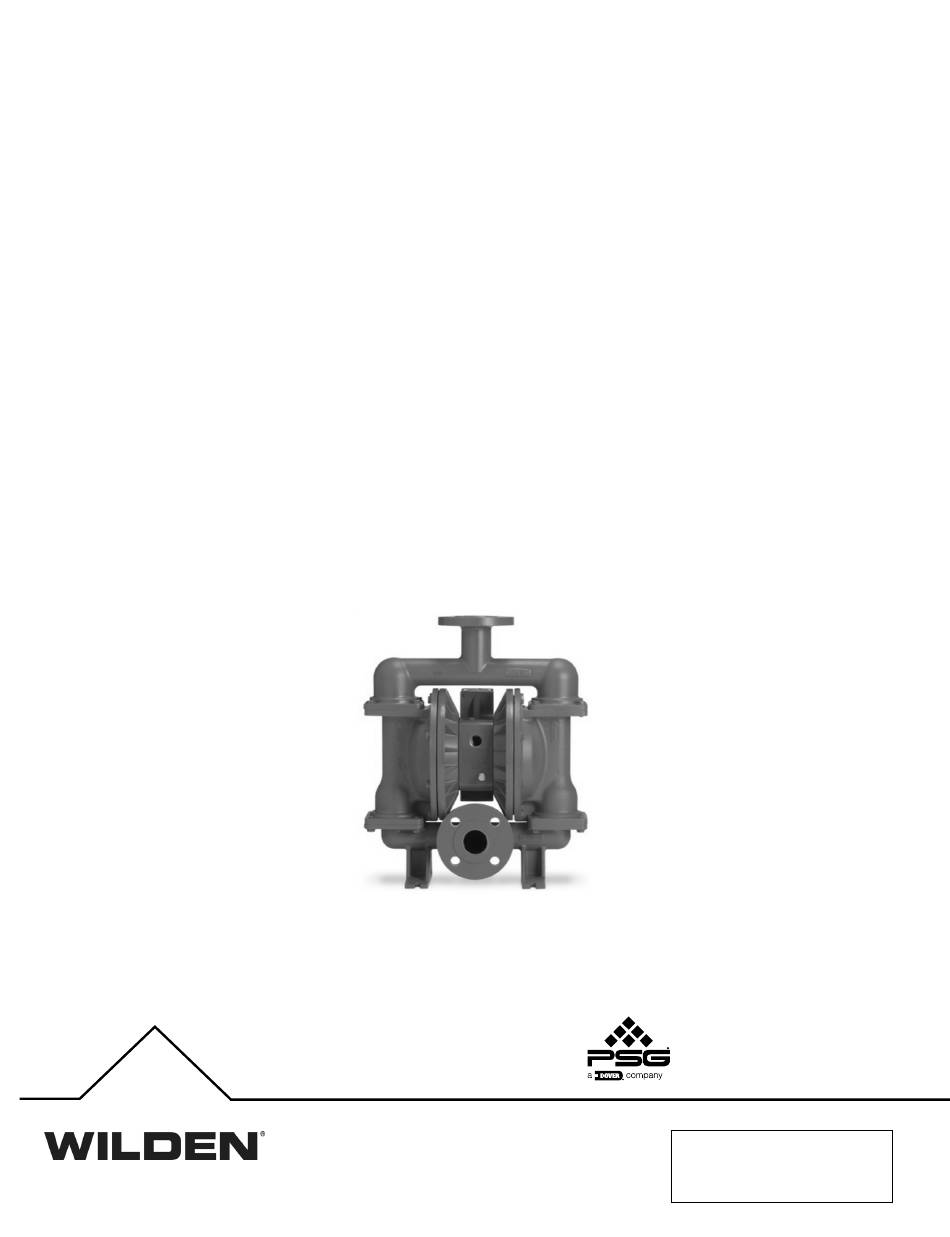

- Page 1 ENGINEERING OPERATION & MAINTENANCE MANUAL HS430S High Pressure Bolted Metal Pump Where Innovation Flows WIL-11113-E-04...
- Page 2 No part of this document may be reproduced, stored in a retrieval system, or transmitted in any form or any means electronic or mechanical, including photocopying and recording, without the written permission of PSG, a Dover Company, except as described by the terms of those agreements.
-
Page 3: Table Of Contents
HS430S High Pressure Bolted Metal CONTENTS SECTION 1: Precautions – Read First! ..................... 4 SECTION 2: Wilden Pump Designation System ..................5 SECTION 3: How It Works .......................... 6 SECTION 4: Dimensional Drawings ......................7 SECTION 5: Performance ........................... 8 HS430S Aluminum TPE-Fitted ........................ -
Page 4: Section 1: Precautions - Read First
HS430S High Pressure Bolted Metal SECTION 1 PRECAUTIONS – READ FIRST! WARNING: Always wear safety glasses when operating a CAUTION: All piping, valves, gauges and other components pump to avoid eye injury. If diaphragm rupture occurs, installed on the liquid discharge must have material being pumped may be forced out of the air exhaust. -
Page 5: Section 2: Wilden Pump Designation System
HS430S High Pressure Bolted Metal SECTION 2 WILDEN PUMP DESIGNATION SYSTEM HS430S METAL LEGEND XHS 430S / / X X X / X X / X X / X X X X 38 mm (1-1/2") Pump O-RINGS MODEL VALVE SEATS SPECIALTY Maximum Flow Rate: VALVE BALLS CODE... -
Page 6: Section 3: How It Works
HS430S High Pressure Bolted Metal SECTION 3 HOW IT WORKS – AIR-OPERATED DOUBLE-DIAPHRAGM PUMP The Wilden diaphragm pump is an air-operated, positive displacement, self-priming pump. These drawings show flow pattern through the pump upon its initial stroke. It is assumed the pump has no fluid in it prior to its initial stroke. FIGURE 1 When air pressure is supplied to the FIGURE 2 Once the shaft has reached the FIGURE 3 At completion of the stroke, the air... -
Page 7: Section 4: Dimensional Drawings
HS430S High Pressure Bolted Metal SECTION 4 DIMENSIONAL DRAWING DIMENSIONAL DRAWING HS430S ALUMINUM DIMENSIONS STANDARD ITEM METRIC (mm) (inch) 17.4 12.7 20.9 24.0 23.9 13.1 20.9 12.3 DIN (mm) ANSI (Inch) 150 DIA. 6.1 DIA. 109 DIA. 4.5 DIA. 18 DIA. 0.9 DIA. -
Page 8: Section 5: Performance
HS430S High Pressure Bolted Metal SECTION 5 PERFORMANCE PERFORMANCE HS430S ALUMINUM TPE-FITTED Ship Weight……………………….29 kg (64 lb) Air Inlet……………………..……....3/4" Inlet…………………………….38 mm (1-1/2") Outlet……………………………38 mm (1-1/2") Suction Lift……………………..2.0 m Dry (6.8') 9.0 m Wet (29.5') Disp. Per Stroke …………….1.66 L (0.44 gal) Max. -
Page 9: Suction Lift Capability
HS430S High Pressure Bolted Metal SUCTION LIFT CAPABILITY HS430S METAL SUCTION LIFT CAPABILITY Suction-lift curves are calibrated for pumps operating at 305 m (1,000') above sea level. This chart is meant to be a guide only. There are many variables that can affect your pump's operating characteristics. -
Page 10: Section 6: Suggested Installation, Operation, Maintenance, And Troubleshooting
HS430S High Pressure Bolted Metal SECTION 6 SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING The best choice possible will be a site involving the shortest and ilden pumps are designed to meet the performance requirements of straightest hook-up of suction and discharge piping. Unnecessary elbows, even the most demanding pumping applications. - Page 11 HS430S High Pressure Bolted Metal SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING restarted by reducing the fluid discharge pressure or increasing the NOTE: In the event of a power failure, close the shut- air inlet pressure. The Wilden High Pressure Pumps run solely on off valve if you do not want the pump to restart when the compressed air and does not generate heat, therefore your process power returns.
-
Page 12: Section 7: Disassembly/Reassembly
HS430S High Pressure Bolted Metal SUGGESTED INSTALLATION, OPERATION, MAINTENANCE AND TROUBLESHOOTING Troubleshooting Pump air valve freezes. Pump will not run or runs slowly. Check for excessive moisture in the compressed air. Remove plug from pilot spool exhaust. Either install a dryer or a hot air generator for compressed Ensure that the air inlet pressure is at least 0.4 bar (5 psig) air. -
Page 13: Pump Disassembly
HS430S High Pressure Bolted Metal SECTION 7 DISASSEMBLY / REASSEMBLY PUMP DISASSEMBLY Tools Required: CAUTION: Before attempting any maintenance or repair, disconnect the compressed air line to the pump and allow all air pressure to bleed from the pump. Disconnect all 9/16"... - Page 14 HS430S High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY DISASSEMBLY / REASSEMBLY Step 4 Step 5 Step 6 Remove the discharge valve balls and Using the appropriate-sized wrench, Remove the inlet manifold to expose the valve seats from the liquid chambers and loosen the inlet manifold from the liquid valve balls and valve seats.
- Page 15 HS430S High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY Step 10 Step 11 Step 12 Inspect the diaphragm assembly for wear, To remove the diaphragm assembly from Remove outer piston and stud if damage or chemical attack. Replace any shaft, secure shaft with soft jaws equipped.
-
Page 16: Air Valve/Center Section Disassembly
HS430S High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY AIR VALVE / CENTER SECTION DISASSEMBLY Tools Required: CAUTION: Before attempting any maintenance or repair, disconnect the compressed air line to the pump and allow all air pressure to bleed from the pump. Disconnect all 3/16"... - Page 17 HS430S High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY Step 7 Step 8 Step 9 Gently remove the pilot spool from the Remove the modulator spool from Using the appropriate-sized wrench, sleeve and inspect for nicks, wear or the center section. Check for wear to the loosen the fasteners and lift away damage.
- Page 18 HS430S High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY Step 13 Step 14 Loosen and remove the four (4) air valve bolts from the center section assembly. Remove the air valve end cap to expose the air valve spool by lifting up on the end cap. Lift the muffler plate and muffler plate gasket away from the center block.
-
Page 19: Reassembly Hints And Tips
HS430S High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY SINGLE-POINT EXHAUST Step 1 Step 2 Remove the pilot exhaust muffler in the pilot Optional: Install a single-point exhaust gasket (04-2639-52). The single-point air valve bleed port located at the front of the center gasket can be purchased as a spare part or included with the purchase of a new block. - Page 20 HS430S High Pressure Bolted Metal DISASSEMBLY / REASSEMBLY BUSHING SEAL INSTALLATION Pre-Installation Tools After all the old seals have been removed, the inside of the bushing The following tools can be used to aid in the installation of should be cleaned to ensure no debris is left that may cause premature the new seals: damage to the new seals.
-
Page 21: Section 8: Exploded View And Parts List
HS430S High Pressure Bolted Metal SECTION 8 EXPLODED VIEW AND PARTS LIST EXPLODED VIEW AND PARTS LIST HS430S METAL LW0294 REV. C ALL CIRCLED PART IDENTIFIERS ARE INCLUDED IN REPAIR KITS WIL-11113-E-04... - Page 22 HS430S High Pressure Bolted Metal EXPLODED VIEW AND PARTS LIST EXPLODED VIEW AND PARTS LIST Model Description HS430S/SSAAA/…/ HS430S/SSSSS/…/ HS430S/ASAAA/…/ Item Description Qty. Air Distribution Components Air Valve Assembly, Pro-Flo ® Shift 04-2039-01 04-2039-03 04-2039-01 O-Ring, End Cap (-225, Ø1.859" x Ø.139") 04-2390-52-700 End Cap 04-2340-01...
- Page 23 HS430S High Pressure Bolted Metal NOTES NOTES WIL-11113-E-04...
- Page 24 P: +1 (909) 422 -1730 psgdover.com Where Innovation Flows ® ® Copyright 2021 PSG , a Dover Company ® reserves the right to modify the information and illustrations contained in this document without prior notice. This is a non-contractual document. WIL-11113-E-04...
