FUEL MANAGEMENT GAUGE

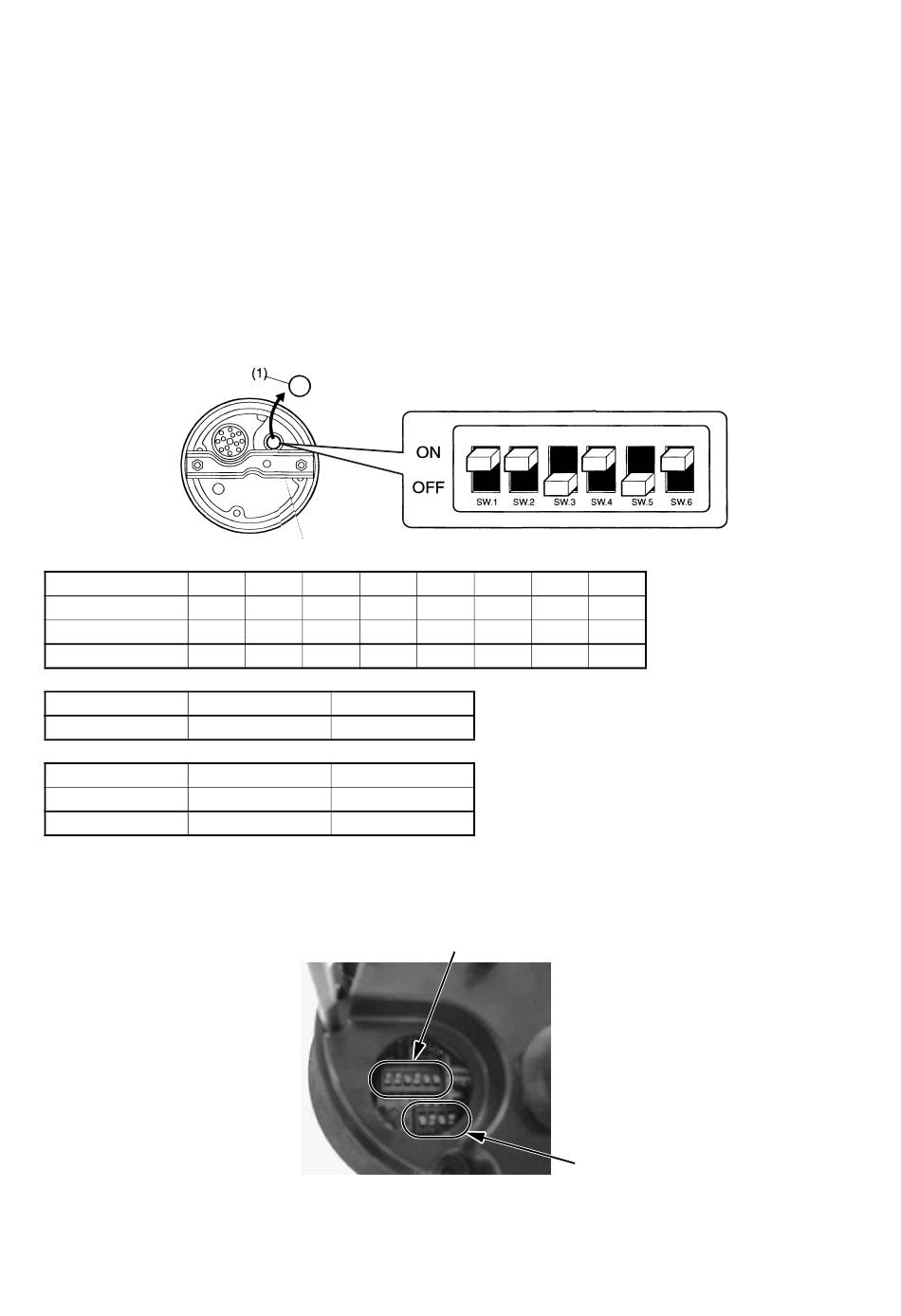

FUEL MANAGEMENT GAUGE SET UP

Follow the procedure below.
1. Remove the grommet (1) on the back of the meter.
2. Select the fuel measurement switch 4 for either gallons per hour (gph) or liters per hour (L/h).
3. Select the signal input switch 5 and 6 for either the digital speedometer or a GPS.
4. Set the compensator switch 1, 2 and 3 if there is a difference of fuel consumption between the
actual amount and meter reading.
For example:
Actual amount of fuel used: 50 gallons
Fuel management gauge indicates: 51 gallons
Different = + 1 gallon
1 gallon / 50 gallons = 0.02 or 2%
SW.1 ON
SW.2 ON
SW.3 ON
Compensation –4%
SW.4
Unit
SW.5
SW.6
Input source Speedometer

FUEL MGT GAUGE WITH SPEEDOMETER SET UP

For 6 line switches (1), see the above instruction.
Switch 6 is not used.
For 4 line switches (2), see DIGITAL SPEEDOMETER SET UP on page 5-11.
OFF ON OFF
ON OFF OFF
ON ON ON
–3% –2% –1%
OFF ON
L/h gph
OFF ON
ON OFF
GPS
ON OFF ON
ON ON OFF
OFF OFF OFF
0 +1% +2%
(1)
(2)
5-17
OFF
OFF
OFF
+3%
