DR30D, DR30DH, DR30DI, DR30DIH
Document # PG05-006
Product tolerances: ±1/16" (±1.6 mm) unless otherwise stated.
46 3/8" (117.8 cm)
External handle
shown, some models
have integral handle
(see inside cover)
Width at front panel:
29 7/8" (75.9 cm)
46 3/16" (117.3 cm)
External handle
shown, some models
have integral handle
(see inside cover)
Width at front panel:
29 7/8" (75.9 cm)
All specifications subject to change without notice.
Distinctive
Dual Fuel Range
Front of open door
28 7/8" (73.3 cm)
Front of handle
28 1/2" (72.4 cm)
Front of knobs
26 1/2" (67.3 cm)
Control panel
24 3/8" (61.9 cm)
Rear of control panel/oven door
1 1/8" (2.9 cm)
9" (22.9 cm)
Backguard**
3" (7.7 cm)
Backguard*
1 1/8" (2.9 cm) to cooking
surface (top of grates) from
top of trim
(90.8 cm)
Full size side panel
(96.2 cm)

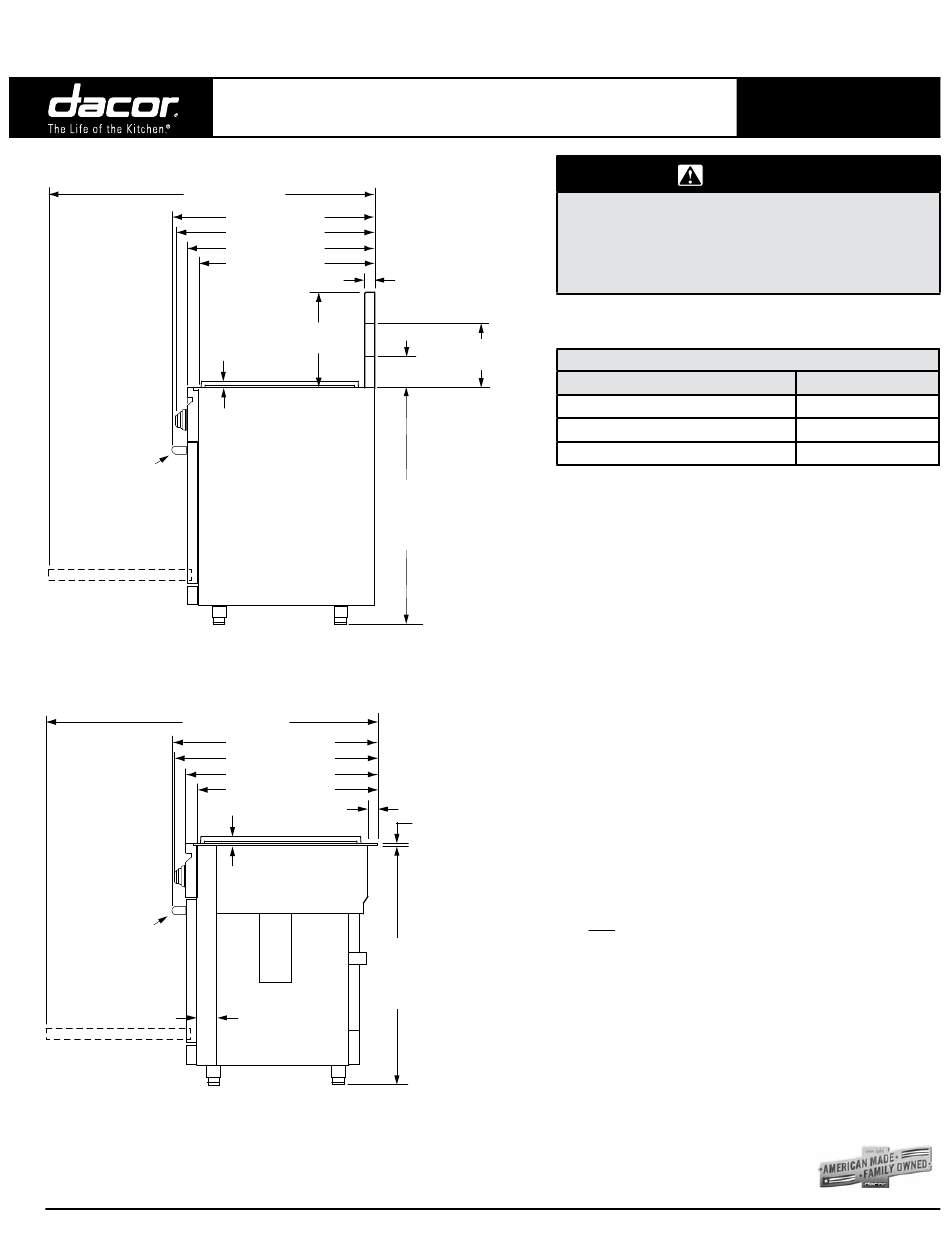

PRoDUct DImENsIoNs - moDEL DR30D[H] (FREEstANDING moDEL)
Front of open door
28 11/16" (72.9 cm)
Front of handle
28 5/16" (71.9 cm)
Front of knobs
26 5/16" (66.8 cm)
Control panel
24 3/16" (61.4 cm)
Rear of control panel/oven door
1" (2.5 cm)
1 7/16" (3.7 cm) to cooking
surface (top of grates) from
bottom of trim
35 7/16"
(90.0 cm)
37 9/16"
(95.4 cm)
3 1/4" (8.3 cm)
Removable
side panel
PRoDUct DImENsIoNs - moDEL DR30DI[H] (sELF-RImmING moDEL)
™
30" Wide
•
•
6" (15.2 cm)
Backguard**
* Standard
** Optional
35 3/4"
NOTE: Model DR30D[H] is NOT designed for self-rimming
installation or installation with a raised vent.
to
37 7/8"
Rear trim overhang
5/16" (8 mm)
Trim thickness
NOTES:
■
■
to
■
www.dacor.com
PLANNING
warNINg
Observe all governing codes and ordinances during
planning and installation. Contact your local building
department for further information.
This appliance must be installed in accordance with
the accompanying installation instructions.
Optional Backguard and Island Trim Part Numbers
Description
Island trim kit (no backguard)
6 inch trim kit
9 inch trim kit
When installing model DR30DI[H] with a raised vent, install
only Dacor model ERV3015.
The backguards shown above for model DR30D[H] are NOT
compatible with model DR30DI[H].
This model can be installed in a freestanding configuration
between cabinets, provided the countertop is as high at the
trim around the cooktop.
Phone: (800) 793-0093
Revised 06/13/13 Page 1/7
GUIDE
Part Number
ADTK30D
ADB3006
ADB3009
