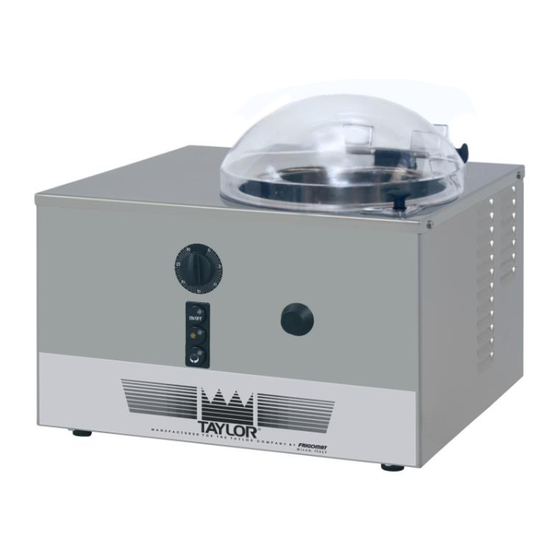

OPERATING INSTRUCTIONS
AND MAINTENANCE
Series-Série-Serie
C124 04
C125 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C125 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Taylor C125

Summary of Contents for Taylor C125

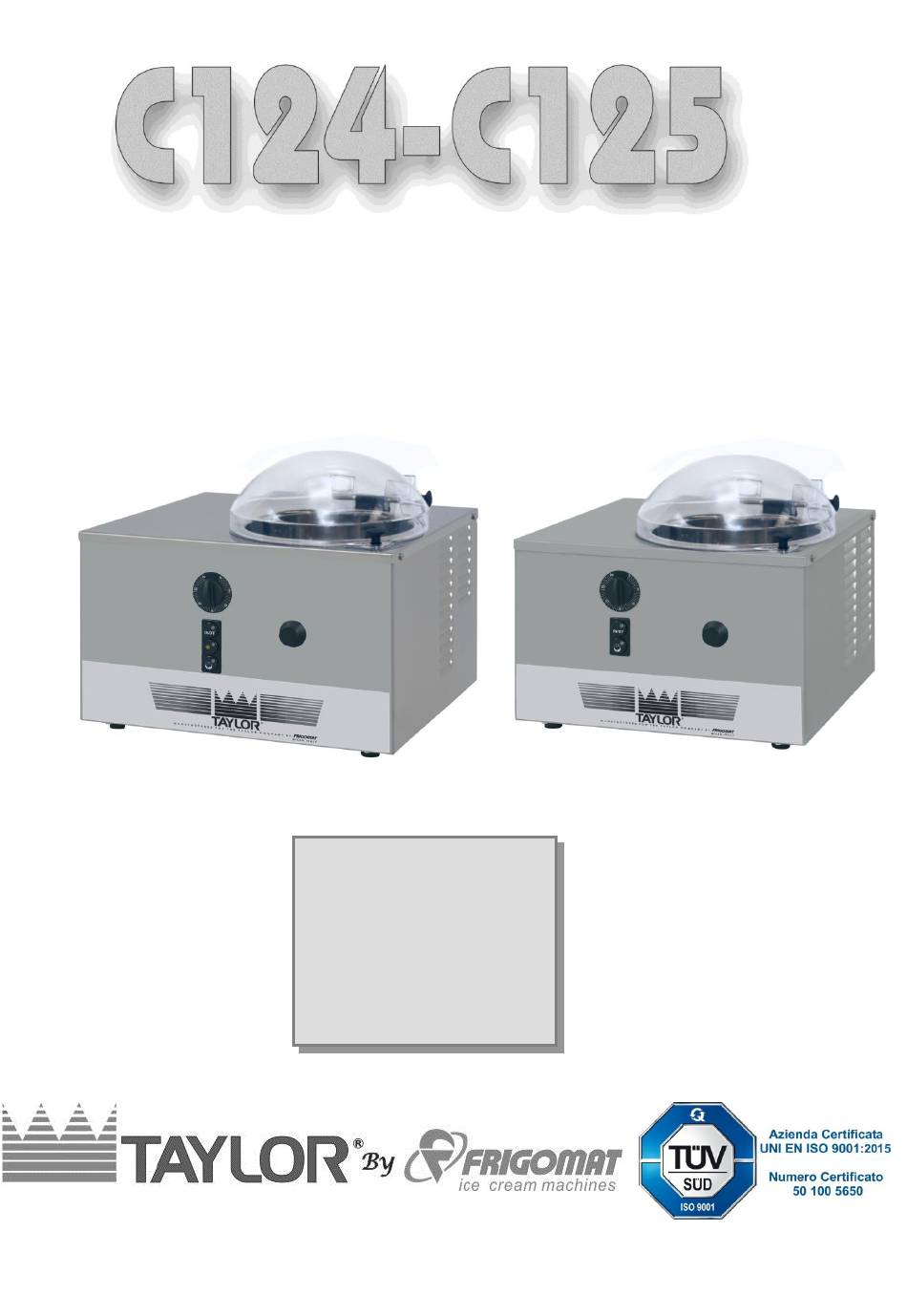

  • Page 1 OPERATING INSTRUCTIONS AND MAINTENANCE Series-Série-Serie C124 04 C125 03...
  • Page 2 1 - ENGLISH...
  • Page 3 IMPORTANT We recommend to carefully and fully read the present manual before using your TAYLOR machine. In your own interest, pay particular attention to the following warnings: The non-observance of this warning can jeopardize the user’s health and the correct operation of the machine.

  • Page 4: Table Of Contents

    The following pages report all information necessary to correctly install, commission, adjust and service your machine. TAYLOR reserves the right to carry out all changes necessary to improve its product or manual without prior notice and to insert them in the subsequent issues.

  • Page 5: Transport, Handling And Storage

    Packing elements such as plastic bags, nails, expanded polystyrene, cartons, etc. must be left out of the children’s reach. 1.3 PACKING DIMENSIONS CASE MODEL SIZES (CM) WEIGHT N- L (KG) C124 56,5 X 52,5X h. 48,5 45-63 C125 595 X 590 X h. 465 55-73 ENGLISH - 4...

  • Page 6: Marking And Graphics

    STOP position, the master switch is off and/or the multipolar plug disconnected. TAYLOR declines any liability for accidents deriving from an improper use of the machine due to the non-compliance with the above-mentioned recommendations.

  • Page 7: Installation

    3. INSTALLATION 3.1 FIELD OF USE The batch freezers SERIES G are espressly designed and engineered for ice-cream batch freezing cycles and for the production of granita. 3.2 LIMITS OF USE Never use the machine with variable supply voltage and/or more than +/- 10% of the value showed in the nameplate or when the feeder is damaged;...

  • Page 8: Operations

    4. OPERATION 4.1 CONTROLS 1. Cover It hermetically seals the cylinder during the working cycles it avoids that the mix gets in contact with powders and It can be easily removed for cleaning purpose. 2. Cover Pin Maintains the cover in correct position.
  • Page 9 1. FREEZING TIMER With the freezing timer it is possible to set the production timeand consequently changing consistency and the look of the product. Turning the timer you activate the compressor and you start the production. In order to activate the compressor and starting the production it is necessary to change over the machine in ON and check that the led is green 2.

  • Page 10: Ice Cream And Granita Production

    Observe the suggested minimum and maximum quantities per cycle according to the following table: MODELL MIN (LITRES) MAX (LITRES) C124 C125 The non-observance of the minimum and maximum batch values cause malfunction of the machine and, sometimes, serious damages.

  • Page 11: Coffee-Granita Production

    It is possible to increase or decrease the remaingin freezing period acting on the timer in whatever moment. Once optained the required consistency, stop the machine by pressing the ON-OFF pushbutton and check that the led is grey. Lift the cover and proceed with the extraction of the product using the showel in outfit.

  • Page 12: Conservation Of Ice Cream

    4.4. CONSERVATION OF ICE CREAM (for model G10 only) function “ice cream conservation” maintains the product for a long period of time at correct temperature and consistency directly in the freezing tank. Thanks to this function you may decide to distribute the ice cream according to needed quantity and time periods .

  • Page 13: Maintenance

    In case of troubles, make sure that they are not caused by a lack of servicing. On the contrary, ask for the intervention of a TAYLOR customer service. In case it is necessary to replace a piece, always ask a distributor or an authorized retailer for ORIGINAL spare parts.
  • Page 14 6. Pour in the cylinder a little quantity of cleaning solution. Wash carefully. 7. Use a sponge for removing from the cylinder Rinse carefully using clear warm water. If required repeat the operation. 8. Sanitize carefully the cylinder and all components previously disassembled and cleaned.

  • Page 15: Trouble-Shooting

    6. TROUBLE-SHOOTING TROUBLE POSSIBLE CAUSES REMEDIES master switch oper turn the switch off lower the cover and /or verify if it is cover lifted up or not assembled correctly assembled the machien does not start verify that the led of the (pushbutton ON-OFF is activated select “cyclic agitation”...
  • Page 16 7 APPENDICI / APPENDICES 7.1 Dati tecnici / Machine Specification Modello / Model C124 C125 Larghezza 431,5 Width 480 Dimensioni (mm) Profondità 467,5 Depth 490 Size (mm) Altezza 321,5 Height 340 Peso netto (kg) 46,8 Net Weight (kg) Tensione di alimentazione...
  • Page 17 C124 C125 APPENDICI - 2...

  • Page 18: Refrigerant Circuit Diagram

    7.2 Refrigerant circuit diagram 3 - APPENDICI...
  • Page 19 7.3 Electric System C124 APPENDICI - 4...
  • Page 20 7.3 Electric System C125 5 - APPENDICI...

  • Page 21: Spare Parts

    7.4 SPARE PARTS For spare parts ordering, always mention the corresponding code number and the name reported on each table caption. It is also recommended to always mention the machine model and the serial number as well as the technical data (voltage, frequency and phases), to make the identification of the component easier.
  • Page 22 C124/s04 Tav.1/3 7 - APPENDICI...
  • Page 23 C124/s03 Tav.1/3 COD. DESCRIZIONE DESCRIPTION L20.42381 Perno portello Cover pin P14.37569 Pomolo coperchio Cover knob E07.37566 Magnete Magnet P18.37729 Pattino raschiante Scraper E07.37565 Sensore Switch D04.104 Timer FreezingTimer E07.37511 Gruppo pulsanti Pushbuttons M02.37806 Etichetta anteriore Lower label A02.38557 Carenatura anteriore Front panel A02.37510 Pannello posteriore...
  • Page 24 C125/s03 Tav.1/3 9 - APPENDICI...
  • Page 25 C125/s03 Tav.1/3 COD. DESCRIZIONE DESCRIPTION L20.42381 Perno portello Cover pin P14.37569 Pomolo coperchio Cover knob E07.37566 Magnete Magnet P18.37729 Pattino raschiante Scraper E07.37565 Sensore Switch B15.037 Cerniera fissa Fixed hinge D04.104 Timer FreezingTimer M02.37806 Gruppo pulsanti Pushbuttons M02.38304 Etichetta anteriore Lower label P19.37838...
  • Page 26 C124/s04 Tav.2/3 11 - APPENDICI...
  • Page 27 C124/s03 Tav2/3 COD. DESCRIZIONE DESCRIPTION A03.116 Condensatore aria Air condenser B03.37488 Ventola B03.37489 Staffa Fan support A01.37480 Telaio Frame P06.104 Piedino Foot D06.143 Pressacavo Cable grip A02.37514 Griglia Grate A01.218 Compressore 230/50/1 Compressor 230/50/1 D04.231 Condensatore avviamento Start condenser E01.37487 Motore ventilatore Fan motor E06.37700...
  • Page 28 C125/s03 Tav.2/3 13 - APPENDICI...
  • Page 29 C125/s03 Tav2/3 COD. DESCRIZIONE DESCRIPTION A03.096 Condensatore aria Air condenser B03.37587 Ventola B03.37092 Staffa Fan support A01.37584 Telaio Frame P06.104 Piedino Foot D06.143 Pressacavo Cable grip A02.37514 Griglia Grate E06.41895 Klixon 220/50/1 (A01.234) Klixon 220/50/1 (A01.234) E06.38621 Klixon 115/60/1 (B01.38104) Klixon 115/60/1 (B01.38104)
  • Page 30 C124/s04 Tav.3/3 15 - APPENDICI...
  • Page 31 C124/s04 Tav.3/3 COD. DESCRIZIONE DESCRIPTION E01.37491 Motore agitatore 230/50/1 Beater motor 230/50/1 E01.37962 Motore agitatore 115/60/1 Beater motor 115/60/1 D04.216 Condensatore marcia (E01.37491) Running condenser (E01.37491) E06.38622 Condensatore marcia (E01.37962) Running condenser (E01.37962) L06.37492 Puleggia conduttrice Guide pulley V02.050 Vite 10X50 Screw 10X50 A11.37495 Cuscinetto...
  • Page 32 C125/s03 Tav.3/3 17 - APPENDICI...
  • Page 33 C125/s03 Tav.3/3 COD. DESCRIZIONE DESCRIPTION E01.37491 Motore agitatore 230/50/1 Beater motor 230/50/1 E01.37962 Motore agitatore 115/60/1 Beater motor 115/60/1 D04.216 Condensatore marcia (E01.37491) Running condenser (E01.37491) E06.38622 Condensatore marcia (E01.37962) Running condenser (E01.37962) L06.37492 Puleggia conduttrice Guide pulley V02.050 Vite 10X50 Screw 10X50 A11.37495...
  • Page 34 NOTE / NOTES / NOTES / BEMERKUNG / NOTA...
  • Page 36 FRIGOMAT s.r.l., via 1° Maggio 26862 GUARDAMIGLIO (LO) – ITALIA tel. 0377.415011 – Fax. 0377.451079 www.frigomat.com info@frigomat.com 2018 cod. M04.37847...
