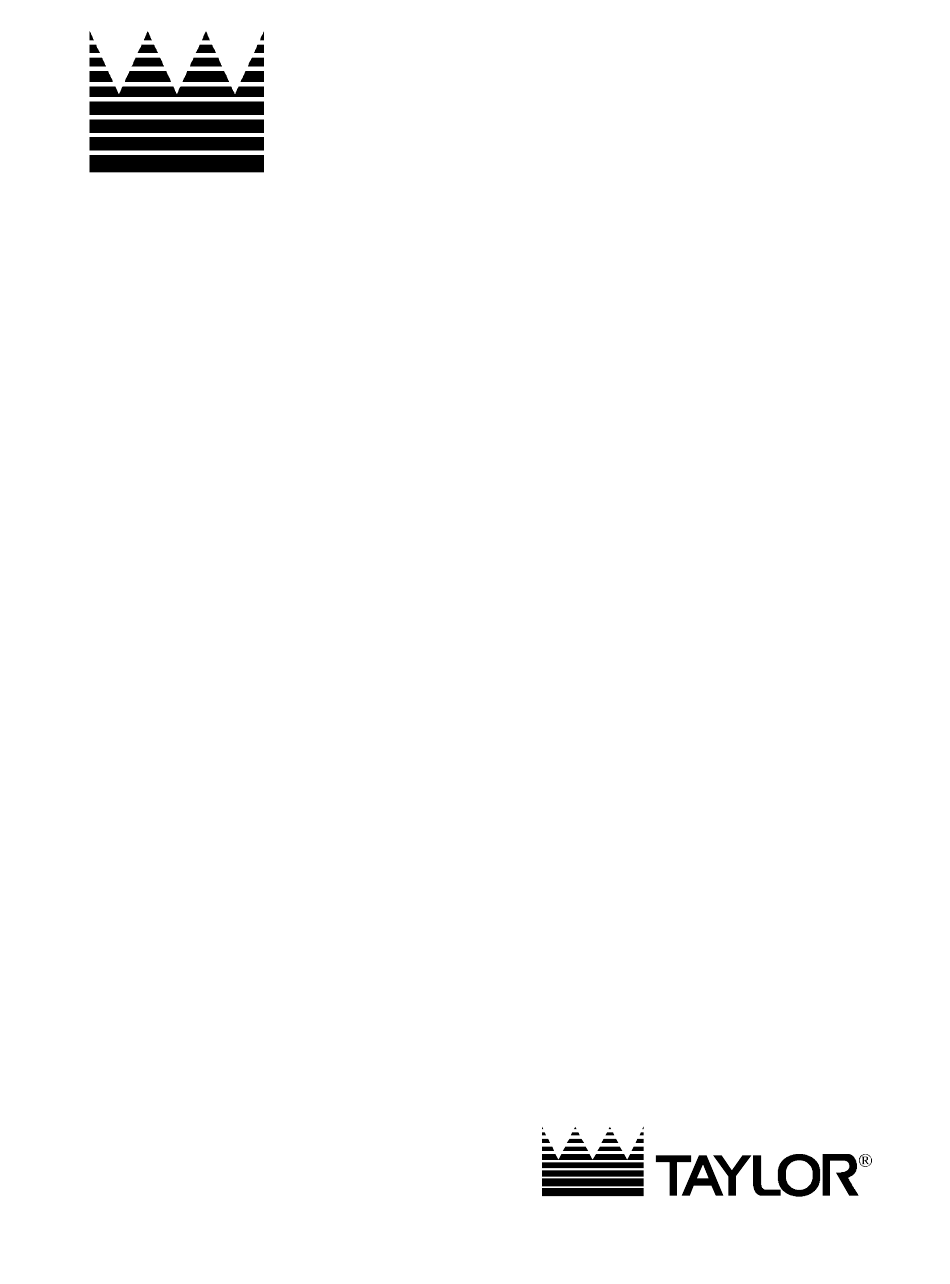

  • Page 1 Models 336, 338 & 339 Freezemaster 300 Series Operating Instructions 036029- M 4/16/09...
  • Page 2 Minimum Wire Ampacity: E April, 2009 Taylor All rights reserved. 036029--M Taylor Company The word Taylor and the Crown design 750 N. Blackhawk Blvd. are registered trademarks in the United States Rockton, IL 61072 of America and certain other countries.

  • Page 3: Table Of Contents

    Table of Contents Section 1 To the Installer ..........Section 2 To the Operator .
  • Page 4 E April, 2009 Taylor All rights reserved. 036029--M Taylor Company The word Taylor and the Crown design 750 N. Blackhawk Blvd. are registered trademarks in the United States Rockton, IL 61072 of America and certain other countries.

  • Page 5: To The Installer

    Taylor equipment. adequate air flow across the condenser(s). Failure to allow adequate clearance can reduce the refrigeration Only authorized Taylor service personnel capacity of the freezer and possibly cause permanent should perform installation and repairs on damage to the compressor.
  • Page 6 Water Connections Each unit requires one power supply for each data label on the unit. Check the data label(s) on the freezer (Water Cooled Units Only) for branch circuit overcurrent protection or fuse, circuit ampacity, and other electrical specifications. Refer to An adequate cold water supply must be provided with the wiring diagram provided inside of the electrical box a hand shut--off valve.
  • Page 7 Note: The following procedures should be performed ice packs and contact a physician immediately. by a trained service technician. Taylor reminds technicians to be cautious of government laws regarding refrigerant recovery, To correct rotation on a three--phase unit, interchange recycling, and reclaiming systems. If you have any...

  • Page 8: To The Operator

    Taylor parts, purchased from an authorized Taylor Distributor, and the required service work is provided It should also be noted that Taylor does not warrant the by an authorized Taylor service technician. Taylor refrigerant used in its equipment. For example, if the...

  • Page 9: Safety

    We at Taylor Company are concerned about the safety of the operator when he or she comes in contact with the freezer and its parts. Taylor has gone to extreme efforts to design and manufacture built--in safety DO NOT operate the freezer unless it is features to protect both you and the service technician.
  • Page 10 This freezer must be placed on a level surface. Failure to comply may result in personal injury or equipment damage. DO NOT allow untrained personnel to operate this machine. DO NOT operate the freezer unless all service panels and access doors are Cleaning and sanitizing schedules are restrained with screws.

  • Page 11: Operator Parts Identification

    Section 4 Operator Parts Identification Model 336 Figure 1 Item Description Part No. Item Description Part No. Cover A.--Hopper X37963--SER Panel A.--Lower Side (R & L) X24424 Pan--Drip 17--1/4” Long 027504 Adaptor A.--Caster X18915 Panel--Upper Side Left 028740 Caster--Swivel 5/8 Stem 4” 018794 Wheel Orifice...

  • Page 12: Model 338

    Model 338 Figure 2 Item Description Part No. Item Description Part No. Cover A.--Hopper--Standard X38458--SER Panel--Side (Lower Right) 048487 Gasket--Hopper Cover 20 Qt. 038474 Panel A.--Side Left X51596--SER Orifice 022465--100 Stud--Nose Cone 022822 O--Ring 3/8 OD x .070 W 016137 Panel A.--Front X51590 Tube A.--Feed SS 5/32 Hole...

  • Page 13: Model 339

    Model 339 Figure 3 Item Description Part No. Item Description Part No. Cover A.--Hopper--Standard X38458--SER Pan--Drip 17--1/4” Long 027504 Gasket--Hopper Cover 20 Qt. 038474 Panel--Upper Side Left 028740 Orifice 022465--100 Stud--Nose Cone 022822 O--Ring 3/8 OD x .070 W 016137 Panel A.--Front X32956 Tube A.--Feed SS 5/32 Hole...

  • Page 14: Three Spout Door

    Three Spout Door Figure 4 Item Description Part No. Item Description Part No. Seal--Drive Shaft 032560 O--Ring 1/4 OD x .070 W 015872 Shaft--Beater 033235 Nut--5/16--24 18--8 SS Jam 029639--BLK Beater A.--2.8 Qt. Helicore X35466 Nut--Stud Long 034382 Blade--Scraper--Plastic 035480 Nut--Stud Short 034383 Bearing--Front...

  • Page 15: Accessories

    Accessories Figure 5 Item Description Part No. Item Description Part No. Tool--O--Ring Removal 048260--WHT Pail--Mix 10 Qt. (336 & 339) 013163 Brush--Rear Bearing 1” D x 2”L 013071 Deflector--Blower Exhaust 047912 (339) Brush--Double Ended 013072 Deflector--Blower Exhaust-- 048345 Brush--Draw Valve 1” x 2” x 17” 013073 Side Discharge (336) Brush--Mix Pump Body 3”...

  • Page 16: Important: To The Operator

    Section 5 Important: To the Operator Item Description Power Switch Mix Refrigeration Button Standby Button Wash Button Auto Button Indicator Light “MIX LOW” Reset Button Symbol Definitions The following chart identifies the symbol definitions used on the operator switches. = ON = WASH = OFF = MIX LOW...

  • Page 17: Power Switch

    Power Switch When the “STANDBY” button is pressed, the light comes on, indicating the CTR (Cylinder Temperature Retention System) feature has been activated. In the When placed in the “ON” position, the power switch “STANDBY” mode, the “WASH” and “AUTO” functions allows SOFTECHR control panel operation.

  • Page 18: Reset Button

    Reset Button After priming the machine, lubricate the o--rings on the air tube (the end with the hole) and place it into the mix inlet hole. Every time the The reset button is located in the service panel. The draw handle is raised, new mix and air from the reset protects the beater motor from an overload hopper will flow down into the freezing cylinder.

  • Page 19: Operating Procedures

    Be sure the drive Assembly shaft fits into the drive coupling without binding. Note: When lubricating parts, use an approved food grade lubricant (example: Taylor Lube). MAKE SURE THE CONTROL SWITCH IS IN THE “OFF” POSITION. Step 1 Install the drive shaft.
  • Page 20 Figure 12 Slide the two o--rings into the grooves on the prime plugs. Apply an even coat of Taylor Lube to the o--rings and shafts. Figure 11 Slide the beater the remainder of the way into the freezing cylinder and over the end of the drive shaft.
  • Page 21 Insert the prime plugs into the holes in the top of the Step 5 freezer door, and push down. Install the three draw valves. Slide the two o--rings into the grooves on the draw valves, and lubricate. Figure 16 Lubricate the inside of the freezer door spouts, top and bottom, and insert the draw valves from the bottom until the slot in the draw valves comes into view.
  • Page 22 Slide the fork over the bar in the slot of the draw valve. Step 8 Secure with pivot pin. Install the front drip tray and the splash shield under the door spouts. Note: The Models 336, 338 and 339 have three draw handles.

  • Page 23: Sanitizing

    Sanitizing Slide the small o--ring into the groove of the air orifice. Do not lubricate the o--ring. Step 1 Prepare a pail of approved 100 PPM sanitizing solution (examples: 2--1/2 gal. [9.5 liters] of Kay--5R or 2 gal. [7.6 liters] of Stera--SheenR). USE WARM WATER FOLLOW MANUFACTURER’S SPECIFICATIONS.
  • Page 24 Step 6 Place an empty pail beneath the door spout and raise the prime plug. Figure 28 Step 4 Place the power switch in the “ON” position. Figure 31 Step 7 When a steady stream of sanitizing solution is flowing from the prime plug opening in the bottom of the freezer door, lower the draw handle.

  • Page 25: Priming

    Step 9 Step 2 Assemble the hopper gasket around the top edge of Once a steady stream of mix starts to flow from the the mix hopper. Stand the air tube in the corner of the prime plug opening in the bottom of the freezer door, hopper.

  • Page 26: Closing Procedure

    Draining Product From the Step 5 Press the “AUTO” button. The “AUTO” light will come Freezing Cylinder on indicating the main refrigeration system is operating. When the unit cycles off, the product will be Step 1 at serving viscosity. Press the “AUTO” button, cancelling compressor and beater motor operation.

  • Page 27: Cleaning

    Cleaning Brush Cleaning Step 1 Step 1 Prepare a pail of approved 100 PPM cleaning solution Prepare a sink with an approved cleaning solution (examples: 2--1/2 gal. [9.5 liters] of Kay--5R or 2 gal. (examples: Kay--5R or Stera--SheenR). USE WARM [7.6 liters] of Stera--SheenR).
  • Page 28 Step 4 Step 6 Remove the o--rings from the air tubes and air orifices. Remove the rear drip pan and take it to the sink for cleaning. Step 5 Return to the freezer with a small amount of cleaning Note: If the drip pan is filled with an excessive amount solution.

  • Page 29: Important: Operator Checklist

    Section 7 Important: Operator Checklist During Cleaning and Sanitizing j 6. On a designated day of the week, run the mix as low as feasible and discard it after closing. This will break the rerun cycle and reduce the Cleaning and sanitizing schedules are governed possibility of high bacteria and coliform counts.

  • Page 30: Winter Storage

    8. If your machine is water cooled, check the water refrigeration system. lines for kinks or leaks. Kinks can occur when Your local Taylor Distributor can perform this winter the machine is moved back and forth for storage service for you.

  • Page 31: Troubleshooting Guide

    Section 8 Troubleshooting Guide PROBLEM PROBABLE CAUSE REMEDY PAGE REF. 1. No product is being a. Freeze--up in mix inlet a. Call service technician to ------ adjust the mix hopper dispensed with draw valve hole. temperature. open and the machine in the “AUTO”...
  • Page 32 Inadequate lubrication of b. Lubricate properly. draw valve o--rings. c. Wrong type of lubricant is c. Use the proper lubricant (example: Taylor Lube). being used (example: petroleum base lubricant). Troubleshooting Guide Models 336, 338 & 339...
  • Page 33 PROBLEM PROBABLE CAUSE REMEDY PAGE REF. 10. No freezer operation after a. Unit is unplugged. a. Plug into wall receptacle. ------ pressing the “AUTO” button. b. The circuit breaker is off b. Turn the breaker on, or ------ replace the fuse. or the fuse is blown.

  • Page 34: Parts Replacement Schedule

    Section 9 Parts Replacement Schedule PART DESCRIPTION EVERY 3 MONTHS EVERY 6 MONTHS ANNUALLY Drive Shaft Seal Scraper Blade Freezer Door Gasket Front Bearing Draw Valve O--Ring Pivot Pin O--Ring Prime Plug O--Ring Air Tube O--Ring Air Orifice O--Ring White Bristle Brush, 3” x 7” Inspect &...

  • Page 35: Parts List

    Section 10 Parts List + Available Separately Models 336, 338 & 339 Parts List...
  • Page 36 + Available Separately Parts List Models 336, 338 & 339...
  • Page 37 + Available Separately Models 336, 338 & 339 Parts List...
  • Page 38 + Available Separately Parts List Models 336, 338 & 339...
  • Page 39 + Available Separately Models 336, 338 & 339 Parts List...
  • Page 40 + Available Separately Parts List Models 336, 338 & 339...
  • Page 41 + Available Separately Models 336, 338 & 339 Parts List...
  • Page 42 + Available Separately Parts List Models 336, 338 & 339...
  • Page 43 + Available Separately Models 336, 338 & 339 Parts List...
  • Page 44 + Available Separately Parts List Models 336, 338 & 339...
  • Page 45 Model 336 038333 Rev. 4/09...
  • Page 46 Model 336 038333-33 Rev. 4/09...
  • Page 47 Model 336 038333-62 Rev. 4/09...
  • Page 48 Model 338 051624- -27 Rev. 4/09...
  • Page 49 Model 338 051624- -33 Rev. 4/09...
  • Page 50 Model 339 046585- -27 Rev. 4/09...
  • Page 51 Model 339 046585- -33 Rev. 4/09...
  • Page 52 Model 339 046585-62 Rev. 4/09...

This manual is also suitable for:

Freezemaster 338Freezemaster 336Freezemaster 339
