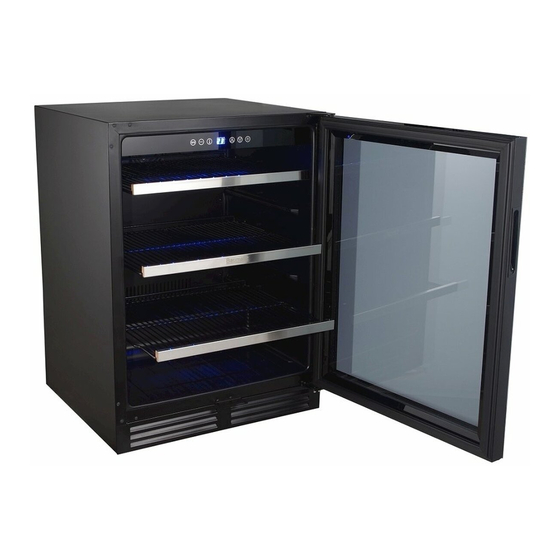

Baumatic BBCSZ150GL User Manual

Single zone beverage centre
Hide thumbs
Table of Contents

Advertisement

Quick Links

User manual for your Baumatic
150L Single Zone Beverage Centre
BBCSZ150GL/BBCSZ150SS
SINGLE ZONE BEVERAGE CENTRE
NOTE: This user manual contains important information including safety & installation
points which will enable you to get the most out of your Baumatic appliance. Please keep it in
a safe place so that it is readily available for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BBCSZ150GL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Baumatic BBCSZ150GL

Summary of Contents for Baumatic BBCSZ150GL

  • Page 1 NOTE: This user manual contains important information including safety & installation points which will enable you to get the most out of your Baumatic appliance. Please keep it in a safe place so that it is readily available for future reference.

  • Page 2: Table Of Contents

    Thank you for purchasing a Baumatic Beverage Centre. Your appliance is exceptionally easy to use and extremely efficient. Before being packaged and leaving the factory, the appliance was thoroughly checked with regard to safety and functionality. Before using the appliance, please carefully read these Operating Instructions.

  • Page 3: Environmental Note

    Disable the door lock to make sure that children cannot get stuck inside the appliance. o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the...

  • Page 4: Important Safety Information

    Important safety information Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact Baumatic Service Care.
  • Page 5 Do not place electrical devices inside of the appliance, such as mixers or ice cream makers. Service You should not attempt to repair the appliance yourself, as this could cause injury or a more serious malfunction. If you require a service call then please contact Baumatic Service Care.

  • Page 6: Structure Drawing

    Structure drawing The following pictures only show the structure of the appliance as well as the installation drawing. The dimension and shelf quantity may differ among the models of the same series.

  • Page 7: Installation

    Installation IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found on the front left edge of the inside of the wine cabinet.
  • Page 8 Positioning o Positioning the appliance requires two people in order to avoid injuries or damage to the appliance. o Your appliance should not be located in direct sunlight or exposed to continuous heat or extremes of temperature (e.g. next to a radiator or boiler). If this is not feasible, then you should install an insulation plate between the appliance and the adjacent heat source.
  • Page 9 Reverse the door swing This appliance has the capability of the door opening from either the left or right side. The unit is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow these instructions.
  • Page 10 5. Remove the lower door hinge from the right side. Remove three screws that are used to fix the bottom grille with the cabinet then install the three screws at the designated position on the right side. 6. Install the lower door hinge to the designated position on the left side. 7.

  • Page 11: Accessory Installation Before Operating 11

    UNPACKING AND CLEANING THE BEVERAGE CENTRE • Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic’s installation instructions. • Let the appliance stand upright for approximately 2 hours before connecting it to the mains supply. This will allow any refrigerant gasses that may have been disturbed during the transportation process to settle.

  • Page 12: Using Your Baumatic Appliance

    Using your Baumatic appliance During first use IMPORTANT: When you use the appliance for the first time or restart the appliance after it has been turned off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the LED display.
  • Page 13 SETTING THE TEMPERATURE It is recommended you install the beverage centre in a place where the ambient temperature is between 19 C-24 C (66 F-75 F). If the ambient temperature is above or below recommended temperatures, the performance of the unit may be affected. •...

  • Page 14: Care And Maintenance

    CARE & MAINTENANCE WARNING: PLEASE ENSURE THAT YOUR APPLIANCE IS DISCONNECTED FROM YOUR MAINS SUPPLY BEFORE ATTEMPTING TO CLEAN IT. o Do not clean the appliance by pouring water onto it or spraying water over it. o The interior of the appliance should be cleaned periodically, using about 2 tablespoons of baking soda to a quart (approx.
  • Page 15 VACATION TIME Short holidays: Leave the appliance in operation for holidays of less than 3 weeks. Long absences: If the appliance will not be used for several months, remove all items, turn off the appliance and unplug the electricity cable. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly by blocking it open if necessary.

  • Page 16: Troubleshooting

    Troubleshooting IMPORTANT: If your beverage centre appears not to be operating properly, before contacting Baumatic Service Care, please refer to the checklist below. POSSIBLE CAUSE / MEASURE PROBLEM Appliance does not operate. Not plugged in. The appliance is turned off.
  • Page 17 - like plinths, or any installation other than the one specified by Baumatic has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

  • Page 18: Warranty Registration Card

    WARRANTY REGISTRATION CARD Congratulations on your new appliance purchase! To d) damage to surface coatings caused by cleaning help care for your investment, be sure to register your or maintenance using products not recommended appliance online. Registration will help you if you need to by the owner’s handbook;...
