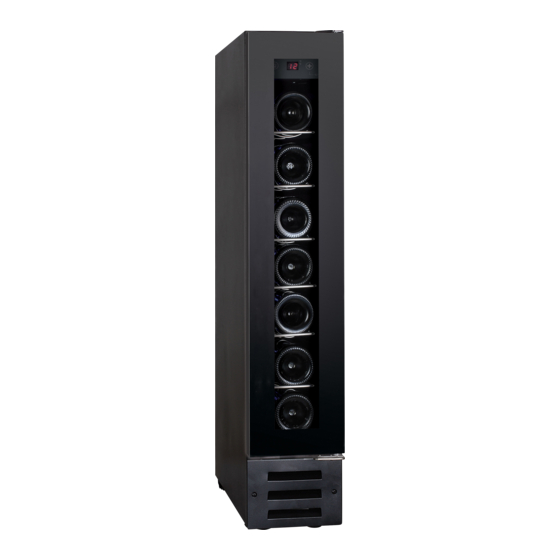

INSTRUCTION MANUAL
Built-under Series
BWC157 BWC319 BWC646 BWC6178
This manual contains important information including safety and
installation instructions of the appliances. Please read it carefully before
use and follow all safety information & instructions. It is recommended
to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
Ver.:1/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Baumatic BWC157
Summary of Contents for Baumatic BWC157
- Page 1 INSTRUCTION MANUAL Built-under Series BWC157 BWC319 BWC646 BWC6178 This manual contains important information including safety and installation instructions of the appliances. Please read it carefully before use and follow all safety information & instructions. It is recommended to keep this manual for easy reference so that you can be familiar with the operation of the appliance.
-
Page 2: Table Of Contents
--CONTENTS-- IMPORTANT SAFETY INFORMATION ����������������������������������������������������1 DESCRIPTION OF APPLIANCE AND INSTALLATION ����������������������������3 22L .................................. 3 58L .................................. 3 145L-Height:87cm ............................ 4 ACCESSORY INSTALLATION BEFORE OPERATING ������������������������������5 UNPACKING AND CLEANING THE WINE COOLER ................5 LOCK & UNLOCK THE DOOR (FOR OPTION) ..................5 OPERATING THE WINE COOLER ������������������������������������������������������������6 WORKING CLIMATE .......................... -
Page 3: Important Safety Information
INSTRUCTION MANUAL • Please removed all packaging, stickers and films from the products surface and clean the product’ s surfaces with a damp cloth and mild deturgent before using for the first time. • Let the appliance stand upright for approximately hours before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation. - Page 4 INSTRUCTION MANUAL • To ensure proper ventilation for the appliance, the front of the unit must be completely unobstructed. Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.). • Do not attempt to repair or replace any part of the appliance unless it is specifically recommended in this manual.
-
Page 5: Description Of Appliance And Installation
INSTRUCTION MANUAL DESCRIPTION OF APPLIANCE AND INSTALLATION The following pictures only show description of appliance. The dimension and shelf quantity may differ among the models of the same series. „ 22L Single Zone Handle Control Panel Outside Canbinet Door Chrome Shelf Gasket Front Louver Adjustable Foot... -
Page 6: 145L-Height:87Cm
INSTRUCTION MANUAL • Height Adjustable: 870-890mm >34¼” (870mm) 34¼” (870mm) 33½” (850mm) 5 ⁄ ” (150mm) „ 145L-Height:87cm Single Zone Handle Control Panel Outside Canbinet Deep Shelf Door Gasket Shallow Shelf Front Louver Adjustable Foot Dual Zone Door Outside Canbinet Control Panel Handle Deep Shelf... -
Page 7: Accessory Installation Before Operating
INSTRUCTION MANUAL • Height Adjustable: 870-890mm ACCESSORY INSTALLATION BEFORE OPERATING „ UNPACKING AND CLEANING THE WINE COOLER • Remove the exterior and interior packing materials. • 24 hours Let the appliance stand upright for approximately before connecting it to the power source, which helps to reduce the possibility of a cooling-system malfunction from handling during transportation. -
Page 8: Operating The Wine Cooler
INSTRUCTION MANUAL ● Insert the key into the lock and turn it counter-clockwise to unlock the door. To lock it, please turn clockwise. Please save the key well. OPERATING THE WINE COOLER „ WORKING CLIMATE • The appliance is designed for operating from SN to N climate (see below climate class chart). -
Page 9: Control Panel
INSTRUCTION MANUAL • To prevent damaging the door gasket, make sure to have the door opened fully all the way before pulling the shelves out. • Please store wine in sealed bottles. • Do not cover the shelves with aluminum foil or any other shelf material which may prevent air circulation. -
Page 10: Power On/Off Control
INSTRUCTION MANUAL • For Dual Zone Upper Zone Temp.Up Lock / Unlock Display Window Temp.Down Power Lighting ºC/ºF Bottom Zone Zone Select Interchange Display Window „ POWER ON/OFF CONTROL • When the appliance is plugged in to a power outlet, it powers on automatically. •... -
Page 11: Temperature Setting
INSTRUCTION MANUAL will change to be the real temperature of the inside cabinet after 10 seconds without being touched. • When the temperature probe is out of order, the display window will show with “HH” or “LL” instead of a digital figure while continuous buzz sound will be heard. In case of this happens, this appliance is considerately designed to keep periodical running of compressor and fans which helps to keep the coldness of the inside cabinet to protect your stored wines. -
Page 12: Selecting Fahrenheit(ºf) & Celsius (ºc) Display
INSTRUCTION MANUAL „ SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY For Single Zone Touch the marks with 2 fingers at the same time and hold for 5 seconds, you can interchange the Fahrenheit and Celsius display. For Dual Zone Directly touch the mark , you can interchange the Fahrenheit and Celsius display for both zones at the same time. -
Page 13: Troubleshooting
INSTRUCTION MANUAL • Ensure that the unit is adequately ventilated. Never cover air vents. • Only open the door when necessary. Avoid leaving the door open for long periods or opening/closing the door frequently. TROUBLESHOOTING If you feel the appliance is not working properly, follow these instructions to try to see if you can solve the problem simply by yourself before calling for service. -
Page 14: Reverse The Door Swing
INSTRUCTION MANUAL REVERSE THE DOOR SWING Note: Door Reversal is NOT available for a unit with Control Panel on Door. The following operation is only for a unit with Control Panel inside the cabinet. „ For 22L/58L/145L Remarks: • The instruction is based on a unit with Right Hinge installed already. To reverse the door from right hinge to left hinge, you need to get ready 2 new spare parts: an Upper Left Hinge, and a Bottom Left Hinge. - Page 15 INSTRUCTION MANUAL Unscrew the Upper Right Hinge and Bottom Right Hinge from the cabinet. Keep them well for door re-installation. Upper Right Hinge Bottom Right Hinge Pull out the 6 Plastic Caps at the front left corner of the cabinet. And move them all to the right side.
- Page 16 INSTRUCTION MANUAL 6. Loose the 2 screws with a cross screwdriver.Keep these screws and the handle well on one side for using later. Screws(x2) Door Handle Turn the door by 180 (upside down) . Insert the Pivot Hinge into the bottom hinge hole of the door. Pivot Hinge .14.
- Page 17 INSTRUCTION MANUAL . Install the door to the left hinge side by tightening the Pivot Hinge with the 2 screws. Bottom Left Hinge Pivot Hinge Screws (2pcs) 10. To reinstall the handle to the left top of door frame. Screws(x2) Door Handle --END--...
