or
Note:

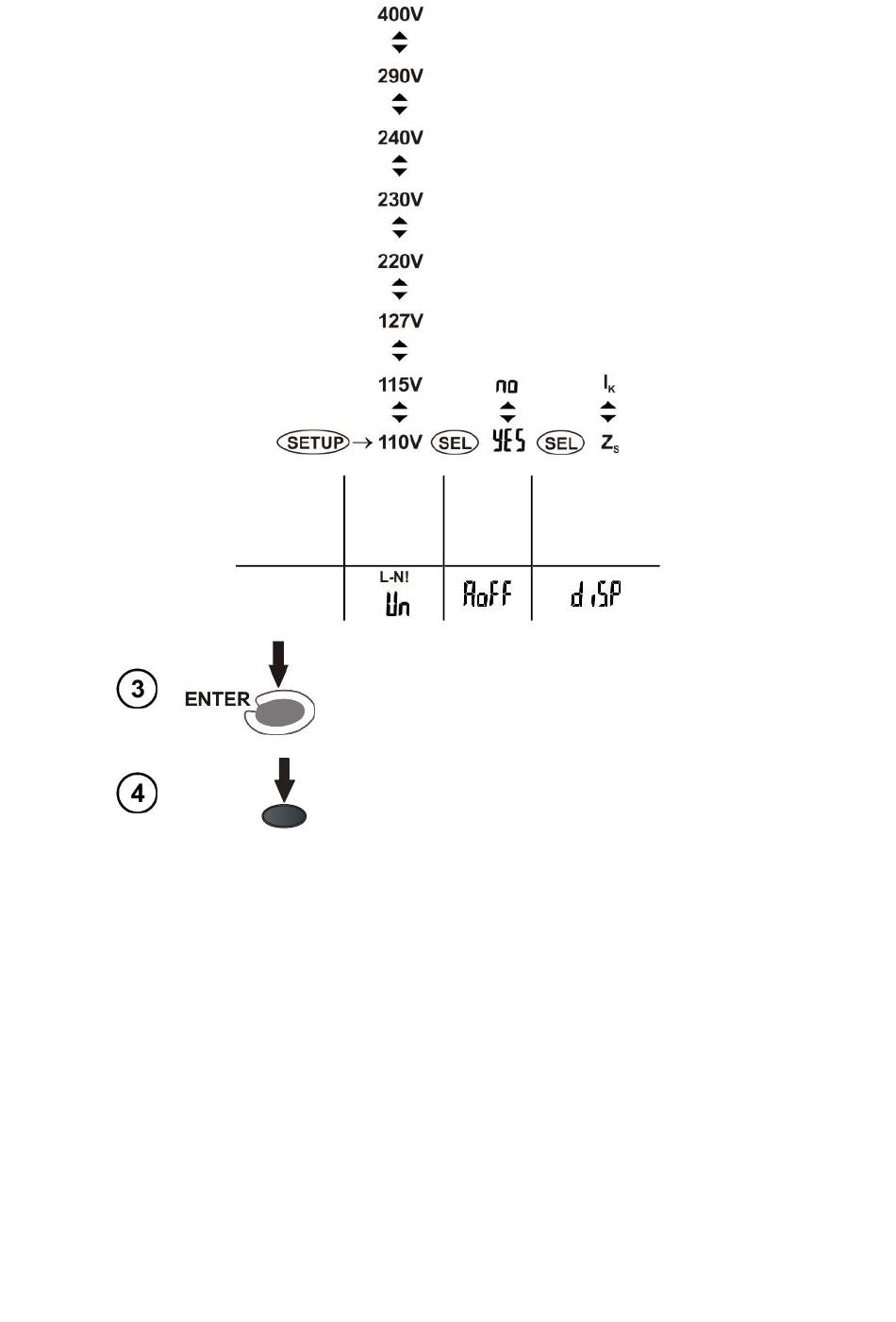

- Before the first measurements, select the mains rated voltage U
220/380V, 230/400V, 240/415V, 290/500V or 400/690V) used in the area where measurements are
made. This voltage value is used for calculating the values of prospective short-circuit current.
- After switching the gauge on and displaying a software version, a current nominal voltage of the
network is shown: in the main field – the phase voltage, in the auxiliary field – the inter-phase voltage.
2.2

Remembering the last measurement result

Result of the latest measurement is remembered by the meter until a next measurement is
started or measurement settings are changed or the measuring function is changed by means of the
rotary switch or the meter is switched off. When you go to the voltage measurement screen with the
ESC button, you can recall this result by pressing ENTER. Use the same button to recall the last
result after powering the meter off and on (if the position of function selector has not been changed)
Mains
Parameter
voltage
Symbol(s)
Press ENTER to validate the last change and go
to the measurement function.
Press ESC to go the measurement function without
validating the last change.
ESC
OPERATING MANUAL MZC-305 version 1.08
Main result of
Auto- fault loop
OFF impedance
measurement
(110/190V, 115/200V, 127/220V,
n
