Venti-Scan iV RadioaeRoSol
conVenience Kit
operation manual
177-091
177-092
B
IODEX
Biodex Medical Systems, Inc.
20 Ramsey Road, Shirley, New Y ork, 11967-4704
Tel: 800-224-6339 (Int'l 631-924-9000),
Fax: 631-924-9241 Email: info@biodex.com, www.biodex.com
FN: 06-149 Rev G 4/19
Advertisement
Table of Contents
Related Manuals for biodex Venti-Scan IV
Summary of Contents for biodex Venti-Scan IV
- Page 1 Venti-Scan iV RadioaeRoSol conVenience Kit operation manual 177-091 177-092 IODEX Biodex Medical Systems, Inc. 20 Ramsey Road, Shirley, New Y ork, 11967-4704 Tel: 800-224-6339 (Int’l 631-924-9000), Fax: 631-924-9241 Email: info@biodex.com, www.biodex.com FN: 06-149 Rev G 4/19...

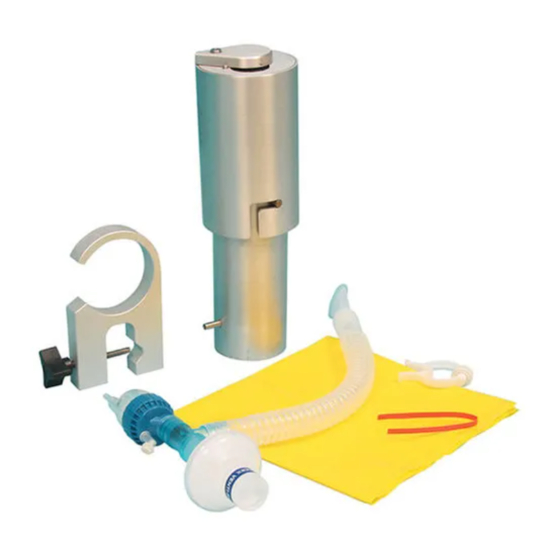

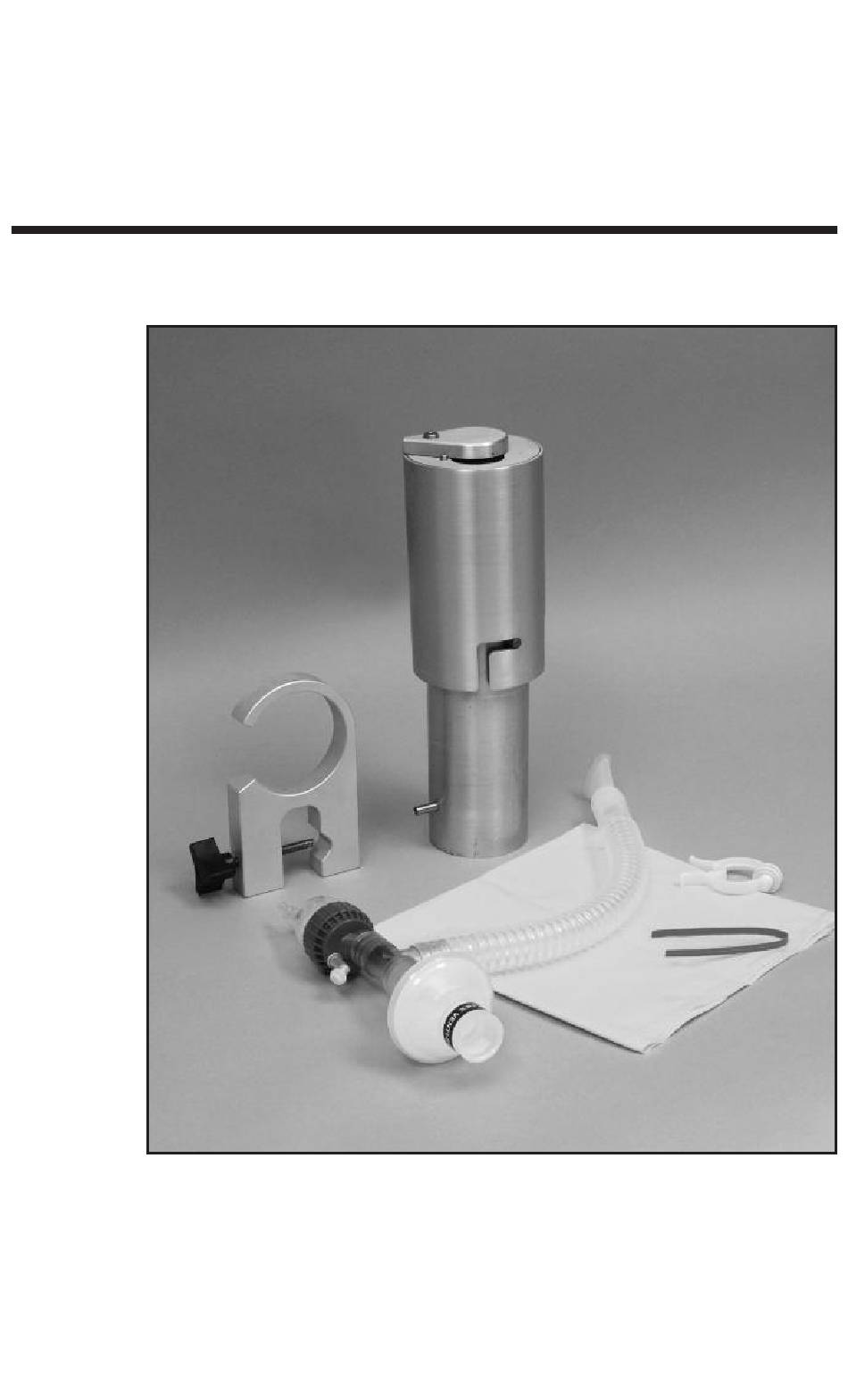

- Page 2 This increases surface area and provides virtually resistance free breathing with exceptional trapping capacity. Used in conjunction with the Venti-Scan IV Shielded Canister (#177-090), the Venti-Scan IV Kit provides superior film studies and lead-shielded protection from top to bottom.
- Page 3 10-11 liters per minute. Confirm that the patient is ready to begin the procedure. Connect the other end of the O tubing to the Venti-Scan IV inlet tube to start the aerosol delivery procedure. INSTRUCT THE PATIENT TO CONTINUE BREATHING ON THE SYSTEM FOR THREE TO FIVE MINUTES TO ENSURE SUFFICIENT LUNG DEPOSITION.
- Page 4 13. Remove the shield top and then remove the disposable kit by tilting the shield over and pressing the button on the bottom of the canister. You may have to press hard on the release button the first time you use the canister.
- Page 5 SOMe tiPS FOR OPtiMuM SCAnS equiPMent • If using a tank, replace unit if the remaining pressure drops to 25% of the air/O in the tank. • If you use wall oxygen, have maintenance check pressure at the wall inlet to ensure you are getting the 30 to 55 psi needed for good particle spallation, (approximately one micron MDD).
- Page 6 • Always inject Tc-99m DTPA before turning on air/oxygen pressure. If not, excessive DTPA can find its way to the bottom of nebulizer, making for an inefficient vent. • Patients must breathe as deeply as possible for approximately five minutes. •...
- Page 7 - If you don’t have a geiger counter, vent for five minutes and scan. - If your final perfusion count rate was 1000 cps, you should be getting 1250 to 1500 cps after venting. By this method you know the air sac side of the lungs received activity.
- Page 8 IODEX Biodex Medical Systems, Inc. M A D E I N 20 Ramsey Road, Shirley, New Y ork, 11967-4704 Tel: 800-224-6339 (Int’l 631-924-9000), U . S . A . Fax: 631-924-9241 Email: info@biodex.com, www.biodex.com...
