2.2 Operator Controls

2.2 Operator Controls
The on/off button and on/off switch(es) do not disconnect the power from the PC!
Note
Data may be lost when the PC performs a hardware reset.
Operator control element
6
WARNING

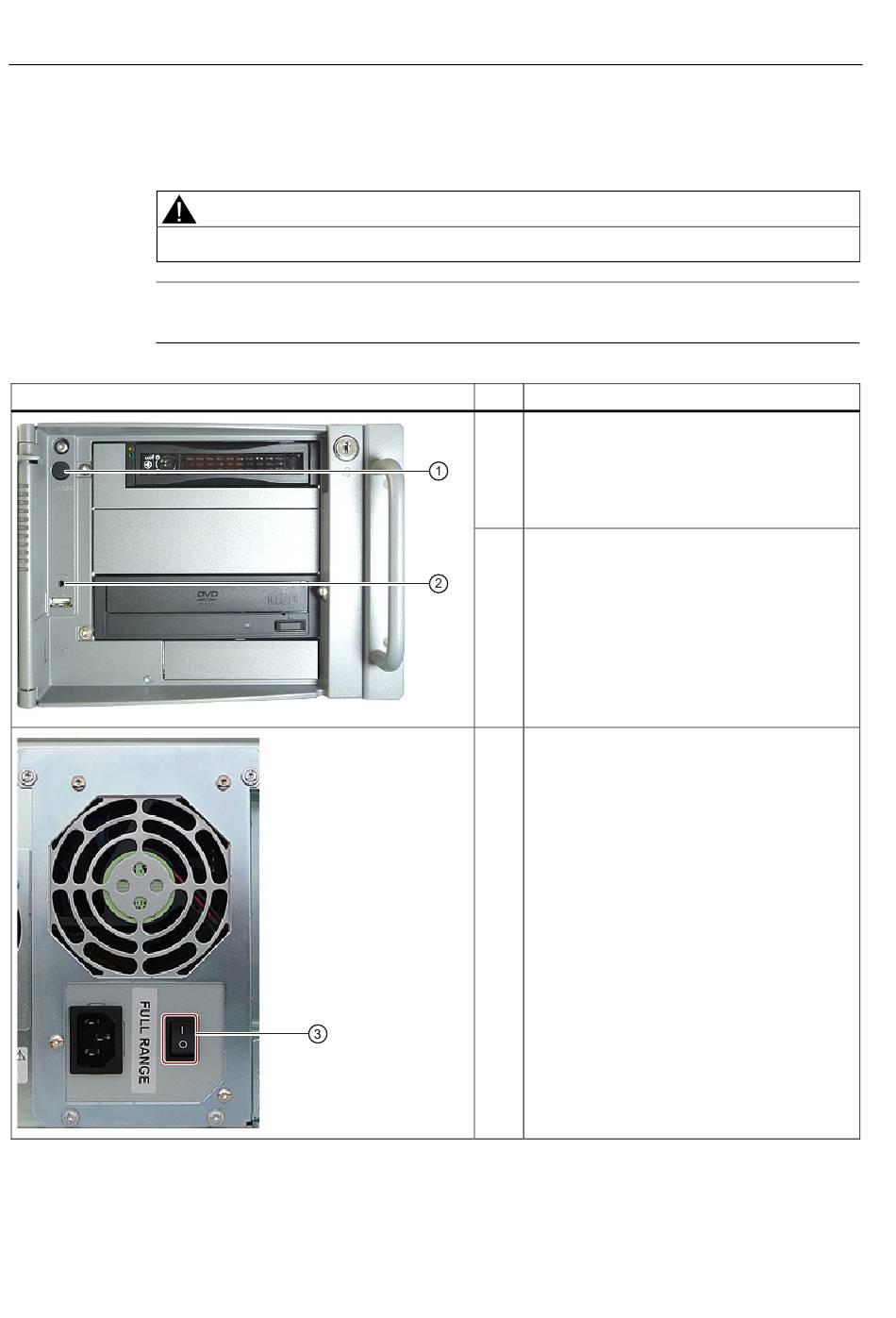

Item Description
①
On/off button
Used to switch the device on or off.
Note: The device rear has one or 2 line side
③
switches . These have to be switched on so
that the on/off button at the front functions.
②
Reset button
The reset button can be operated using a
pointed object or a paper clip, for example. The
button signal triggers a hardware reset. The PC
performs a restart (cold start).
③
On/Off switch
(simple power supply)
Used to connect the device to the mains.
Depending on the "After Power Failure" BIOS
setting, the PC may turn on automatically.
Otherwise, you may have to operate the on/off
①
button on the front.
