Description; External Structure - Siemens SIMATIC IPC847C Getting Started

Description

2.1

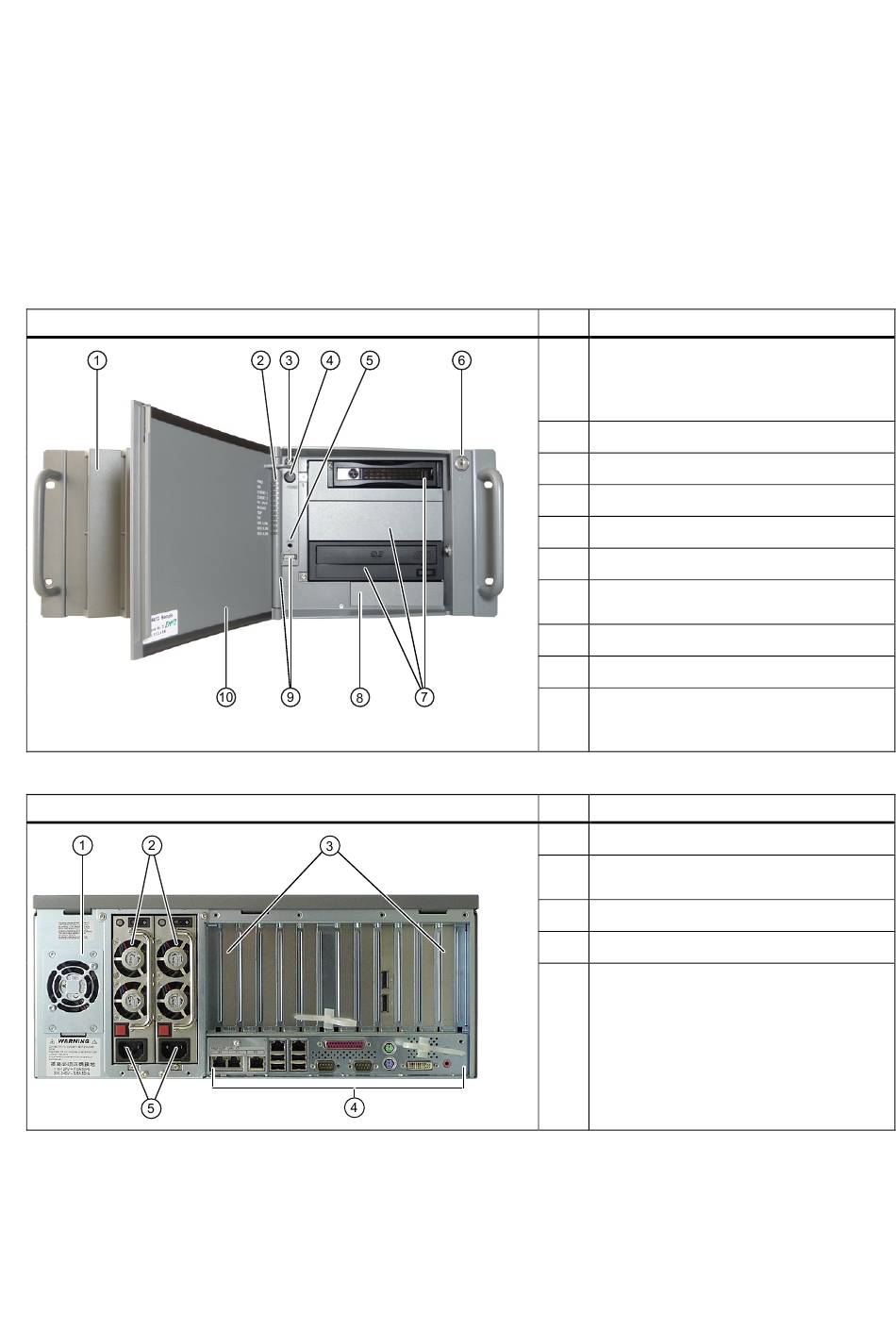

External structure

Front view of the device (example)
Rear view of the device (example)
SIMATIC IPC847C
Getting Started, 06/2011, A5E02669190-03
Item Description
①
Front panel with vent openings (filter mat
and fan behind the front panel). Check
the filter mat regularly for soiling and, if
appropriate, replace it.
②
Status displays
③ Cover screws
④
On/off button
⑤
Reset button
⑥ Lock
⑦
Features for the installation of DVD ROM
drives, DVD burners and removable racks
⑧
Installation option for 3.5" drive
⑨
2 x USB interface
⑩
Lockable front door for access security.
Keep the front door closed during normal
operation.
Item Description
①
Rear drive cooling fan
②
Modules of the redundant power supply
(optional)
③
Expansion slots
④
Connection elements
⑤
Mains connection of the redundant power
supply modules
