Siemens SIMATIC IPC847C Getting Started page 8

Description
2.3 Connecting elements

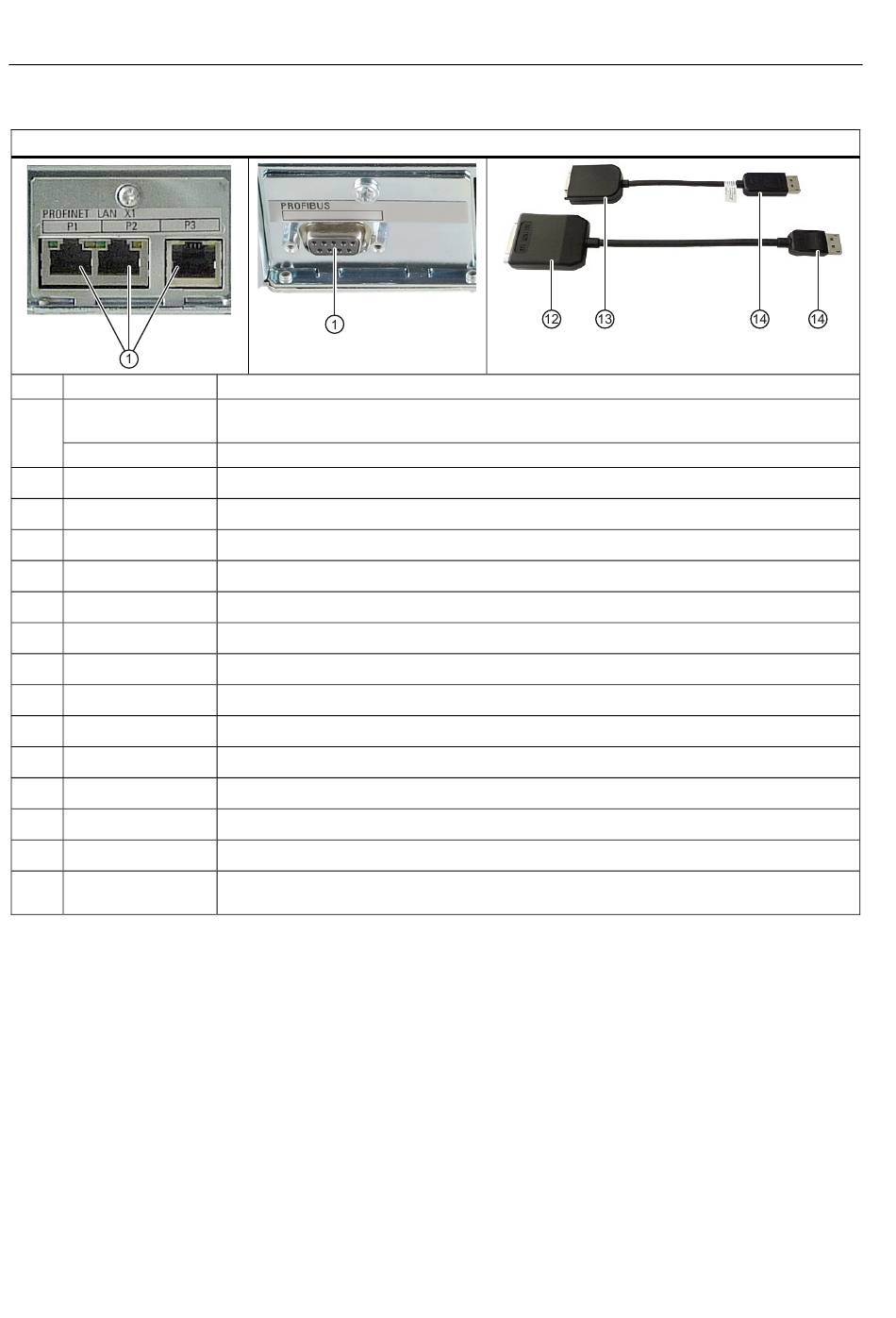

Layout of the interfaces on the rear of the device
Item Designation
①
PROFIBUS/MPI
PROFINET
②
USB
③
ETHERNET 1, 2 *
④
COM
⑤ LPT
⑥
DP
⑦
KEYBOARD
⑧
MOUSE
⑨
DVI-I
⑩
Audio (input)
⑪
Audio (output)
⑫
DVI-D
⑬
VGA
⑭
DP
⑮
Connecting
potentials
*
8
Description
PROFIBUS interface (RS 485, electrically isolated), 9-pin D-sub socket (optional product
characteristic)
CP-1616 onboard interface, three RJ45 sockets (optional product version)
Connection for USB devices, USB Port 1 to 4
2 x RJ45 connectors, Ethernet 10/100/1000 Mbps (ETHERNET 1 is AMT-capable)
Serial interface (V.24), 9-pin sub D plug
Parallel interface, 25-pin
2 x display port, DP connection of Dual Head graphics card (optional)
Connection for a PS/2 keyboard
Connection for a PS/2 mouse
DVI/VGA port for CRT or LCD monitor with DVI interface, VGA via DVI/VGA adapter
Connection for analog audio source, microphone, 3.5 mm phono jack
Connection for active speakers or headset, 3.5 mm phono jack
DVI-D connection of the DP adapter
VGA connection of the DP adapter
Display port connection of the DP adapter at Dual Head graphics card (optional)
Connection for equipotential bonding
For unique labeling, the LAN interfaces are numbered on the enclosure. The
numbering by the operating system may deviate from this.
