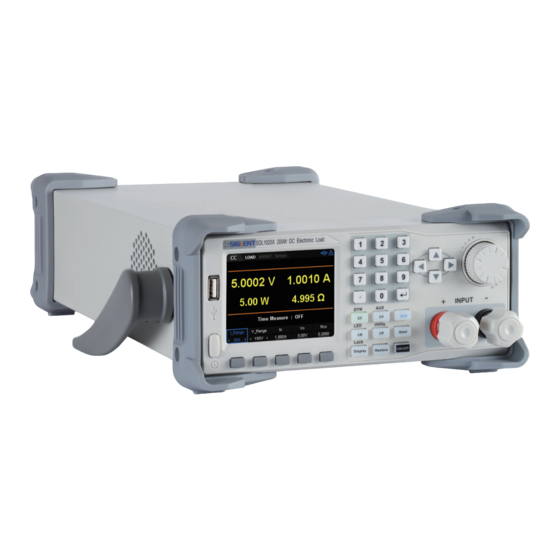

Summary of Contents for SIGLENT SDL1000X
-
Page 1: Quick Start

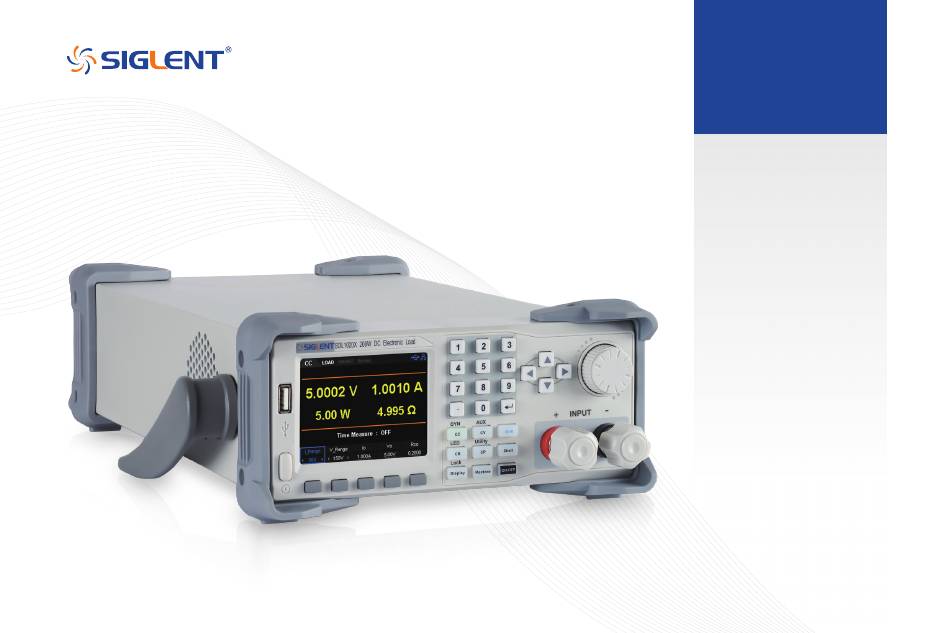

SDL1000X Programmable DC Electronic Load Quick Start... -
Page 2: Copyright And Statement
SIGLENT reserves the rights to change the specification and price. Information in this publication replaces all previous corresponding published material. Contents in this manual are not allowed to be copied, extracted or translated in any form or by any means without SIGLENT’s permission. SDL1000X Quick Start-I... -
Page 3: General Safety Summary
Make certain that the instrument is properly grounded. Keep surface of the product clean and dry To avoid dust or moisture in the air influence the performance of the instrument, please keep surface of the product clean and dry. II-SDL1000X Quick Start... -
Page 4: Safety Terms And Symbols
WARNING: Indicates potential injury or hazard that may happen. CAUTION: Indicates potential damage to the instrument or other property that may happen. Symbols may appear on the product: Hazardous Protective Warning Earth Power Voltage Earth Ground Ground Switch SDL1000X Quick Start-III... -
Page 5: Sdl1000X Brief Introduction
150 V/30 A @ 200 W. The SDL1030X/ SDL1030X-E comes • Measuring speed of voltage and current: up to 500 KHz with an input range of 150 V/30 A @ 300 W. The SDL1000X series leads • List can edit one hundred steps; Program support programing fifty group with measurement resolution of 0.1mV/0.1mA and the base SDL1000X-E... -
Page 6: Table Of Contents
Contents Copyright and Statement................General Safety Summary................Safety Terms and Symbols................ SDL1000X Brief Introduction..............Start Guide General Inspection..................The Front Panel................... The Rear Panel.................... Connecting power..................User interface....................To Power on the instrument............... Fuse Replacement..................Troubleshooting..................Contact SIGLENT..................SDL1000X Quick Start-1... -
Page 7: Start Guide
The consigner or carrier will be responsible for damages to the instrument resulting from shipment. SIGLENT would not provide free maintenance or replacement. 2. Inspect the instrument. - Page 8 Turns the instrument On or Off. 7. Function key Press the button to enter Restore function. Used to select different interface functions. Press the button to allow a button’s secondary function to be selected. Press down the button to enter Restore function. SDL1000X Quick Start-3...
-
Page 9: The Rear Panel
AC power socket Fuse AC line power selection switch LAN interface USB device RS232 interface Analog current monitor output Analog voltage monitor output Sense terminal, External control terminal, PWM output terminal Figure1: The front panel of the SDL1000X 4-SDL1000X Quick Start... - Page 10 USB storage device or external computer). 8. RS232 interface Connect to the computer via 9-pin RS232 cable. 9. Analog current monitor output User can observe the DUT output current level by connecting to an oscilloscope to monitor the current level. SDL1000X Quick Start-5...
-
Page 11: Connecting Power
Connect Power The SDL1000X load supports a variety of AC line power input values. For 4. Connect the power each line voltage, the rear panel voltage selector settings are to be set Connect the instrument to the AC power source using the power cord according to the table below: provided in the accessories. -
Page 12: User Interface
6. USB connection icon 7. Keyboard lock 8. Setting value 9. Measured output values 10. Voltage slew rate Figure 3: The user interface of SDL1000X 1. Displays the load’smode 2. Displays the load’s state 3. Displays a Short state 4. Remote sense mode... -
Page 13: To Power On The Instrument
2. Insert a small straight screwdriver into the slot at the power socket and information will be displayed. If this does occur please contact SIGLENT. gently pry out the fuse seat. -
Page 14: Troubleshooting
Trouble Shooting The following are some common failures and their solutions. If the problem persists after following the listed steps, please contact SIGLENT. 1. The instrument cannot power up. (1) Check whether the power source is correctly connected. (2) Check whether the power switch at the front panel is on. -
Page 15: Contact Siglent
Contact SIGLENT America SIGLENT TECHNOLOGIES AMERICA, INC 6557 Cochran Rd Solon, Ohio 44139 Tel: 440-398-5800 Toll Free:877-515-5551 Fax: 440-399-1211 info@siglent.com www.siglentamerica.com Headquarters SIGLENT TECHNOLOGIES CO., LTD. Blog No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao’an District, Shenzhen, 518101, China. - Page 16 www.siglent.com...
