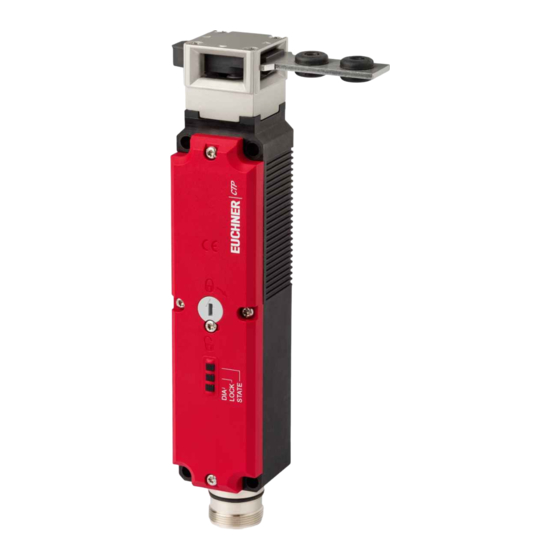

- Page 1 Operating Instructions Transponder-Coded Safety Switch With Guard Locking For Process Protection CTP-I.-AS Unicode/Multicode...
-
Page 2: Table Of Contents
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS Contents About this document ..................... 4 1.1. Scope ............................4 1.2. Target group ..........................4 1.3. Key to symbols ..........................4 1.4. Supplementary documents ......................4 Correct use ......................5 Description of the safety function ................6 Exclusion of liability and warranty ................. 6 General safety precautions ................... - Page 3 Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS Setup ......................... 16 11.1. LED displays ..........................16 11.2. Teach-in function for actuator (only for unicode evaluation) ...............16 11.2.1. Actuator teach-in ......................16 11.3. Functional check ...........................17 11.3.1. Mechanical function test ....................17 11.3.2. Electrical function test ....................17 System status table ....................
-
Page 4: About This Document
1. About this document 1.1. Scope These operating instructions are valid for all CTP-I.-AS… from version V1.0.0. These operating instructions, the document Safety information and any enclosed data sheet form the complete user information for your device. 1.2. Target group Design engineers and installation planners for safety devices on machines, as well as setup and servicing staff possessing special expertise in handling safety components. -
Page 5: Correct Use
Ì EN 60204-1 The safety switch is allowed to be operated only in conjunction with the intended EUCHNER actuator and the related connec- tion components from EUCHNER. On the use of different actuators or other connection components, EUCHNER provides no warranty for safe function. -
Page 6: Description Of The Safety Function
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 3. Description of the safety function Devices from this series feature the following safety functions: Monitoring of the guard position (interlocking device according to EN ISO 14119) Ì Safety function (see chapter 6.3. Switching states on page 8): - When the guard is open, no valid code sequence is sent (monitoring of the door position). -
Page 7: Function
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 6. Function The device monitors the position of movable guards. Transponder-coded actuator The system consists of the following components: coded actuator (transponder) and switch. Whether the device learns the complete actuator code (unicode) or not (multi- code) depends on the respective version. -
Page 8: Guard Locking On Version Ctp-I2
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 6.2. Guard locking on version CTP-I2 (guard locking actuated by power-ON and released by spring force) Activating guard locking: Apply auxiliary power to the solenoid and set AS-Interface output bit D0. Releasing guard locking: No auxiliary power at the solenoid and/or clear AS-Interface output bit D0. -
Page 9: Manual Release
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 7. Manual release Some situations require the guard locking to be released manually (e.g. malfunctions or an emergency). A function test must be performed after release. More information on this topic can be found in the standard EN ISO 14119:2013, section 5.7.5.1. The device can feature the following release functions: 7.1. -
Page 10: Actuating Auxiliary Key Release
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 7.1.2. Actuating auxiliary key release On devices with auxiliary key release (can be retrofitted), simply turn the key to release. Function as for auxiliary release. For mounting, see the auxiliary key release supplement. 7.2. -
Page 11: Escape Release (Optional)
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 7.3. Escape release (optional) Permits opening of a locked guard from the danger zone without tools (see chapter 13.2. Dimension drawing for safety switch CTP… on page 20). Important! Ì It must be possible to actuate the escape release manually from in- side the protected area without tools. -
Page 12: Changing The Approach Direction
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 8. Changing the approach direction The approach direction needs to be changed only if the switch is to be approached from the rear. Proceed as follows: 1. Remove the screws from the safety switch. -
Page 13: Mounting
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 9. Mounting CAUTION Safety switches must not be bypassed (bridging of contacts), turned away, removed or otherwise rendered ineffective. Ì Observe EN ISO 14119:2013, section 7, for information about reducing the possibilities for by- passing an interlocking device. -
Page 14: Electrical Connection
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 10. Electrical connection View of safety switch plug connector 1 AS-Interface + 2 Auxiliary voltage 0 V 3 AS-Interface - 4 Auxiliary voltage 24 V Figure 3: Terminal assignment, AS-Interface M12 plug connector 10.1. -
Page 15: Dual-Channel Positively Driven
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 10.3.2. Dual-channel positively driven The safety switch is configured in the AS-Interface safety monitor with the AS-Interface address set as follows, Cat. for example: Ì Dual-channel positively driven Ì With or without start-up test 10.4. -
Page 16: Setup
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 11. Setup 11.1. LED displays You will find a detailed description of the signal functions in chapter 12. System status table on page 18. Color green/red STATE green LOCK/DIA yellow/red STATE LOCK/DIA 11.2. Teach-in function for actuator (only for unicode evaluation) The actuator must be allocated to the safety switch using a teach-in function before the system forms a functional unit. -
Page 17: Functional Check
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 11.3. Functional check WARNING Danger of fatal injury as a result of faults in installation and functional check. Ì Before carrying out the functional check, make sure that there are no persons in the danger zone. -
Page 18: System Status Table
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 12. System status table The dual LOCK/DIA LED displays the colors red and yellow. Depending on the state, both colors can flash alternately. LED indicator Output Operating mode State closed Normal operation, door closed and locked... -
Page 19: Technical Data
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 13. Technical data NOTICE If a data sheet is included with the product, the information on the data sheet applies. 13.1. Technical data for safety switch CTP-AS Parameter Value Unit min. typ. max. General... -
Page 20: Dimension Drawing For Safety Switch Ctp
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 13.2. Dimension drawing for safety switch CTP… Version with plug connector M12 With escape release The actuator shaft for the escape release can be extended using exten- sions (max. 94 mm) ≈ 5 Basic position for escape release ∅... - Page 21 Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS With auxiliary key release With auxiliary release max. 50 With emergency release With wire front release 21,5 32,4 2543028-02-01/21 (Translation of the original operating instructions)
-
Page 22: Technical Data For Actuator Ctp
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 13.3. Technical data for actuator CTP-... Parameter Value Unit min. typ. max. Housing material Fiber reinforced plastic Weight 0.03 … 0.06 (depending on version) Ambient temperature °C Degree of protection IP67/IP69/IP69K Mechanical life 1 x 10 Locking force, max. - Page 23 Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS Dimension drawing Min. door radius [mm] Order no./item 37,5 122667 A-C-H-W-SST-122667 12,45 A-A 1 : 2 37,2 122668 A-C-H-W-SST-122668 5,25 2543028-02-01/21 (Translation of the original operating instructions)
- Page 24 Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS Dimension drawing Min. door radius [mm] Order no./item 3,25 122671 A-C-H-RL-LS-122671 max. 28 X = 53 mm (122671, 122672) X = 49 mm (122669, 122670) 122672 A-C-H-RR-LS-122672 122675 A-C-H-RO-LS-122675 max. 28 X = 41 mm (122673, 122674)
-
Page 25: Ordering Information And Accessories
14. Ordering information and accessories Tip! Suitable accessories, e.g. cables or assembly material, can be found at www.euchner.com. To order, enter the order number of your item in the search box and open the item view. Accessories that can be combined with the item are listed in Accessories. -
Page 26: Declaration Of Conformity
Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 17. Declaration of conformity (Translation of the original operating instructions) 2543028-02-01/21... - Page 27 Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS 2543028-02-01/21 (Translation of the original operating instructions)
- Page 28 Edition: 2543028-02-01/21 Title: Operating Instructions Transponder-Coded Safety Switch CTP-I.-AS (Translation of the original operating instructions) Copyright: © EUCHNER GmbH + Co. KG, 01/2021 Subject to technical modifications; no responsibility is accept- ed for the accuracy of this information.
