J+J J4C S20 Quick Start Manual page 3

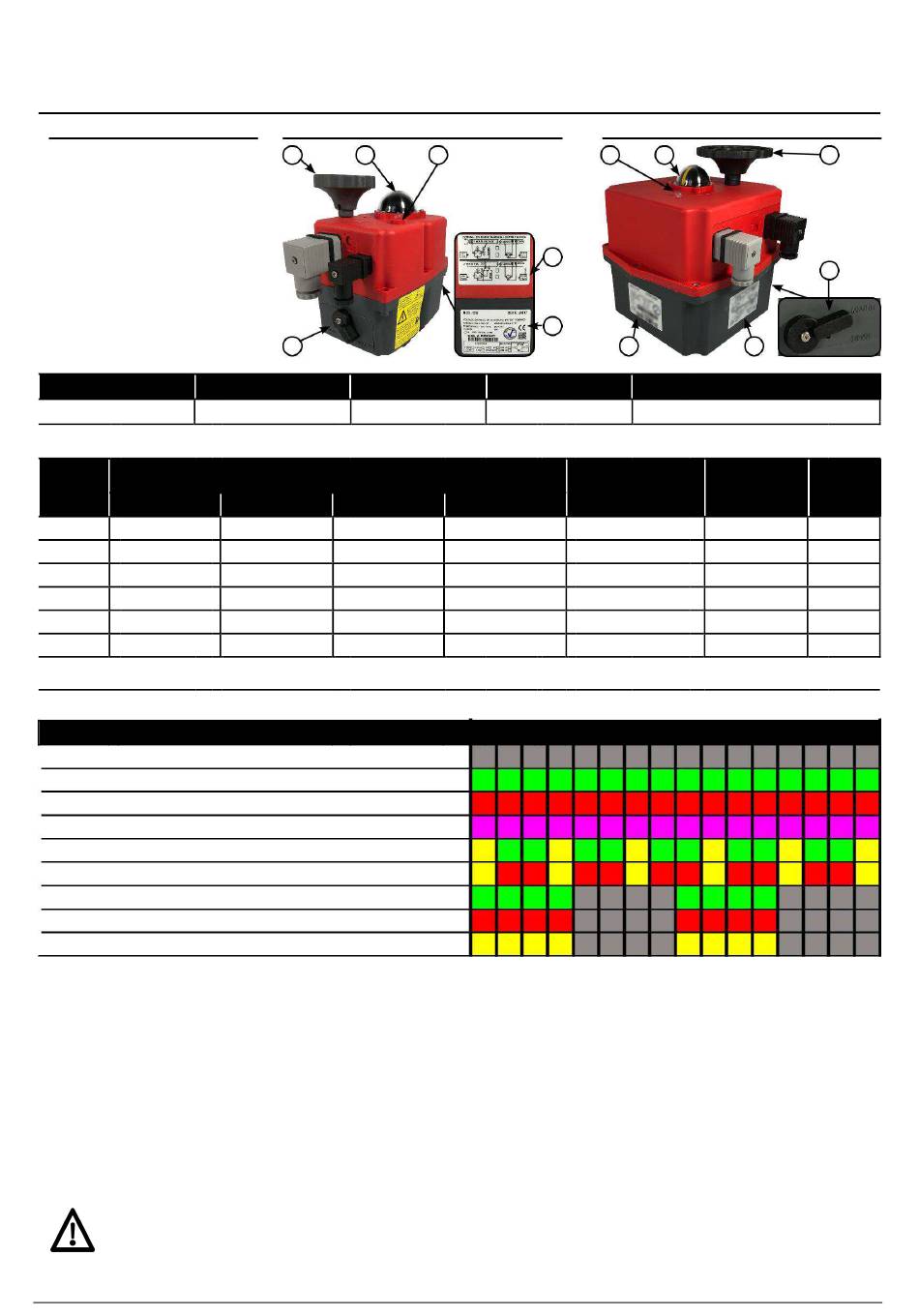

Overview
Version:
A Manual Override Switch
B Handwheel
C Dome indicator
D Status LED
E Wiring Diagram
F Nameplate
Model Comparison:
Duty
Rating= 75%
Model Specific:
Modell 24V AC
S 20 1.3A / 30.7W
S 35 1.7A / 40.2W
S 55 2.0A / 47.5W
S 85 1.5A / 36.0W
S140 3.3A / 79.2W
S300 3.3A / 79.2W
Operation
Status Light (D)
Operating Status
No power supply
Unit is in open position
Unit is in closed position
Unit is in stop position
Unit is moving to open position
Unit is moving to closed position
Torque protection stopped move to open
Torque protection stopped move to closed
Manual Override Engaged
Manual override (A/B)
All J4C models have a manual emergency override for manual operation in the event of a power failure. To activate the
manual override, the "AUTO-MAN" switch (A) must set to "MAN", this declutches the engine from the transmission.
Once in manual you can turn the drive with the handwheel (B).
After about four times the expected actuation time, the engine is automatically stopped by the electronics.
If the drive is to be put back into autonomous operation, switch the switch (A) back to the "AUTO" position and the motor will be
coupled again.
If the motor has switched off automatically, it can be reactivated either by driving in the other direction or by power cycling
the device.
The change-over switch must not be over-tightened.
If the switching is difficult, the gear can be synchronized by means of a handwheel. The screw of the
switch must never be loosened!
actuatedvalvesupplies.com
Quick Start Guide J4C S20-S300
20-35-55-85
B C
A
Operating Temp. Heater Power
-20°C - +70°C
Current consumption at max. torque
24V DC 110V AC
1.0A / 23.4W 0.3A / 32.7W
1.4A / 32.8W 0.4A / 41.9W
1.6A / 39.0W 0.4A / 47.0W
1.2A / 29.3W 0.3A / 36.5W
2.5A / 60.7W 0.7A / 78.7W
2.7A / 64.7W 0.8A / 84.7W
D
E
F
Ingress (IEC60529)
3.5 W IP67
230V AC
0.2A / 46W
0.2A / 46W
0.2A / 46W
0.2A / 46W
0.4A / 105.6W
0.5A / 113.5W
-PAGE 3-
Actuated Valves Supplies Ltd
140-300
D C
F
2x End of Travel Sw.
SPST NO 5A 125VAC / 3A 250VAC
Optional 0,1A 30VDC (See Page 1)
Runtime
Working / Without Load
Break Torque s/90° ±10%
20Nm / 25Nm 10s (5.5s)
35Nm / 38Nm 10s
55Nm / 60Nm 13s
85Nm / 90Nm 29s
140Nm / 170Nm 25s
300Nm / 350Nm 48s
LED Flash Sequence
Tel: +44(0)3300535750
B
A
E
Weight
1.8kg
1.9kg
2.4kg
3.0kg
5.2kg
5.2kg
